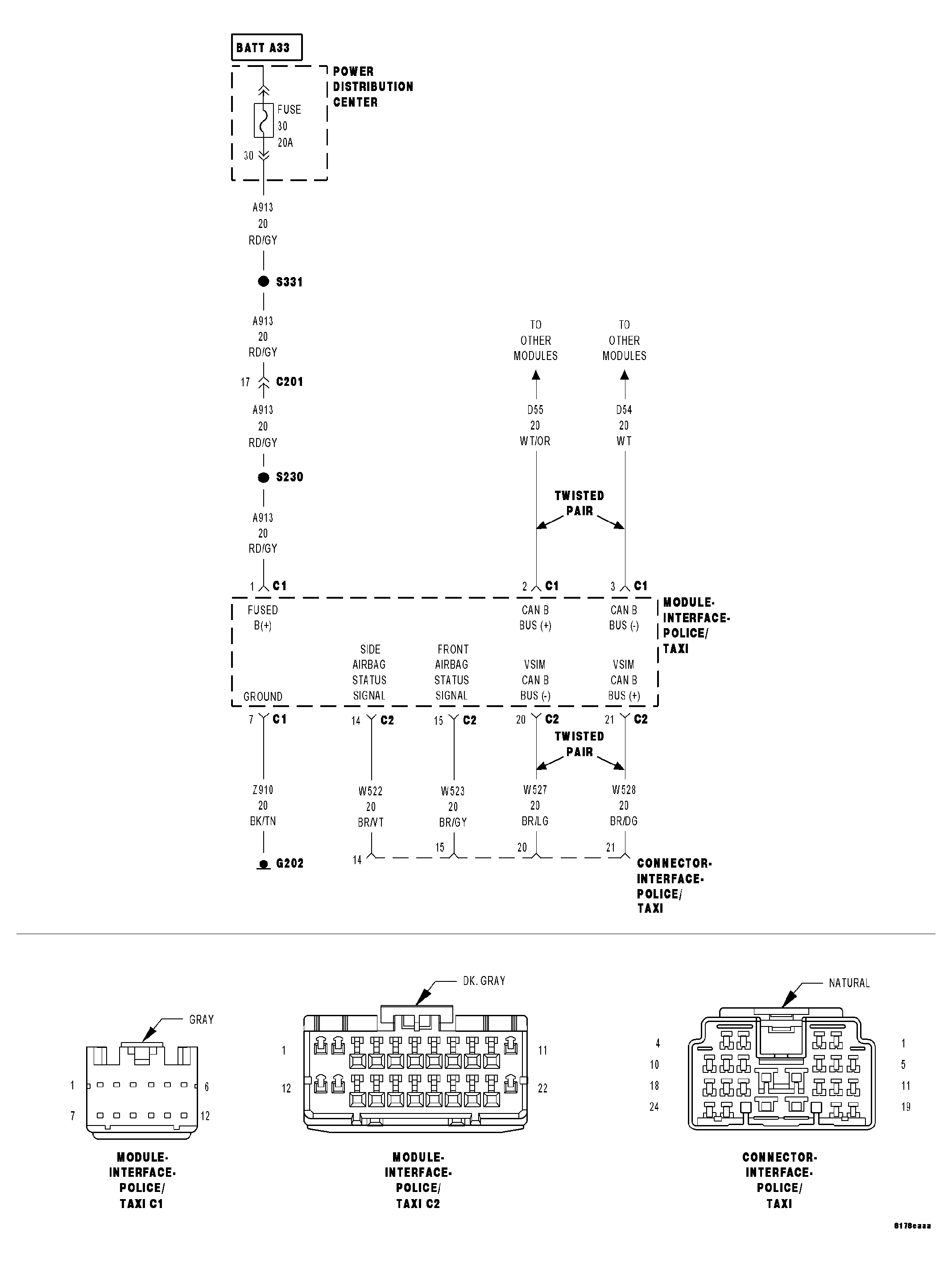

Home >> Dodge and Ram >> 2006 >> Magnum SXT, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Message Center - Electrical Diagnostics >> Message Center - Electrical Diagnostics >> DTC Troubleshooting >> B1CC2 - Deployment Notification Output Circuit High >> Circuit Schematic
