Instrument Panel Steering Column Cover: Removal
WARNING:
Follow all Warnings for airbag component service (Refer to RESTRAINTS
).

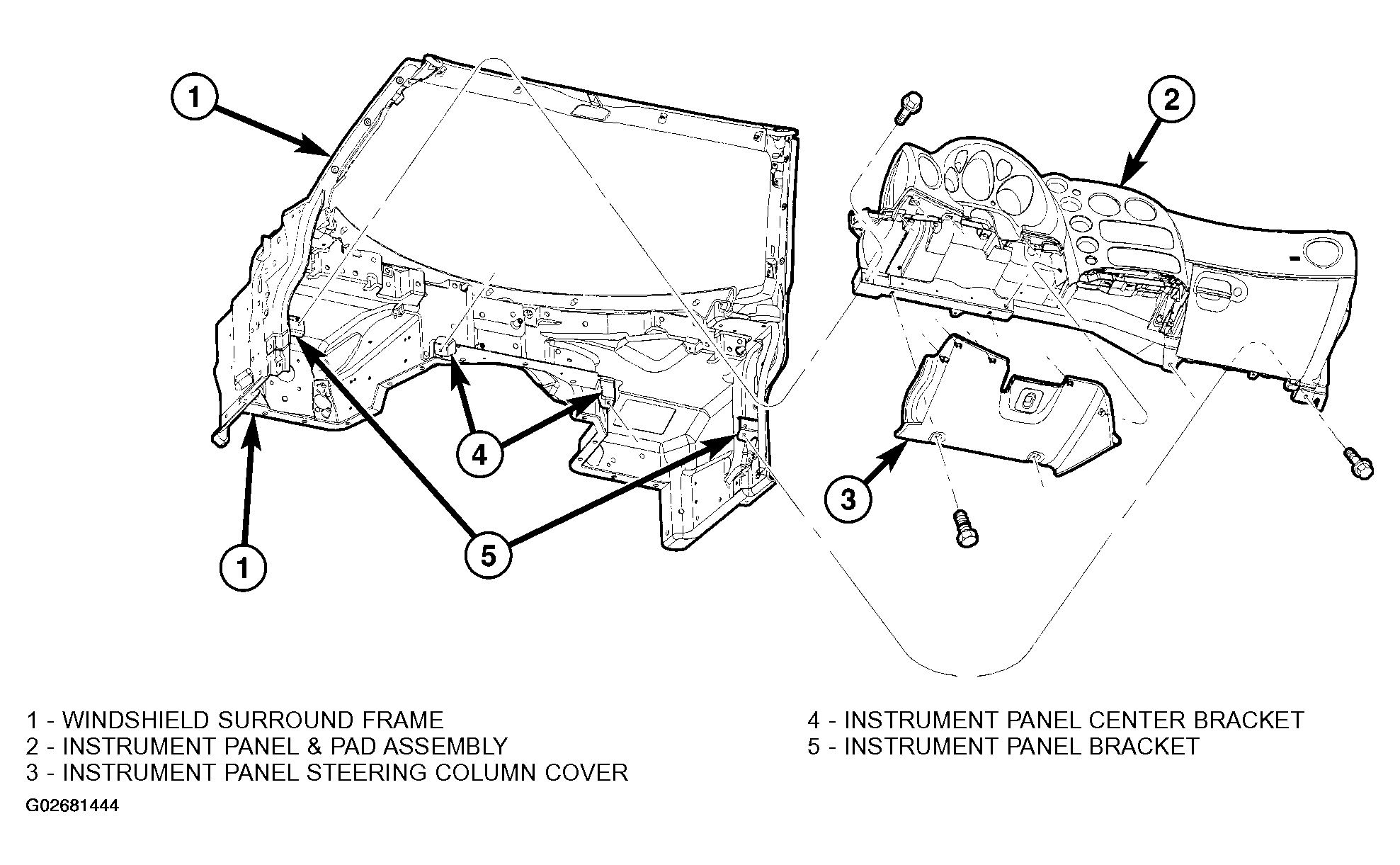

- Remove the two lower screws. (Fig 1 ).
- Using a trim stick C-4755 or equivalent, separate the upper clips.
- Roll the left side of the cover down and separate the clip on the right side at the tunnel.
- Disconnect the adjustable pedal switch electrical connector and remove the cover.
