Instrument Cluster Gauge Pack Lens: Installation

Follow all Warnings for airbag component service (Refer to - RESTRAINTS - WARNING ).

1. Install the two lens retaining screws to the instrument cluster gauge pack lens.

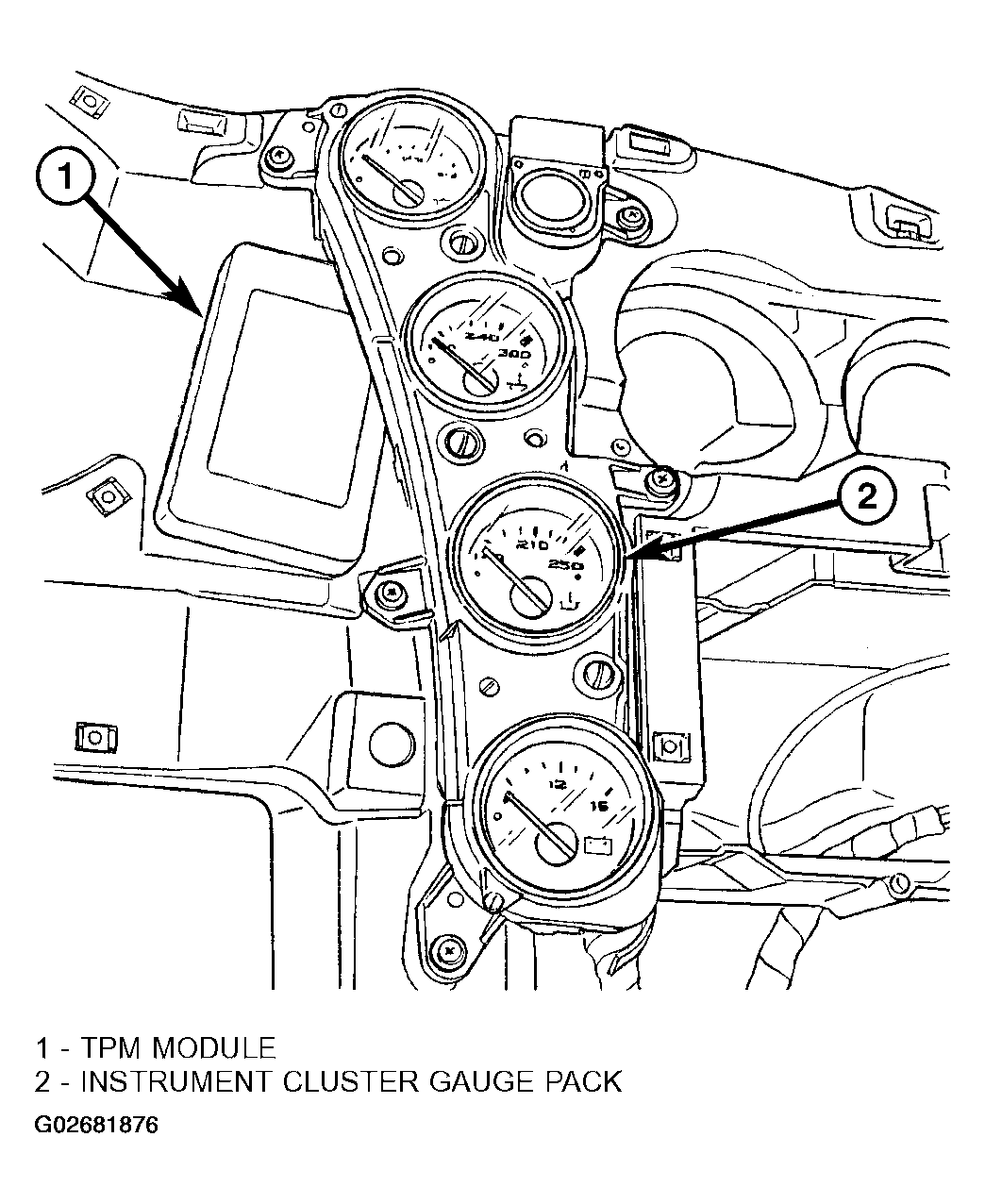

2. Install five screws and two electrical connectors to the instrument cluster gauge pack (Figure ).
3. Connect one electrical connector to instrument panel center bezel and install six screws to center bezel.
4. Install center console (Refer to - CENTER CONSOLE - INSTALLATION ).
5. Connect the battery negative cable.
6. Place battery access cover into place and install four bolts.
7. Close deck lid.
8. Verify vehicle and system operation.
