Diagnostic Procedure

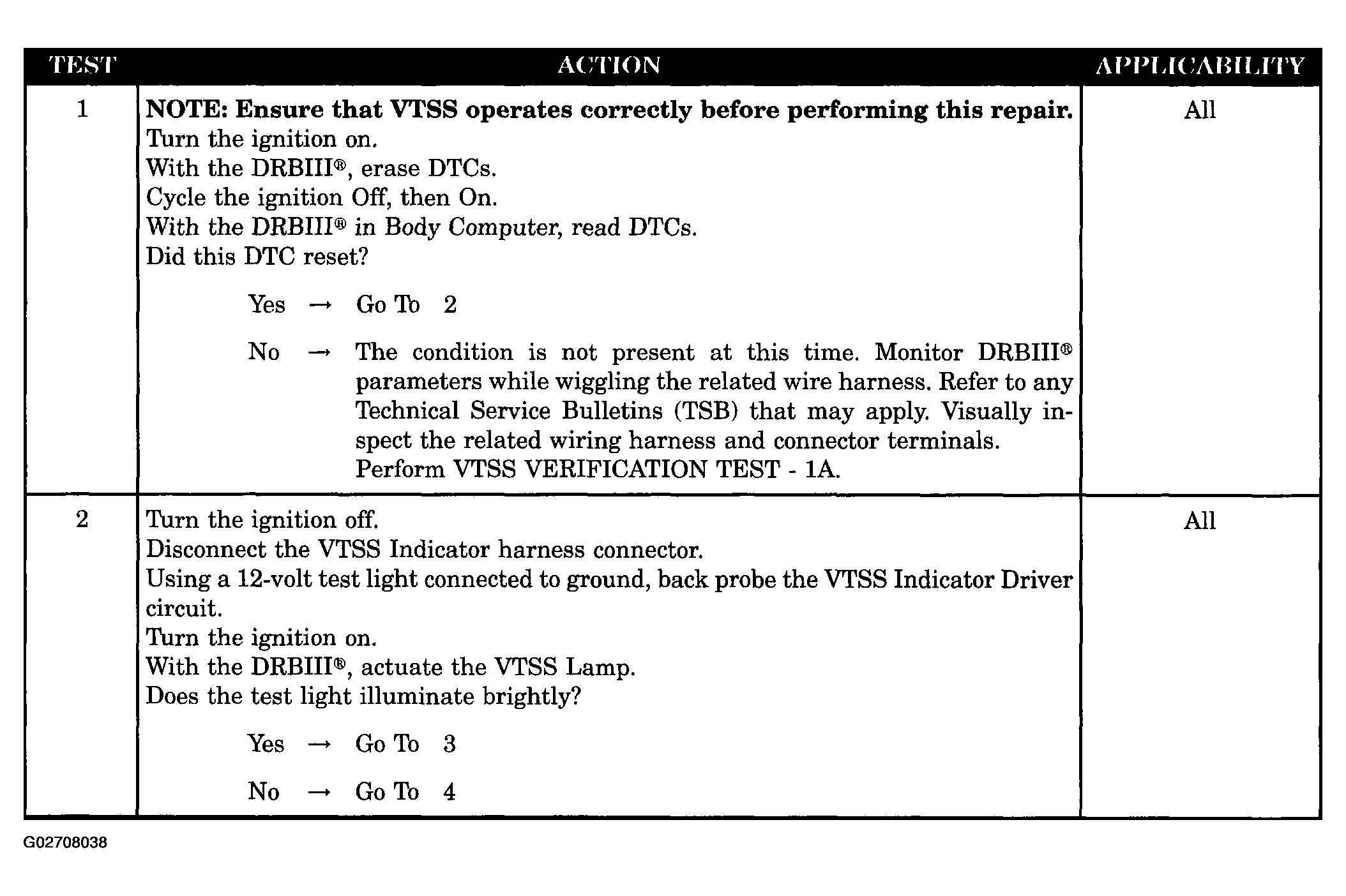

Fig 1: VTSS Indicator Output Open - Diagnostic Procedure (1 Of 2)
G02708038Courtesy of DAIMLERCHRYSLER CORP.

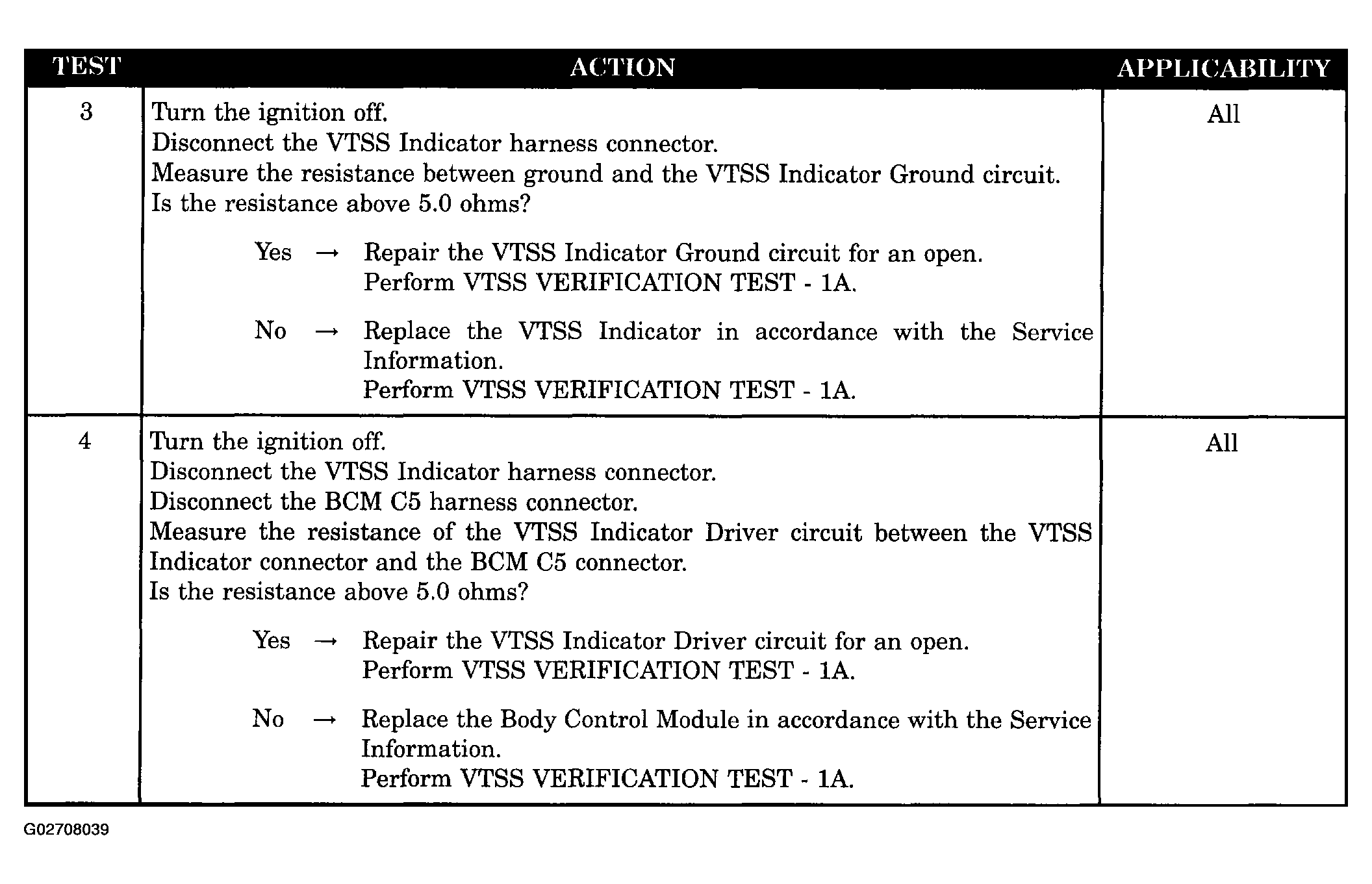

Fig 2: VTSS Indicator Output Open - Diagnostic Procedure (2 Of 2)
G02708039Courtesy of DAIMLERCHRYSLER CORP.
