Diagnostic Procedure

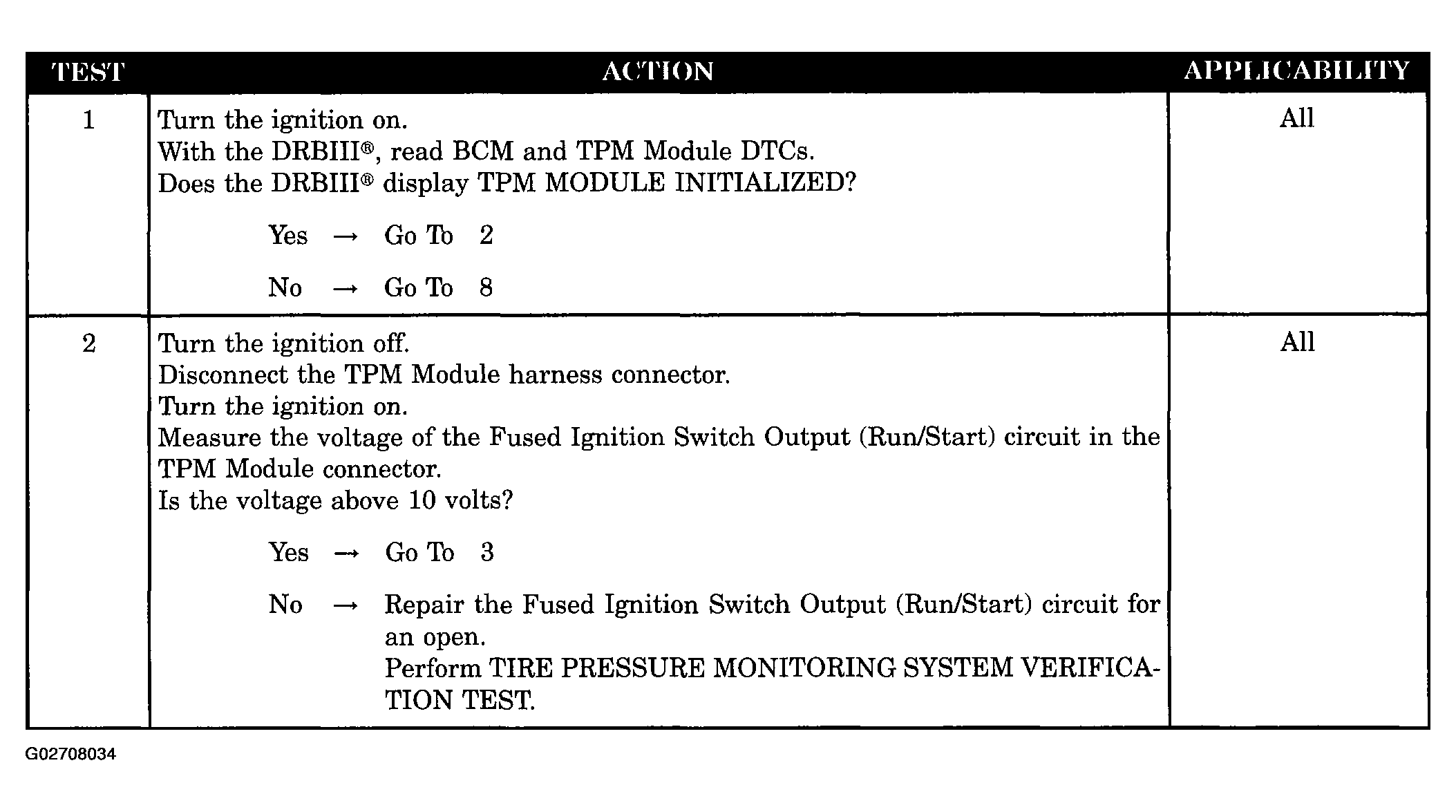

Fig 1: TPM Module Initialized - BCM - Diagnostic Procedure (1 Of 3)
G02708034Courtesy of DAIMLERCHRYSLER CORP.

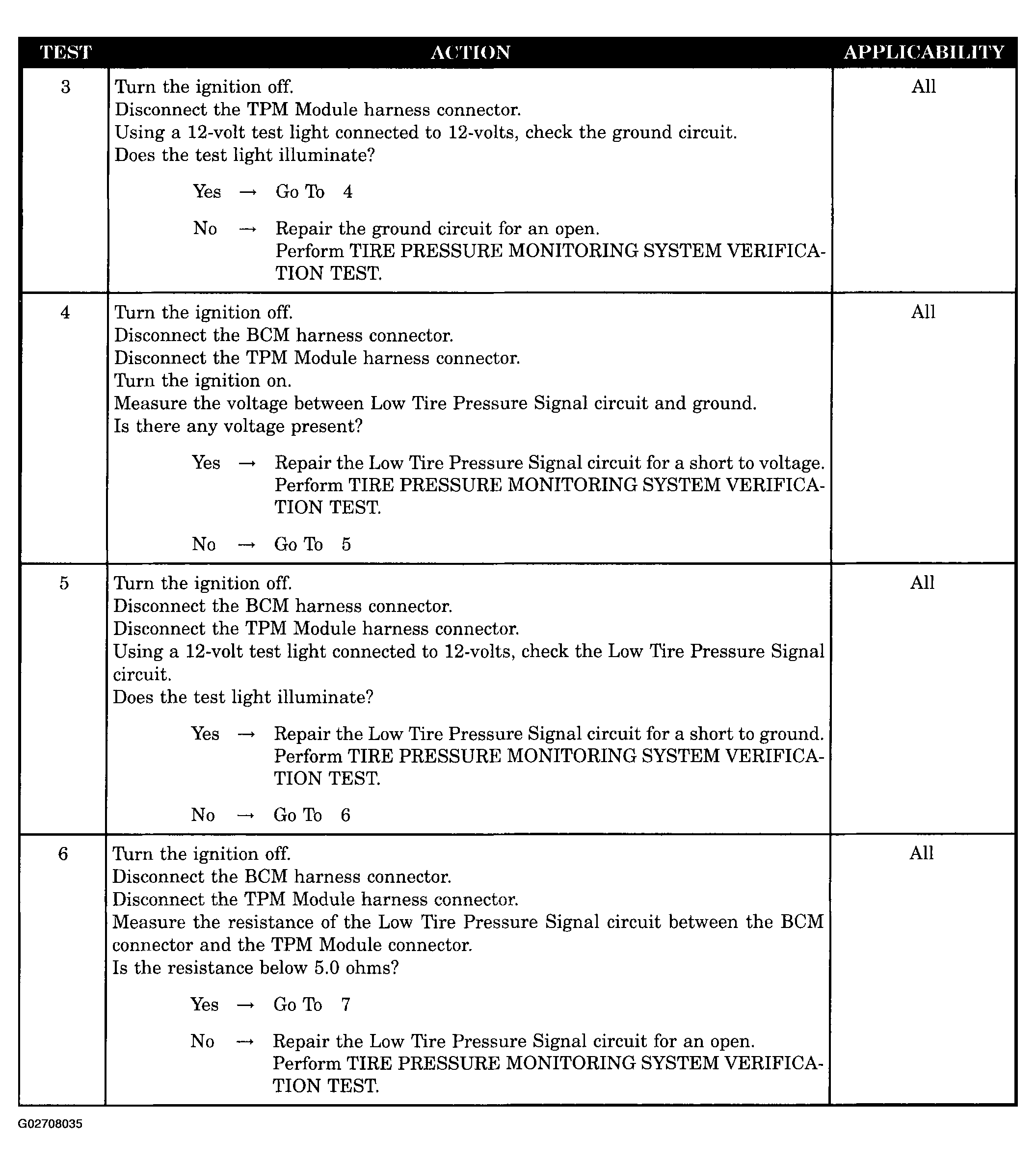

Fig 2: TPM Module Initialized - BCM - Diagnostic Procedure (2 Of 3)
G02708035Courtesy of DAIMLERCHRYSLER CORP.

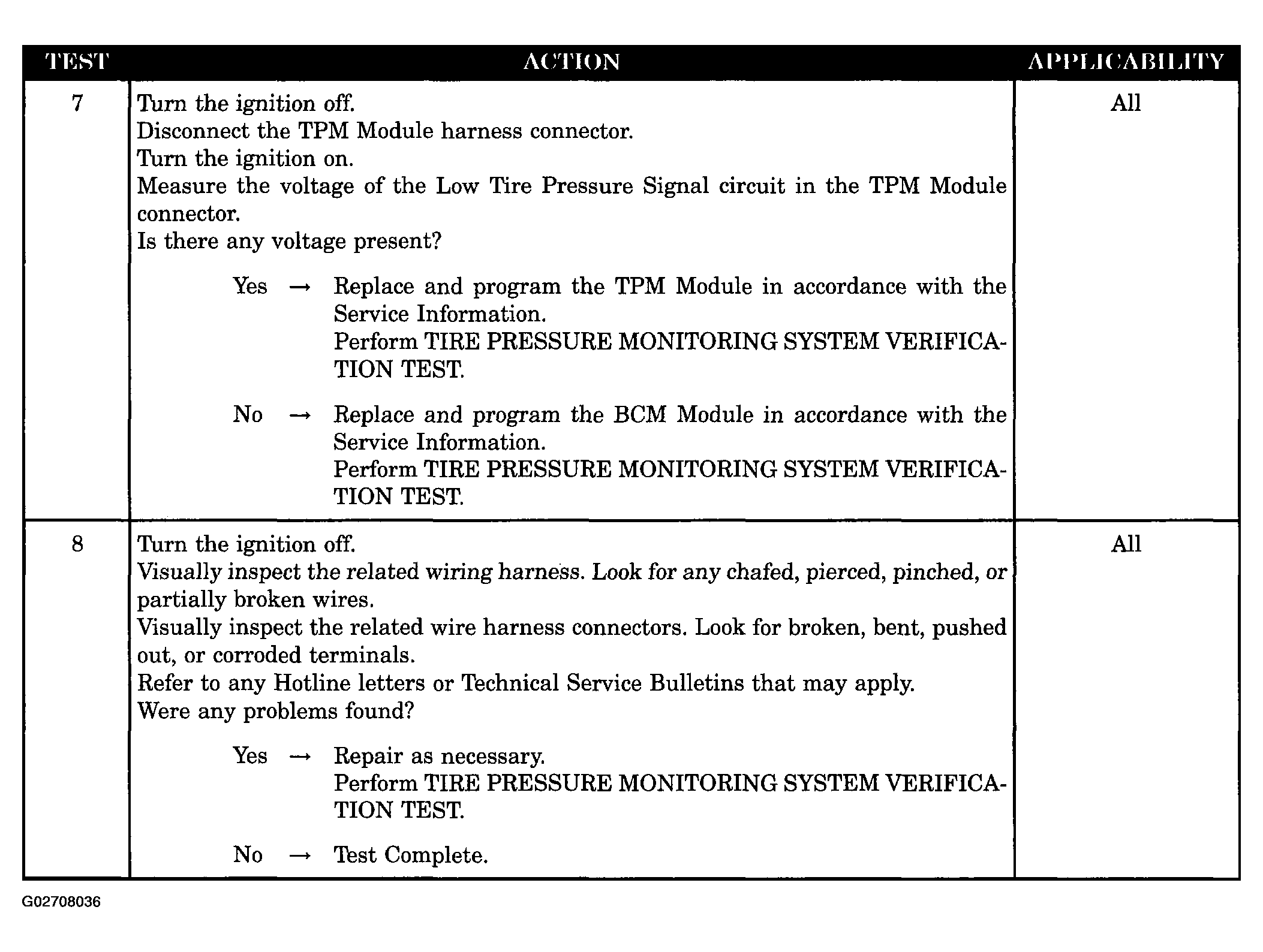

Fig 3: TPM Module Initialized - BCM - Diagnostic Procedure (3 Of 3)
G02708036Courtesy of DAIMLERCHRYSLER CORP.
