Diagnostic Procedure

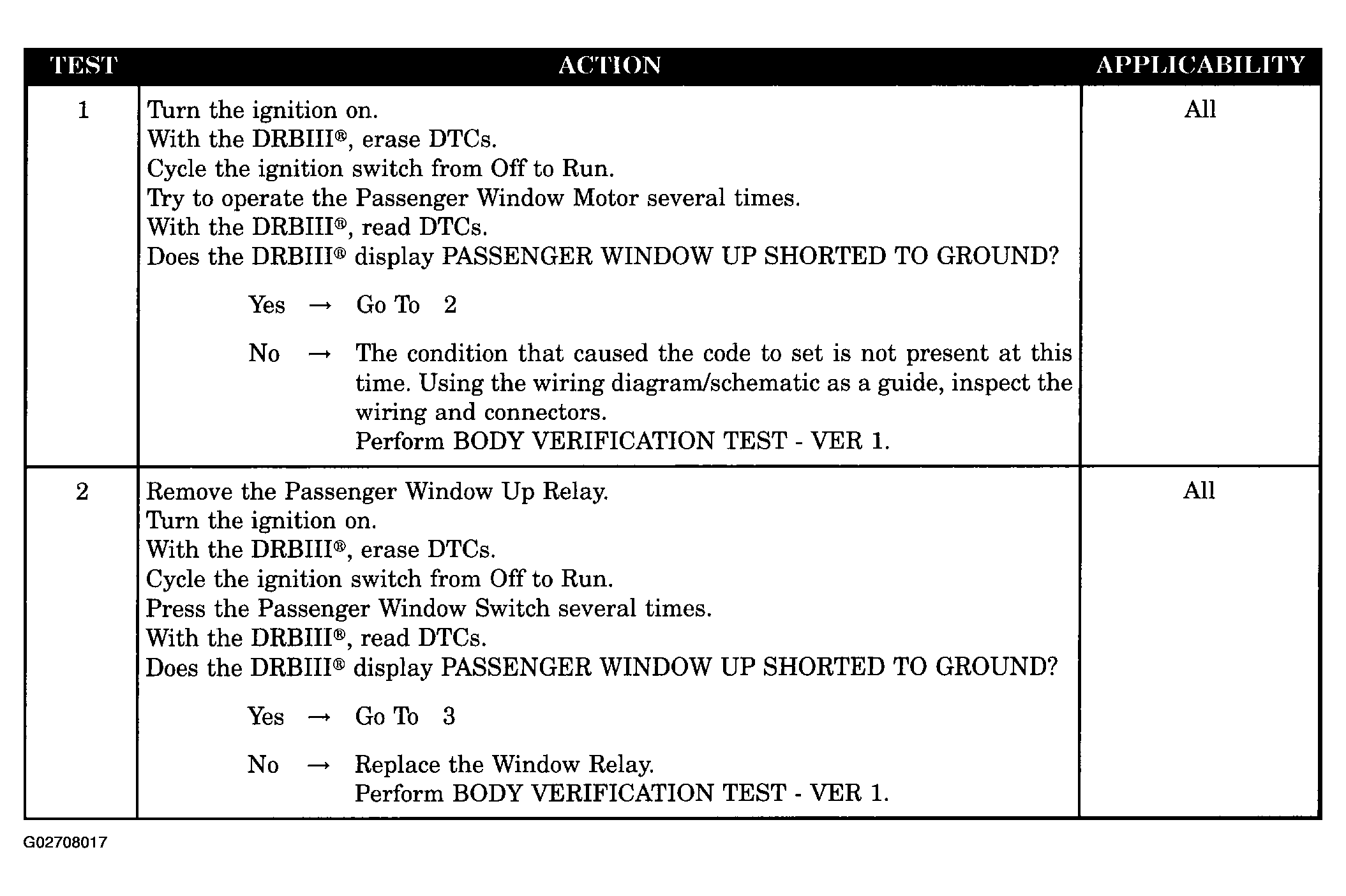

Fig 1: Passenger Window Up Short To Ground - Diagnostic Procedure (1 Of 2)
G02708017Courtesy of DAIMLERCHRYSLER CORP.

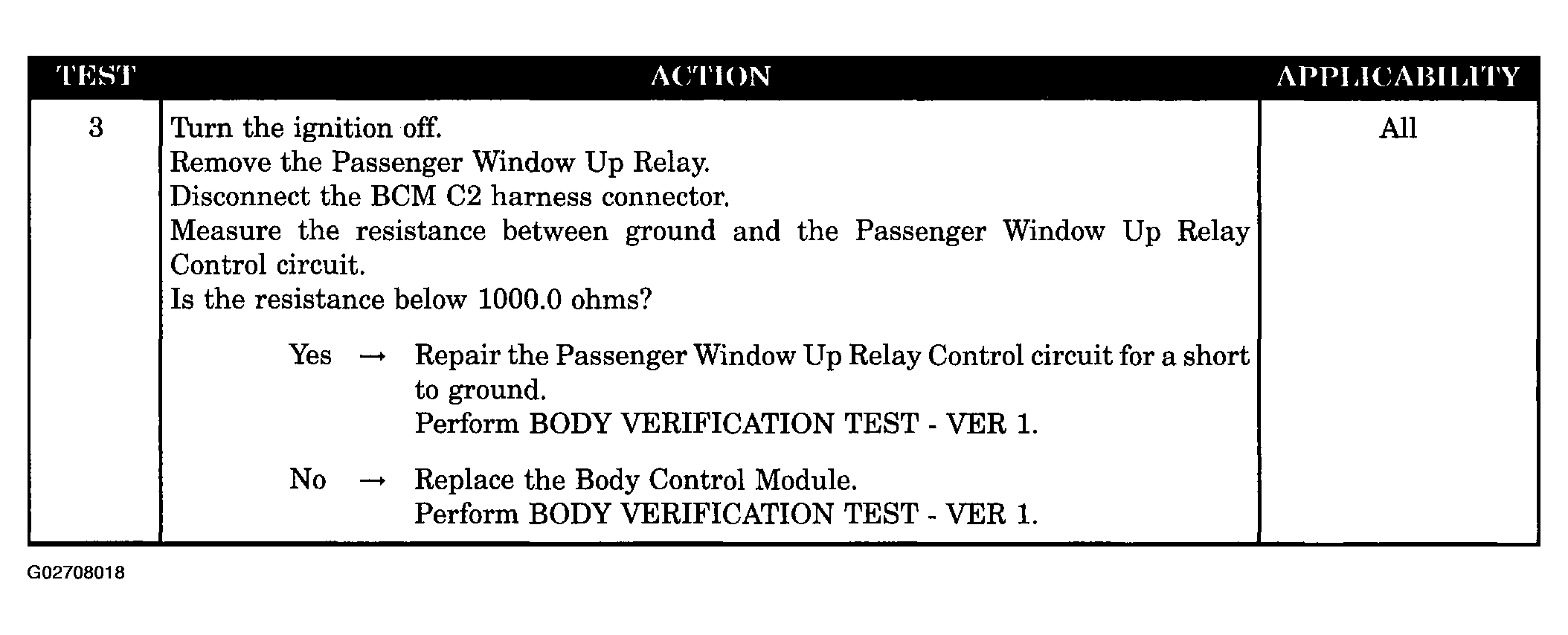

Fig 2: Passenger Window Up Short To Ground - Diagnostic Procedure (2 Of 2)
G02708018Courtesy of DAIMLERCHRYSLER CORP.
