Diagnostic Procedure

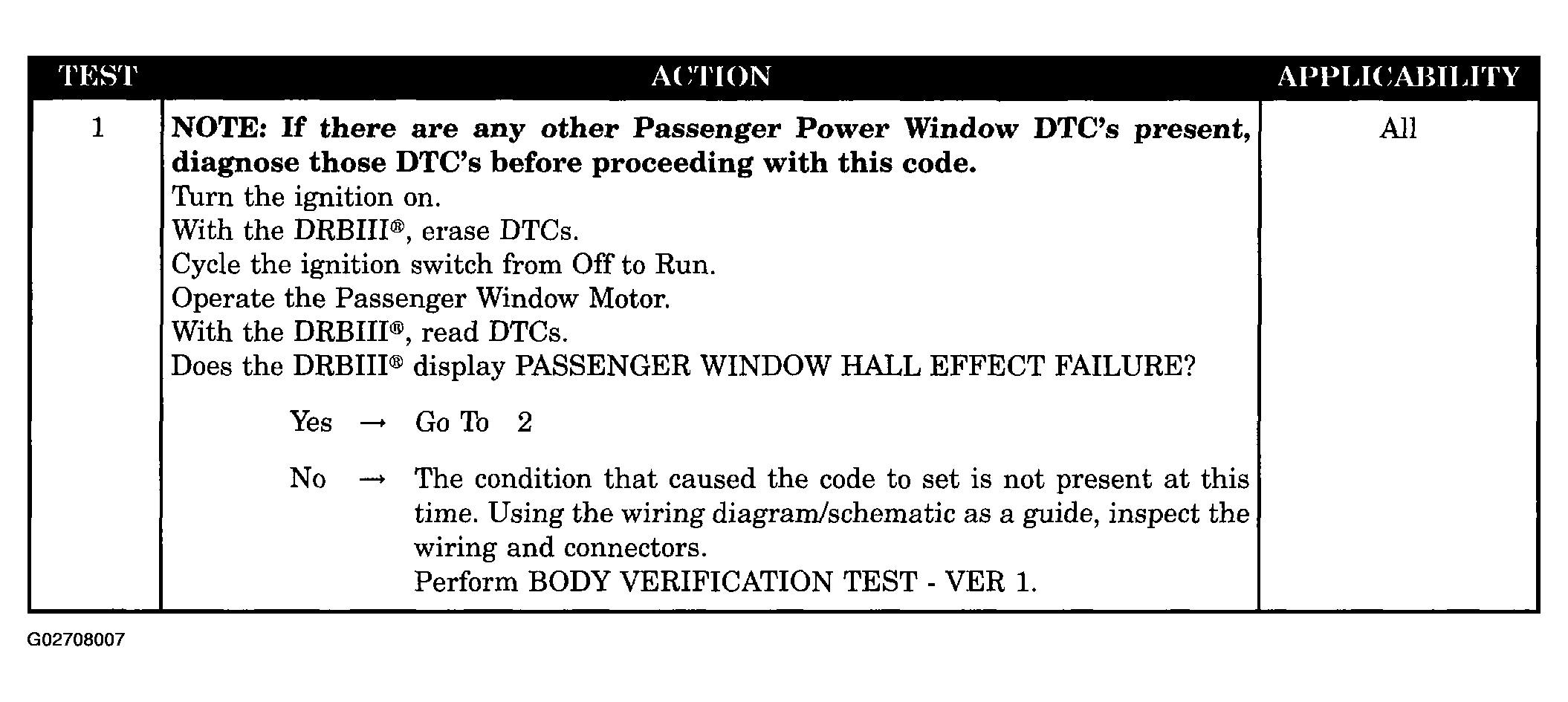

Fig 1: Passenger Window Hall Effect Failure - Diagnostic Procedure (1 Of 4)
G02708007Courtesy of DAIMLERCHRYSLER CORP.

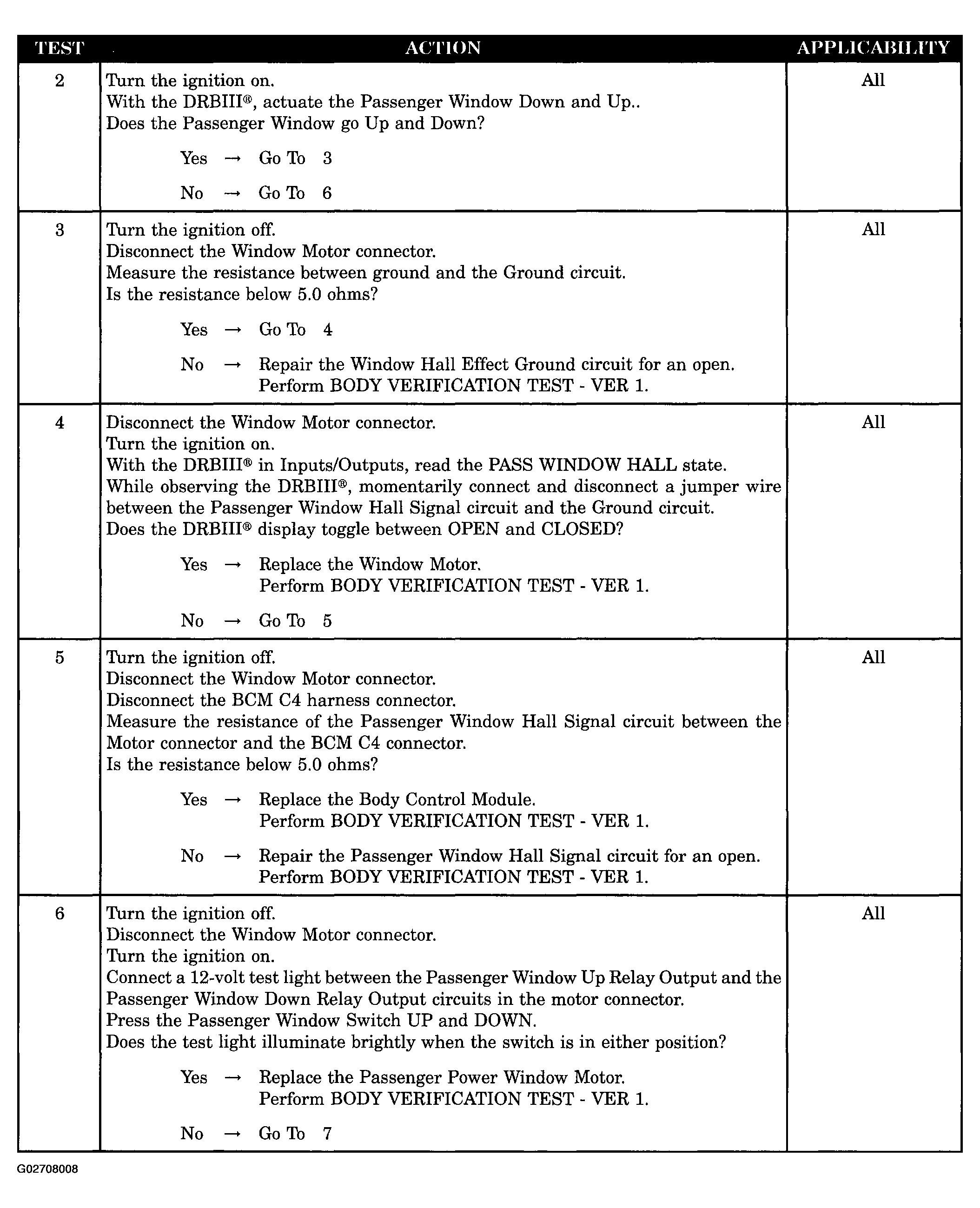

Fig 2: Passenger Window Hall Effect Failure - Diagnostic Procedure (2 Of 4)
G02708008Courtesy of DAIMLERCHRYSLER CORP.

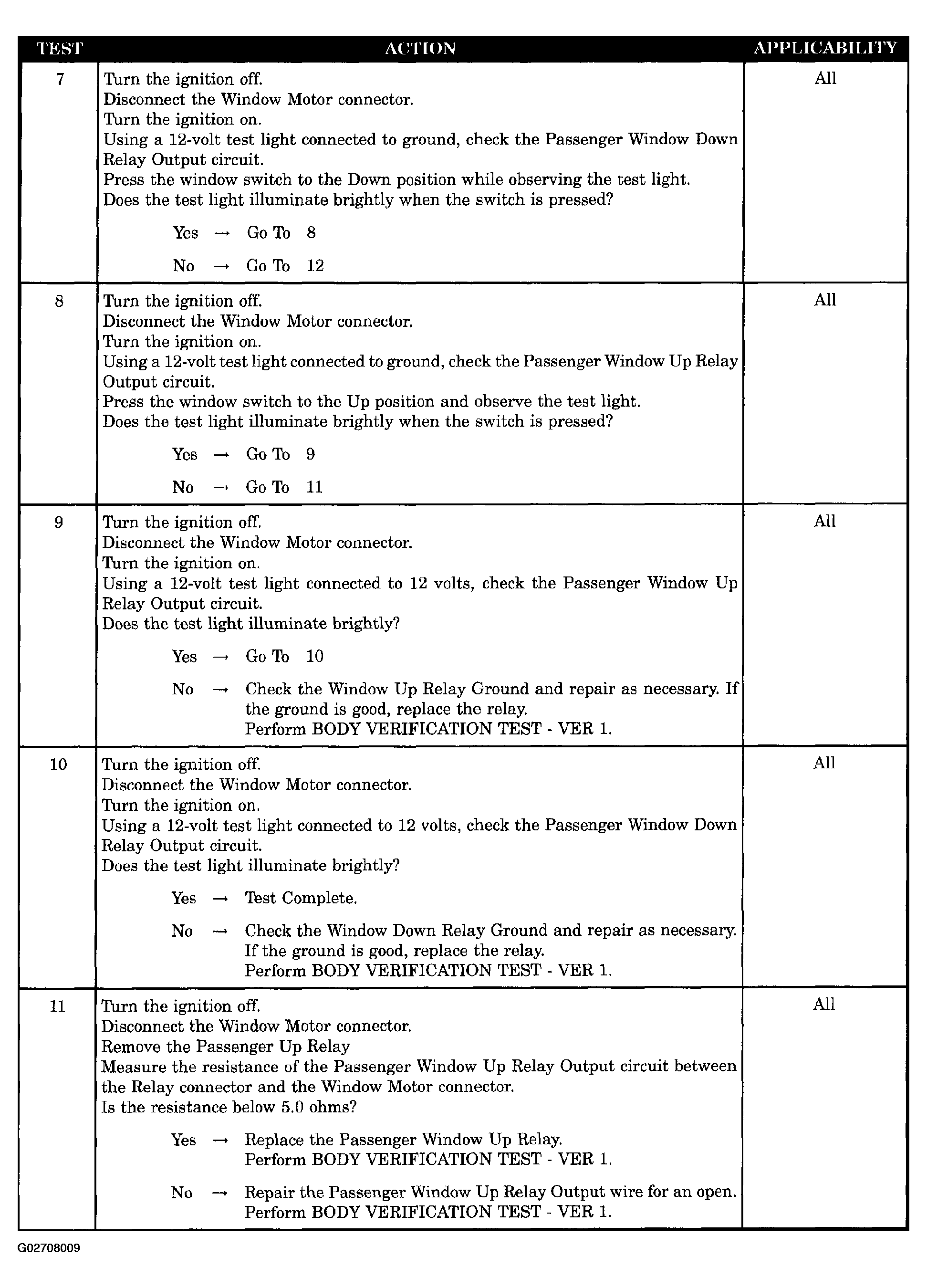

Fig 3: Passenger Window Hall Effect Failure - Diagnostic Procedure (3 Of 4)
G02708009Courtesy of DAIMLERCHRYSLER CORP.

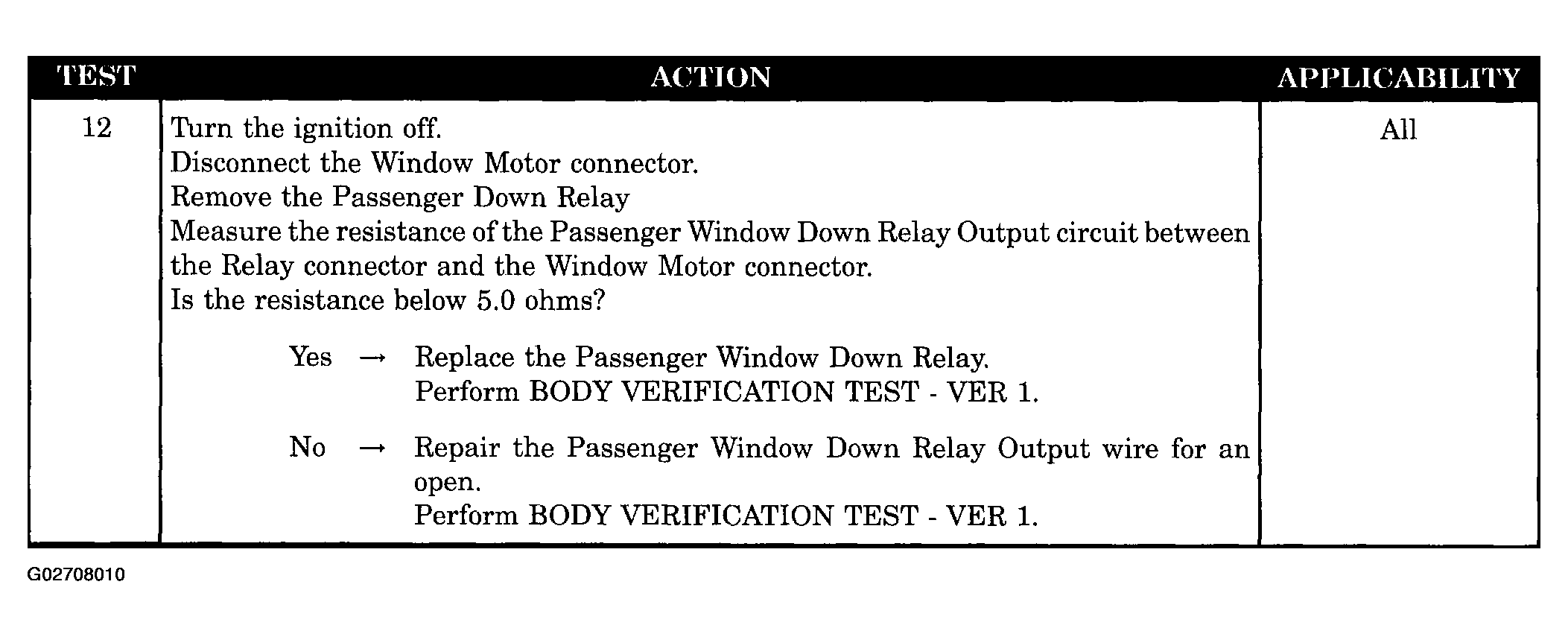

Fig 4: Passenger Window Hall Effect Failure - Diagnostic Procedure (4 Of 4)
G02708010Courtesy of DAIMLERCHRYSLER CORP.
