Diagnostic Procedure

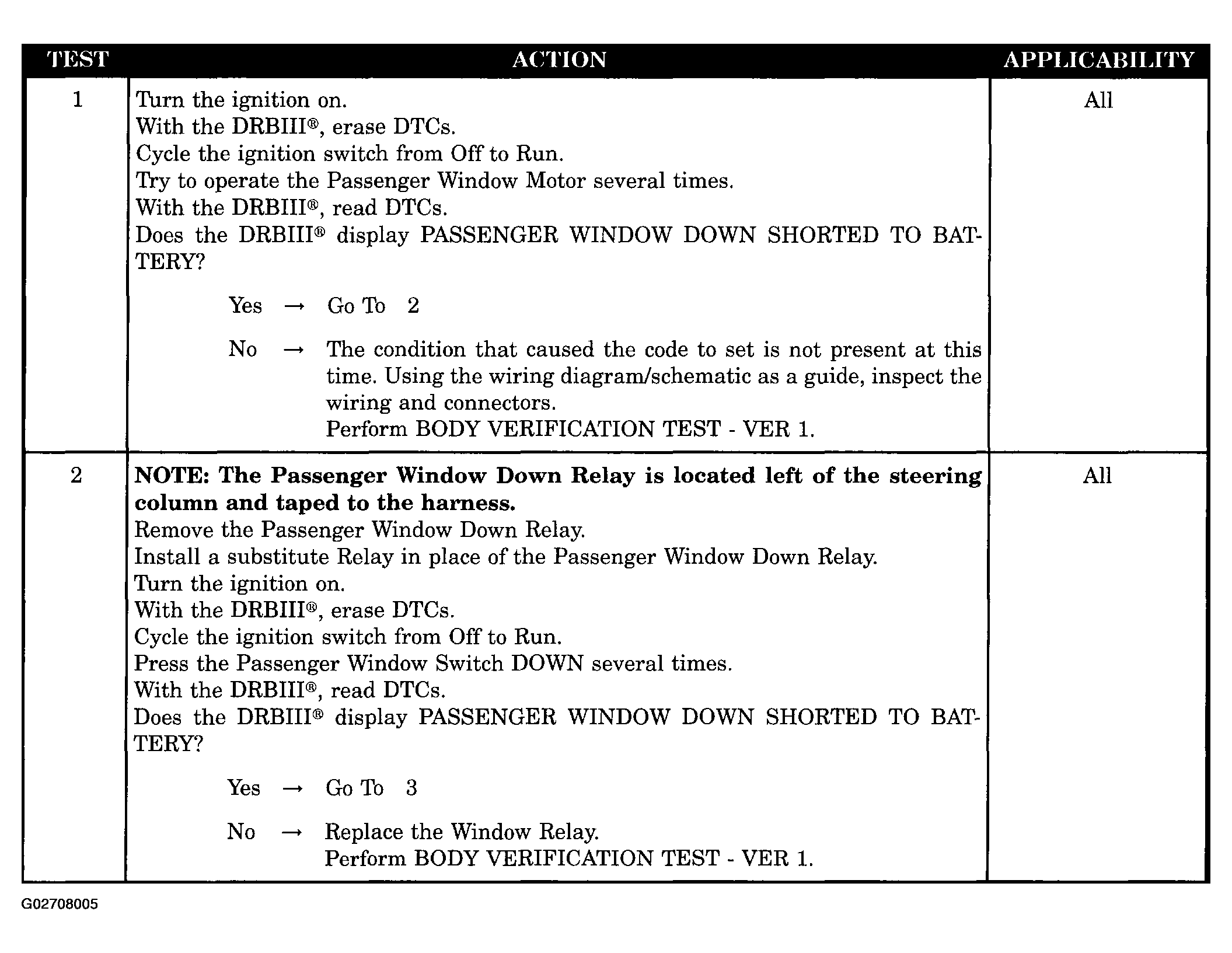

Fig 1: Passenger Window Down Relay Coil Short To Battery - Diagnostic Procedure (1 Of 2)
G02708005Courtesy of DAIMLERCHRYSLER CORP.

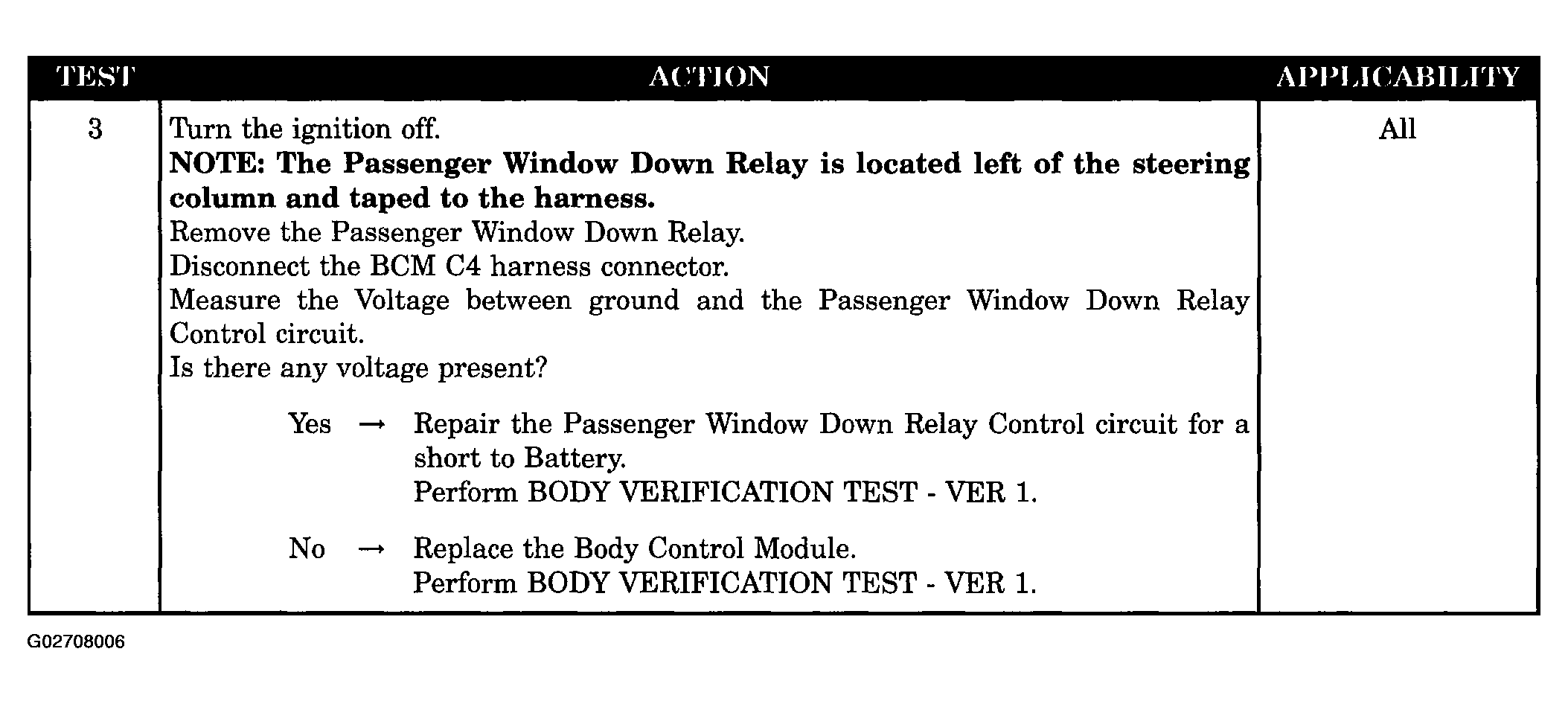

Fig 2: Passenger Window Down Relay Coil Short To Battery - Diagnostic Procedure (2 Of 2)
G02708006Courtesy of DAIMLERCHRYSLER CORP.
