Diagnostic Procedure

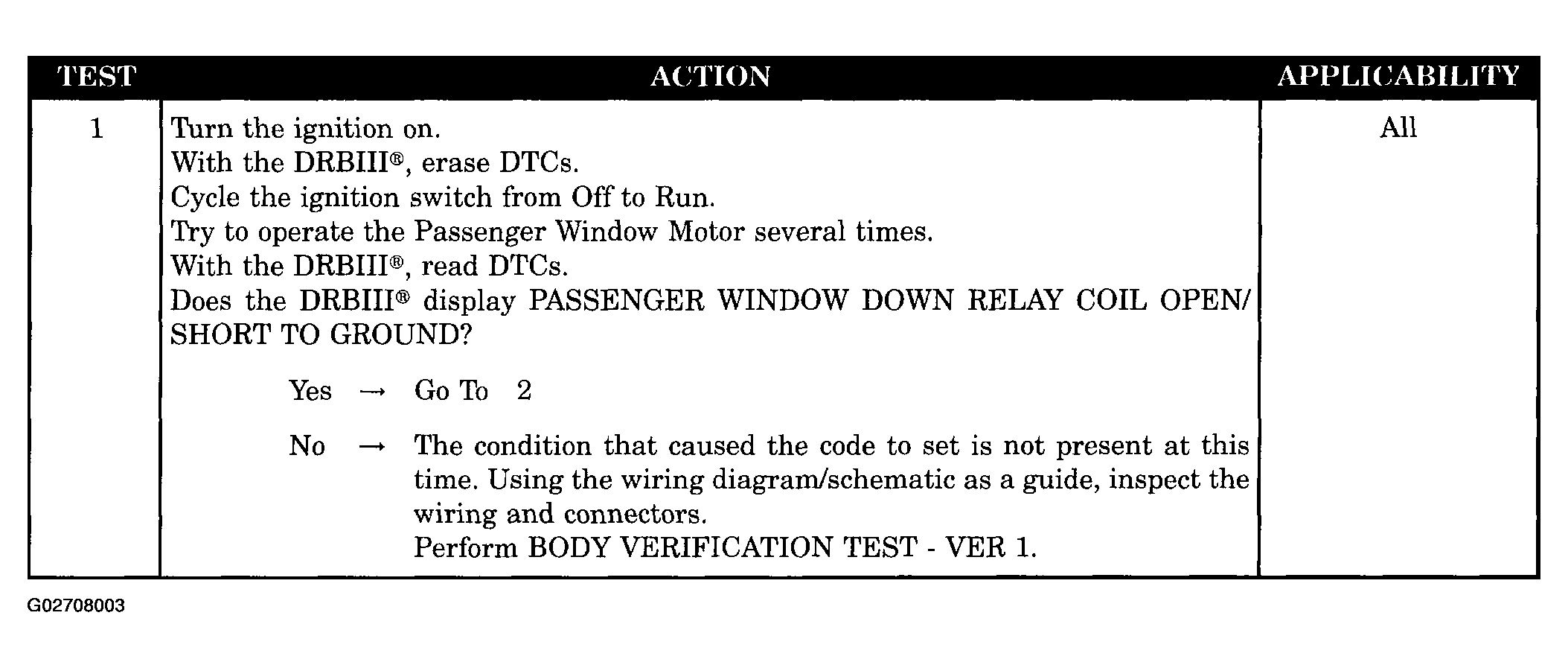

Fig 1: Passenger Window Down Relay Coil Open/Short To Ground - Diagnostic Procedure (1 Of 2)
G02708003Courtesy of DAIMLERCHRYSLER CORP.

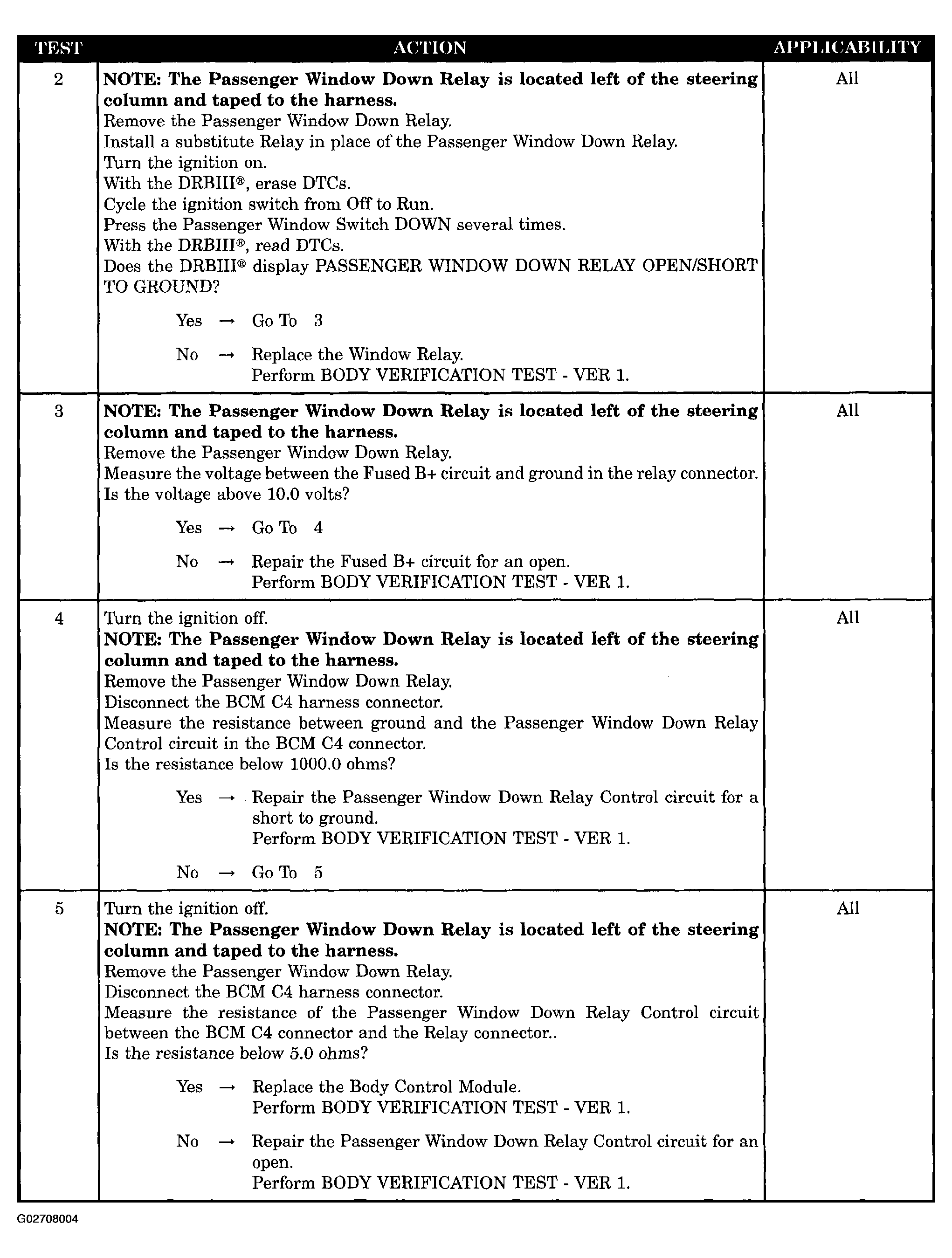

Fig 2: Passenger Window Down Relay Coil Open/Short To Ground - Diagnostic Procedure (2 Of 2)
G02708004Courtesy of DAIMLERCHRYSLER CORP.
