Diagnostic Procedure

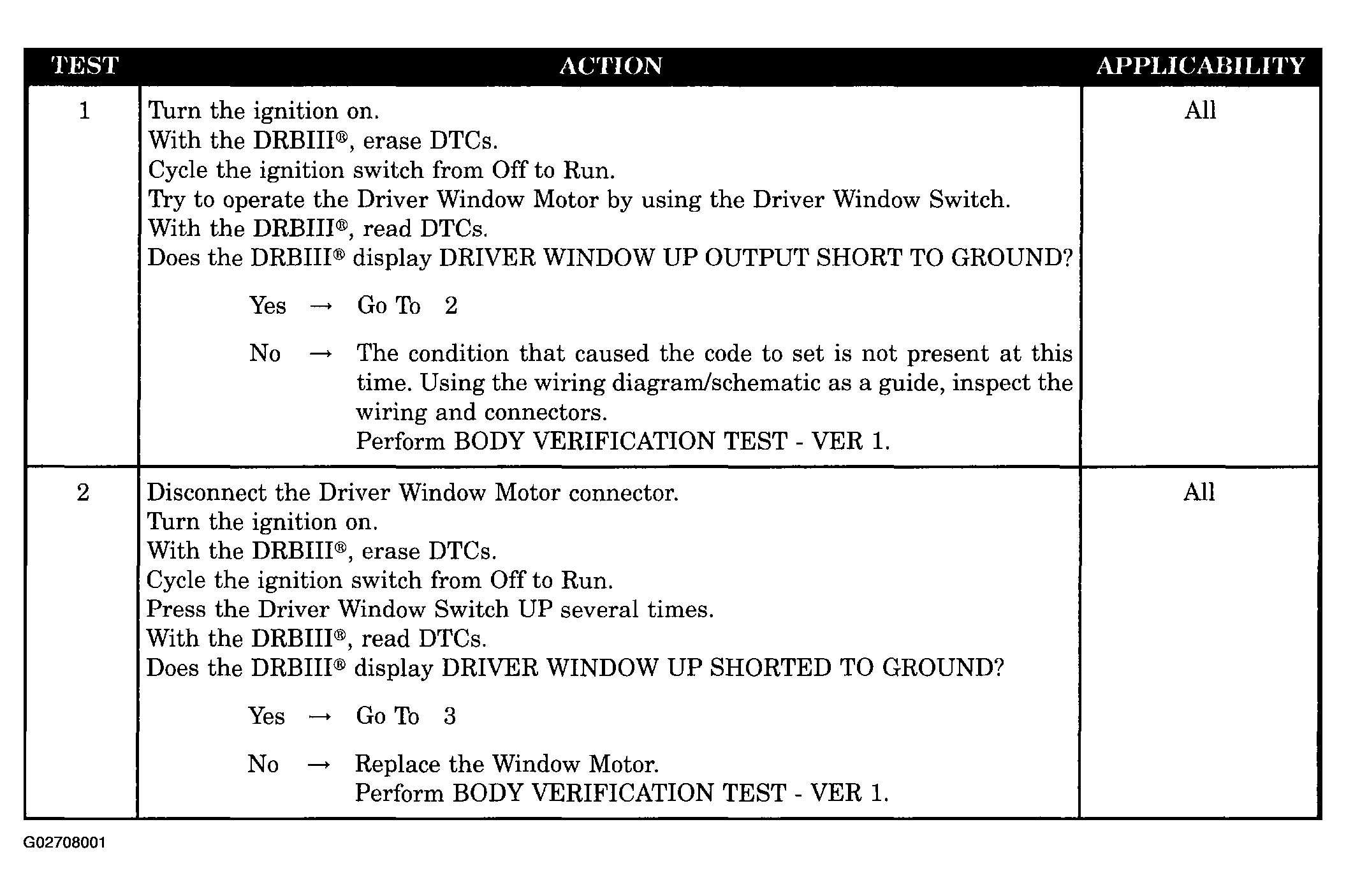

Fig 1: Driver Window Up Output Short To Ground - Diagnostic Procedure (1 Of 2)
G02708001Courtesy of DAIMLERCHRYSLER CORP.

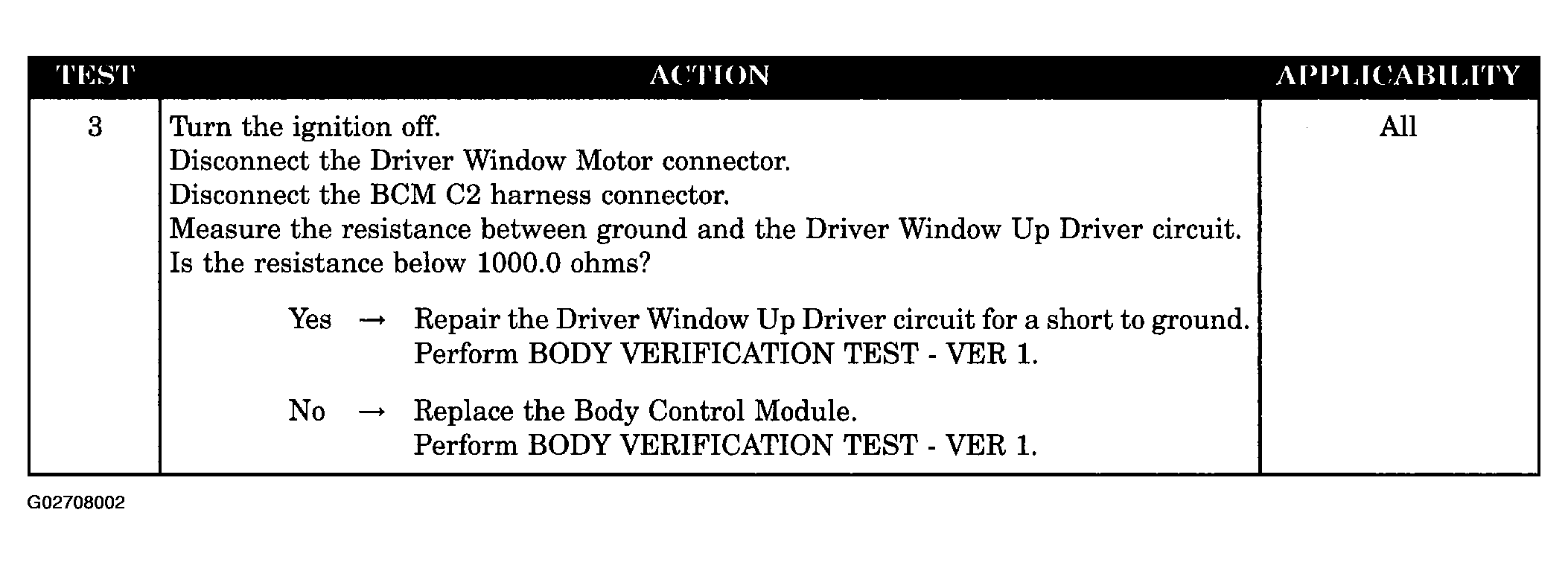

Fig 2: Driver Window Up Output Short To Ground - Diagnostic Procedure (2 Of 2)
G02708002Courtesy of DAIMLERCHRYSLER CORP.
