Diagnostic Procedure

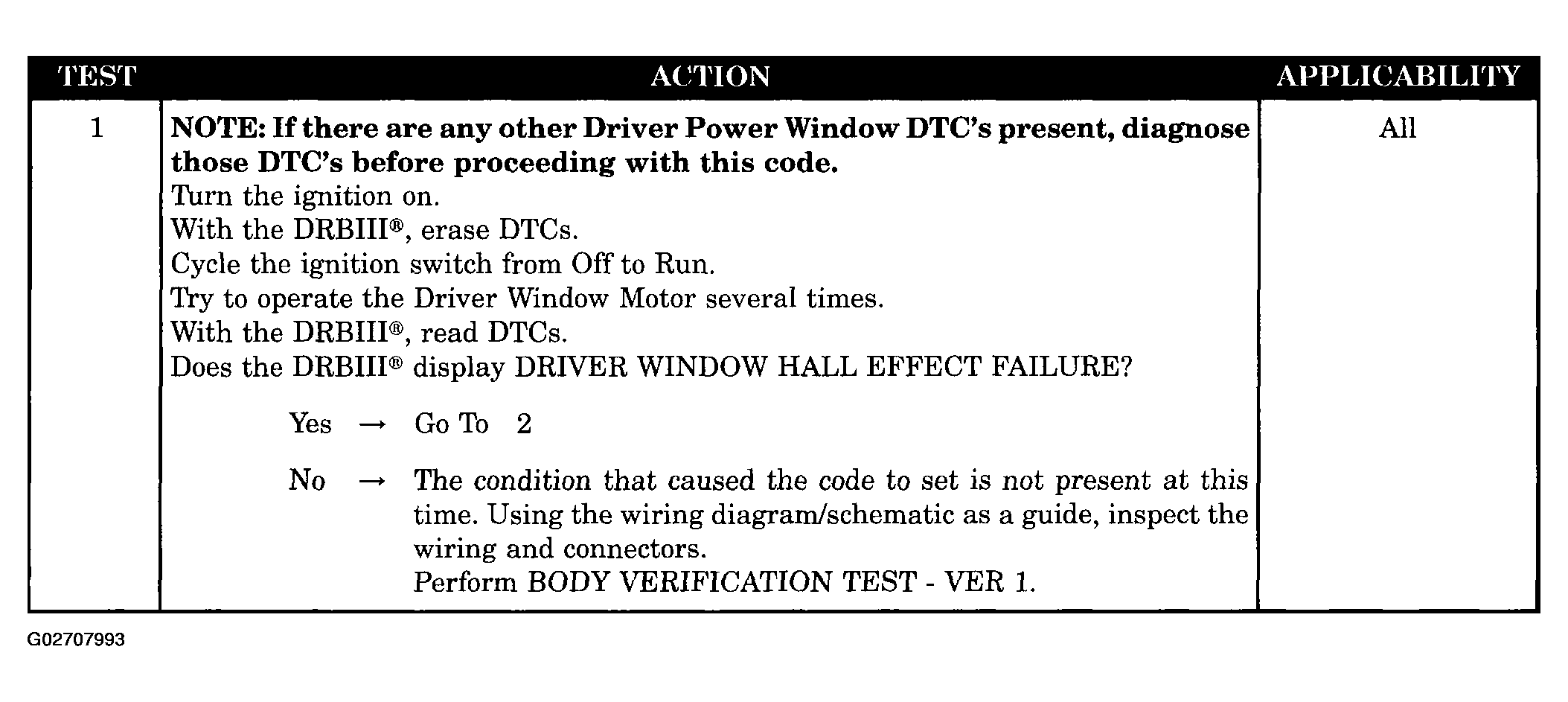

Fig 1: Driver Window Hall Effect Failure - Diagnostic Procedure (1 Of 3)
G02707993Courtesy of DAIMLERCHRYSLER CORP.

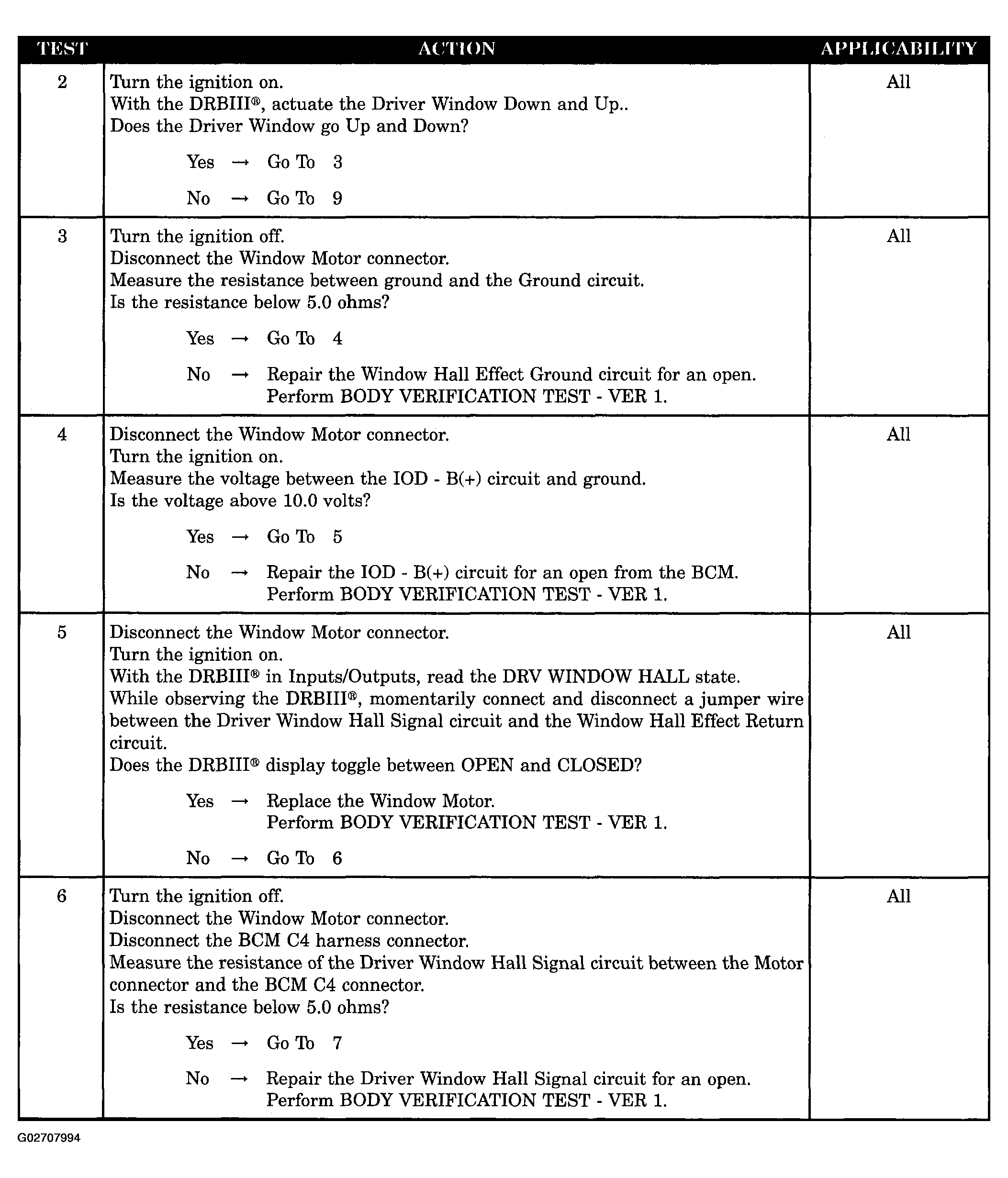

Fig 2: Driver Window Hall Effect Failure - Diagnostic Procedure (2 Of 3)
G02707994Courtesy of DAIMLERCHRYSLER CORP.

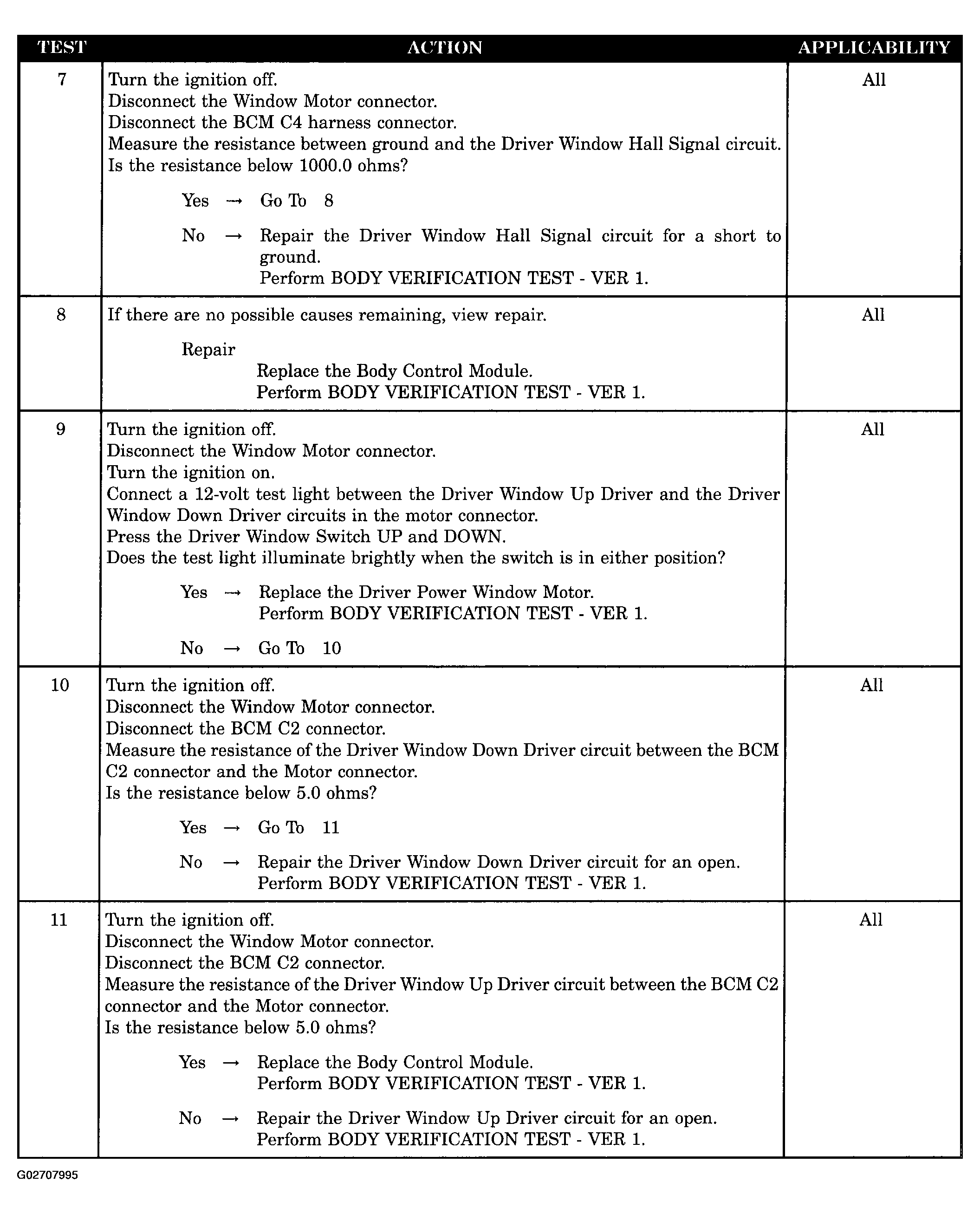

Fig 3: Driver Window Hall Effect Failure - Diagnostic Procedure (3 Of 3)
G02707995Courtesy of DAIMLERCHRYSLER CORP.
