Diagnostic Procedure

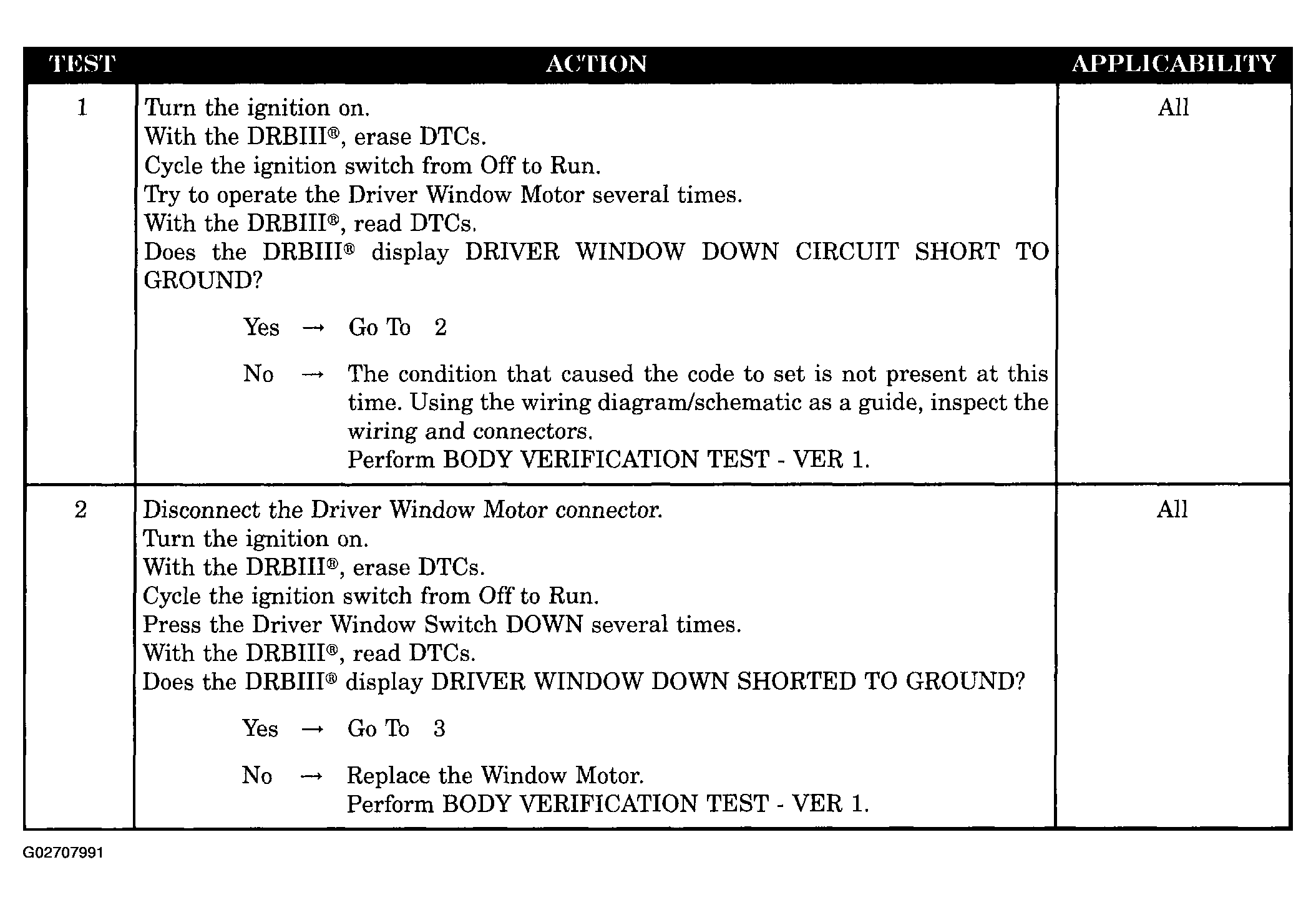

Fig 1: Driver Window Down Output Short To Ground - Diagnostic Procedure (1 Of 2)
G02707991Courtesy of DAIMLERCHRYSLER CORP.

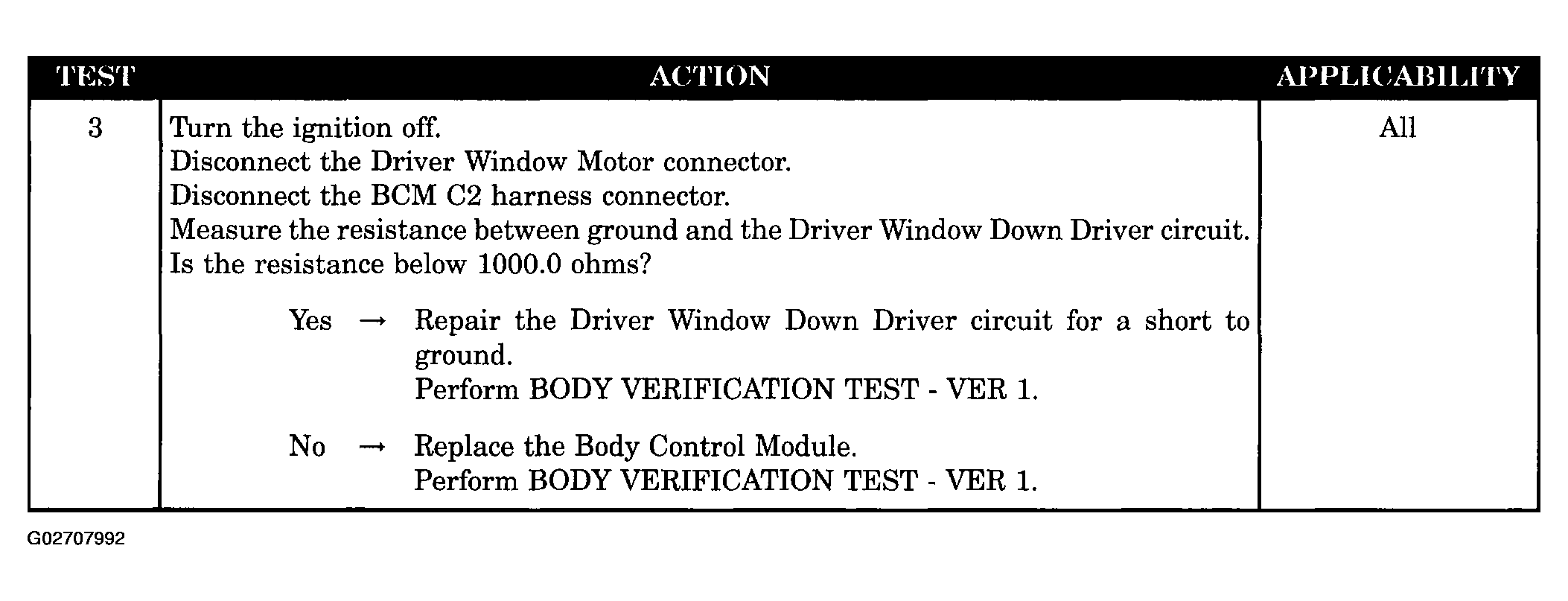

Fig 2: Driver Window Down Output Short To Ground - Diagnostic Procedure (2 Of 2)
G02707992Courtesy of DAIMLERCHRYSLER CORP.
