Diagnostic Procedure

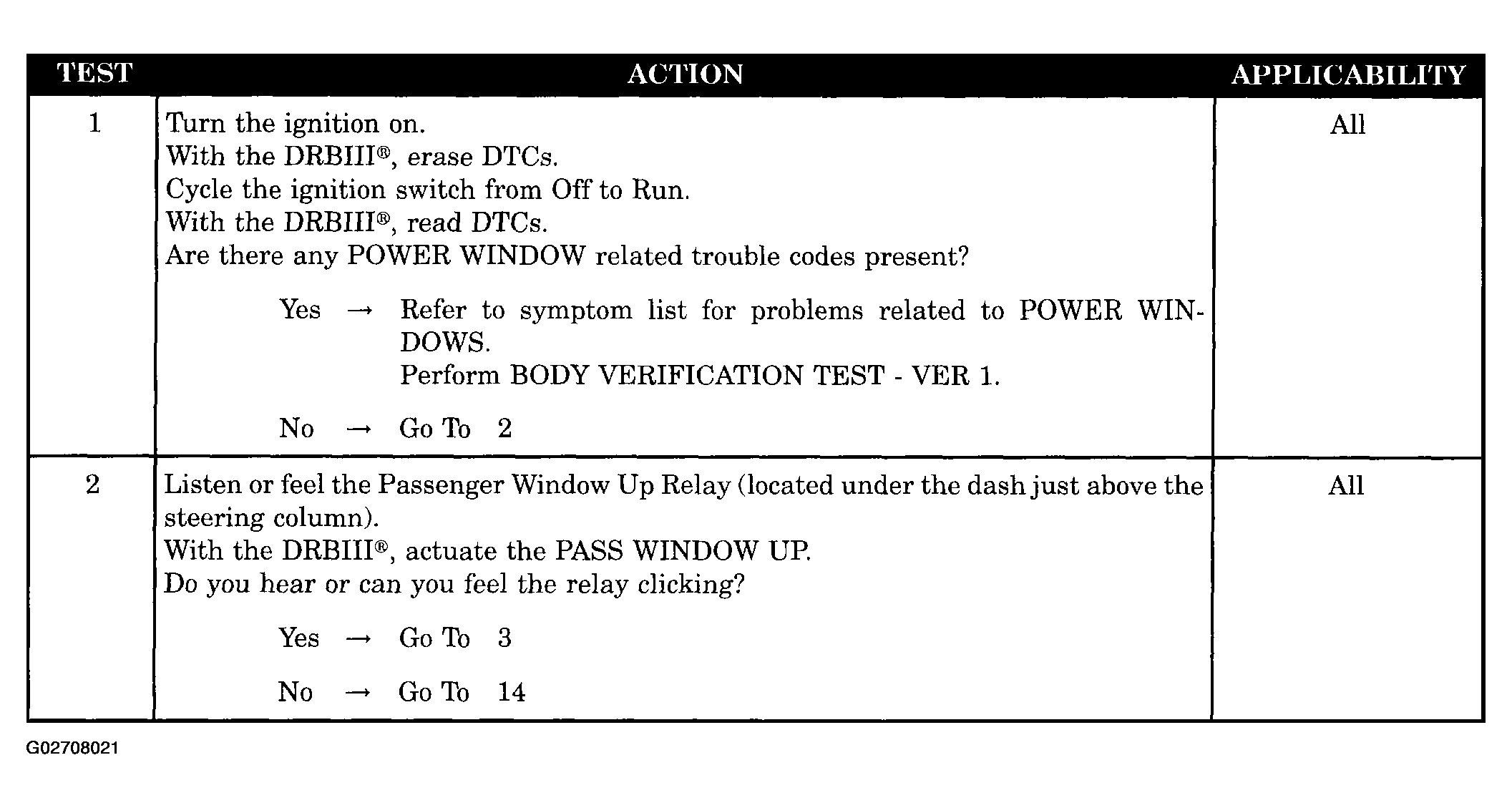

Fig 1: Passenger Window Inoperative - Diagnostic Procedure (1 Of 4)
G02708021Courtesy of DAIMLERCHRYSLER CORP.

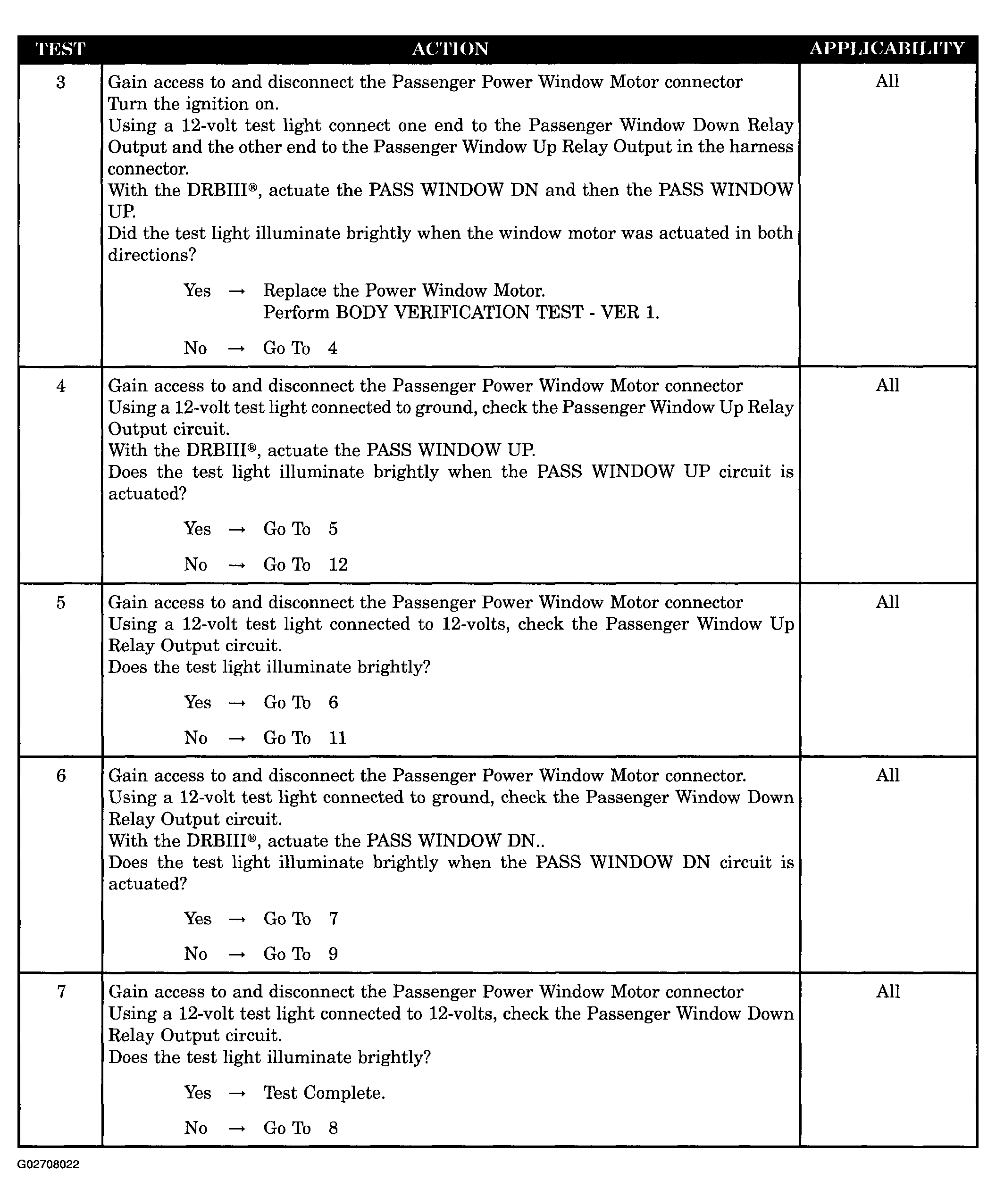

Fig 2: Passenger Window Inoperative - Diagnostic Procedure (2 Of 4)
G02708022Courtesy of DAIMLERCHRYSLER CORP.

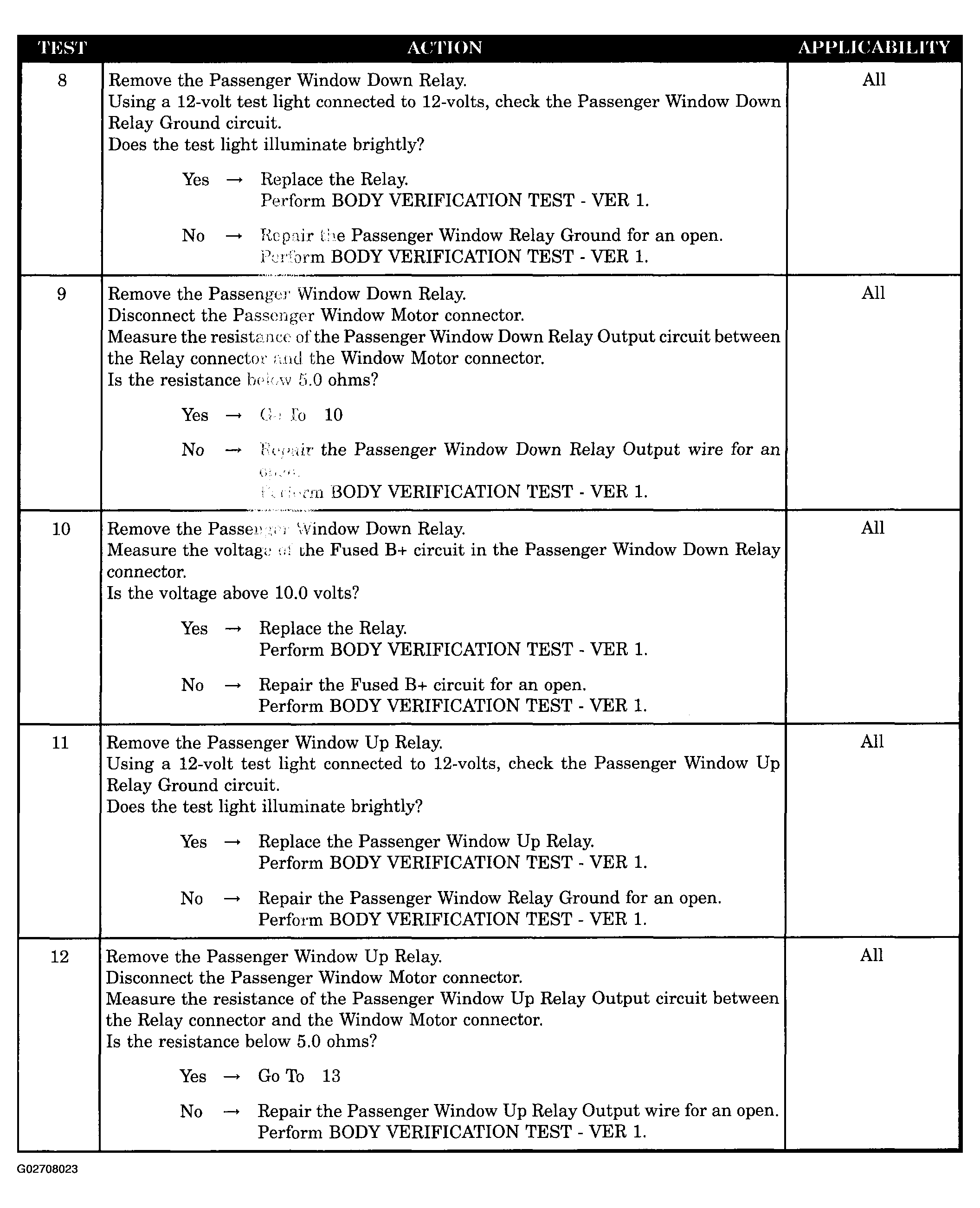

Fig 3: Passenger Window Inoperative - Diagnostic Procedure (3 Of 4)
G02708023Courtesy of DAIMLERCHRYSLER CORP.

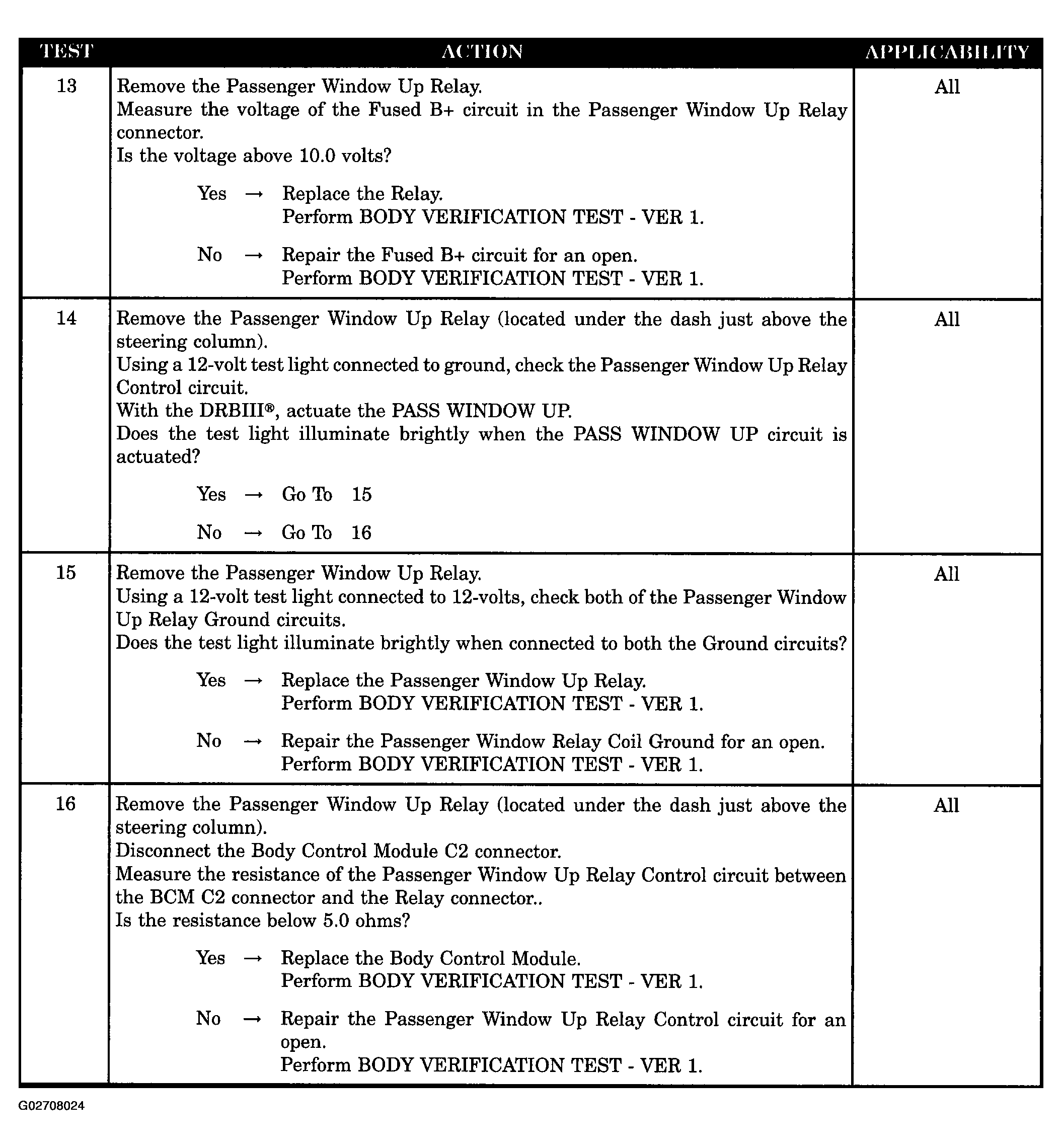

Fig 4: Passenger Window Inoperative - Diagnostic Procedure (4 Of 4)
G02708024Courtesy of DAIMLERCHRYSLER CORP.
