Diagnostic Procedure

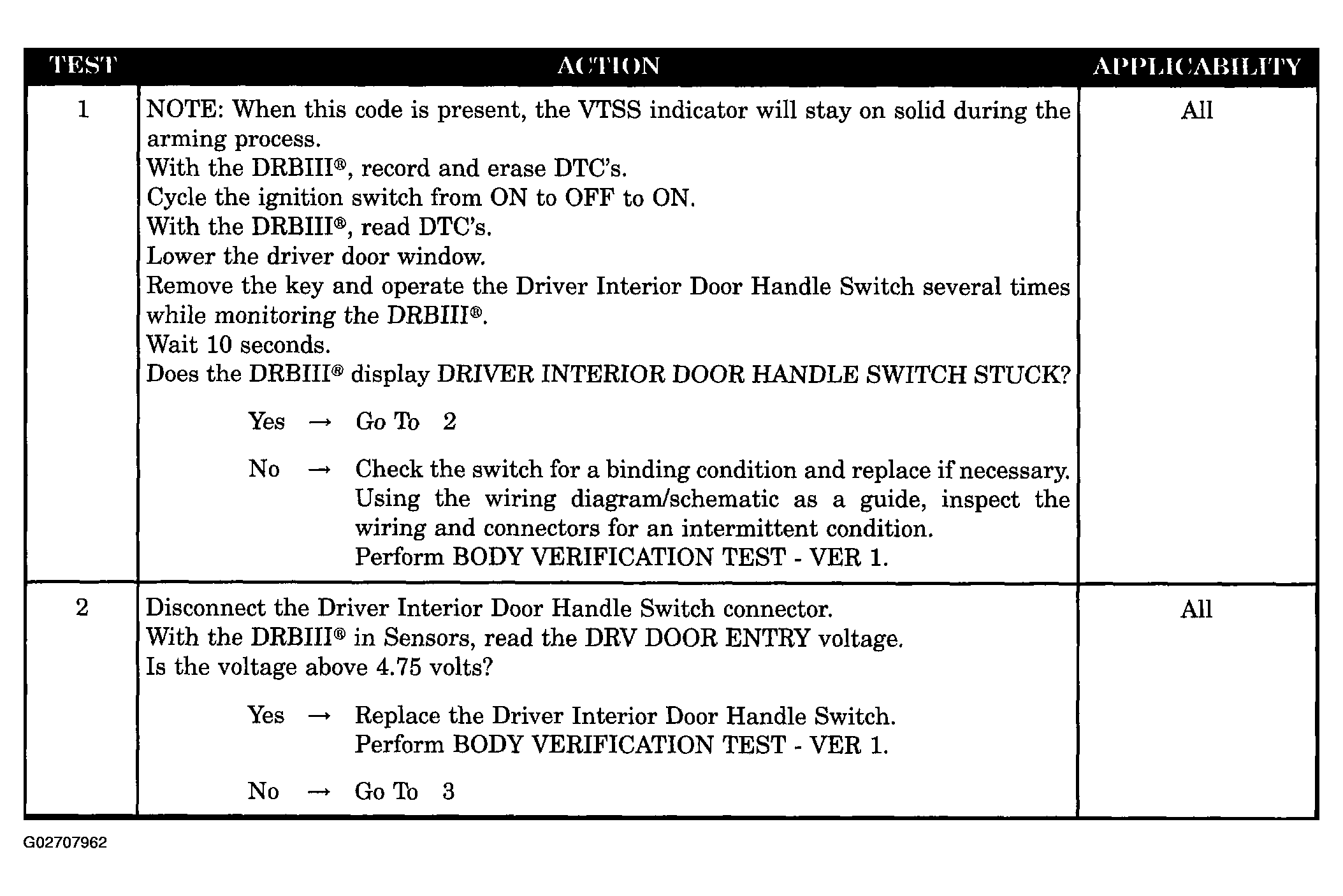

Fig 1: Driver Interior Door Handle Switch Stuck - Diagnostic Procedure (1 Of 2)
G02707962Courtesy of DAIMLERCHRYSLER CORP.

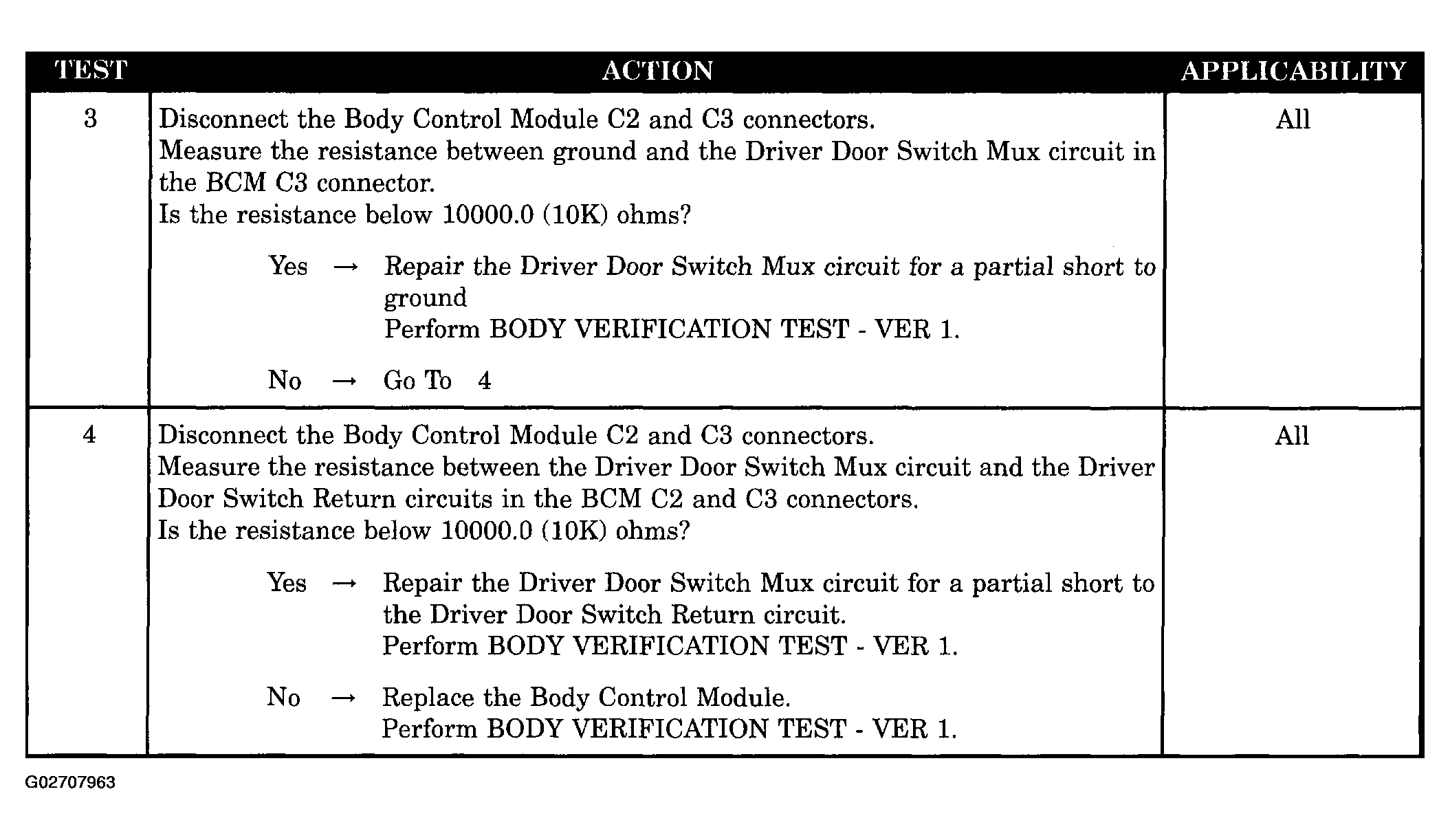

Fig 2: Driver Interior Door Handle Switch Stuck - Diagnostic Procedure (2 Of 2)
G02707963Courtesy of DAIMLERCHRYSLER CORP.
