Diagnostic Procedure

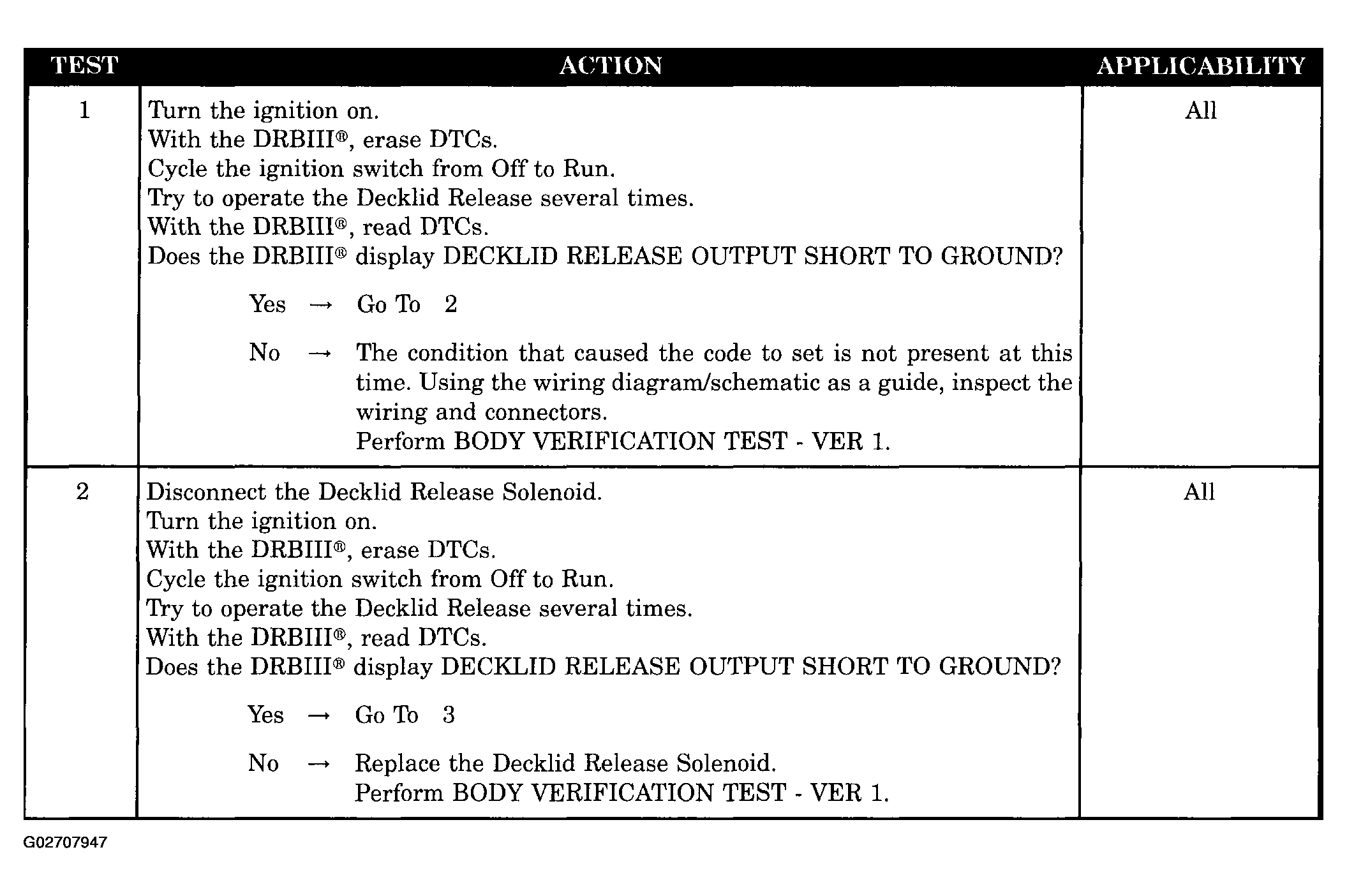

Fig 1: Decklid Release Output Short To Ground - Diagnostic Procedure (1 Of 2)
G02707947Courtesy of DAIMLERCHRYSLER CORP.

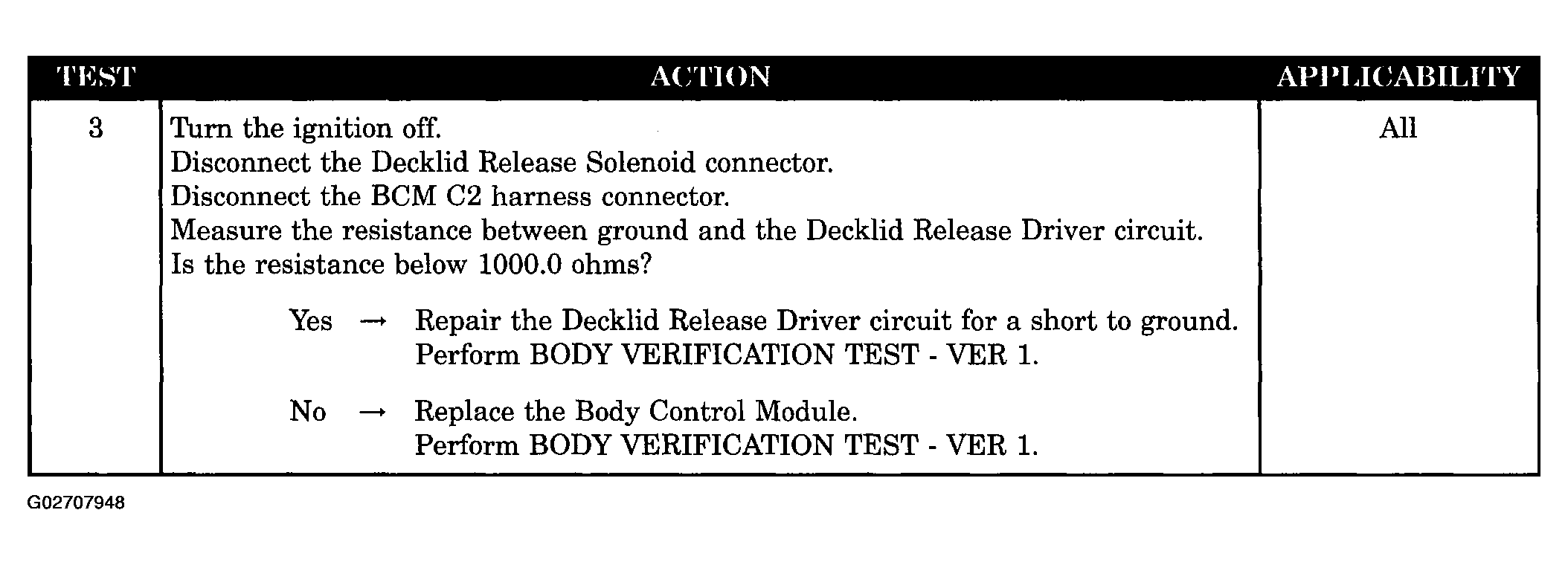

Fig 2: Decklid Release Output Short To Ground - Diagnostic Procedure (2 Of 2)
G02707948Courtesy of DAIMLERCHRYSLER CORP.
