Diagnostic Procedure

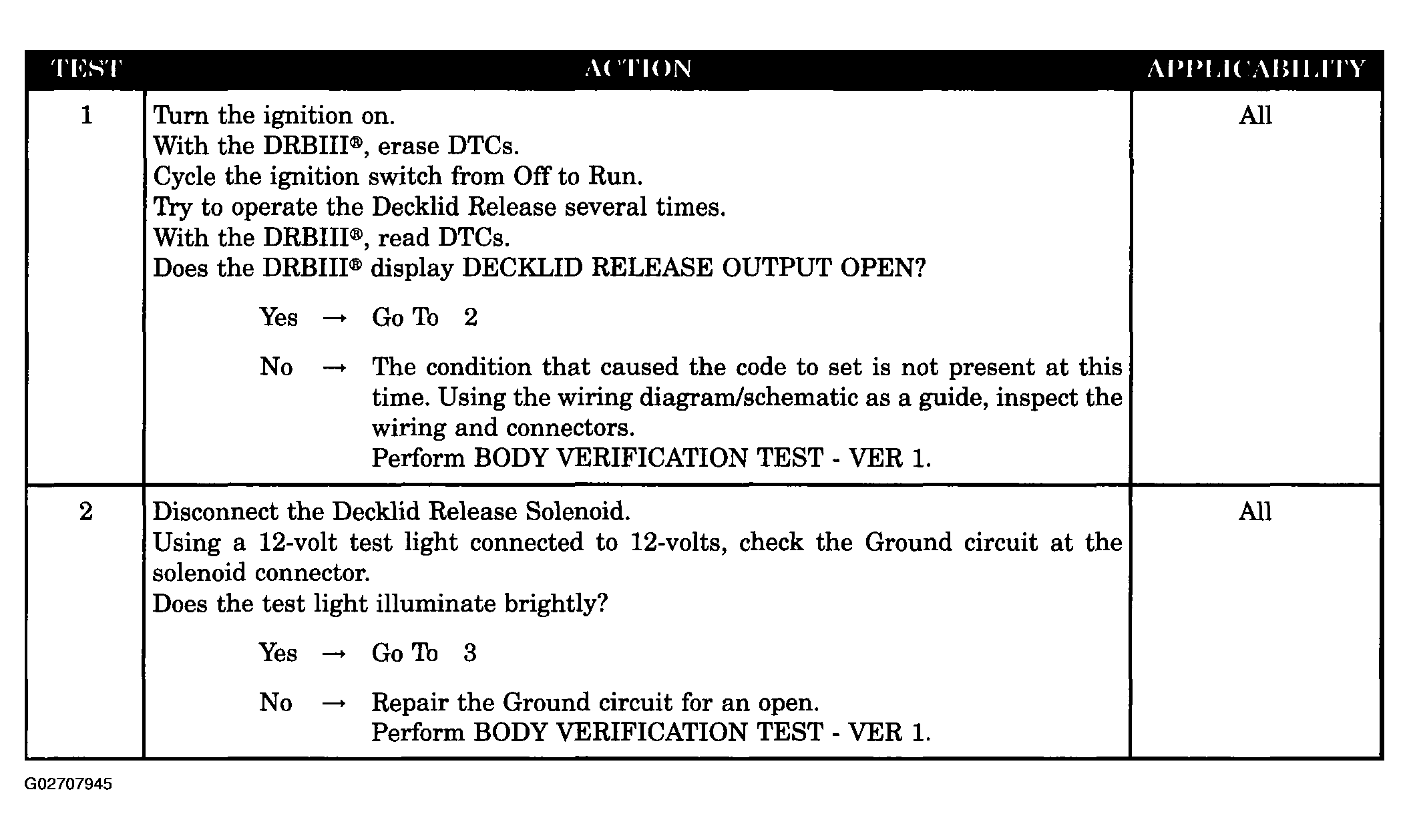

Fig 1: Decklid Release Output Open - Diagnostic Procedure (1 Of 2)
G02707945Courtesy of DAIMLERCHRYSLER CORP.

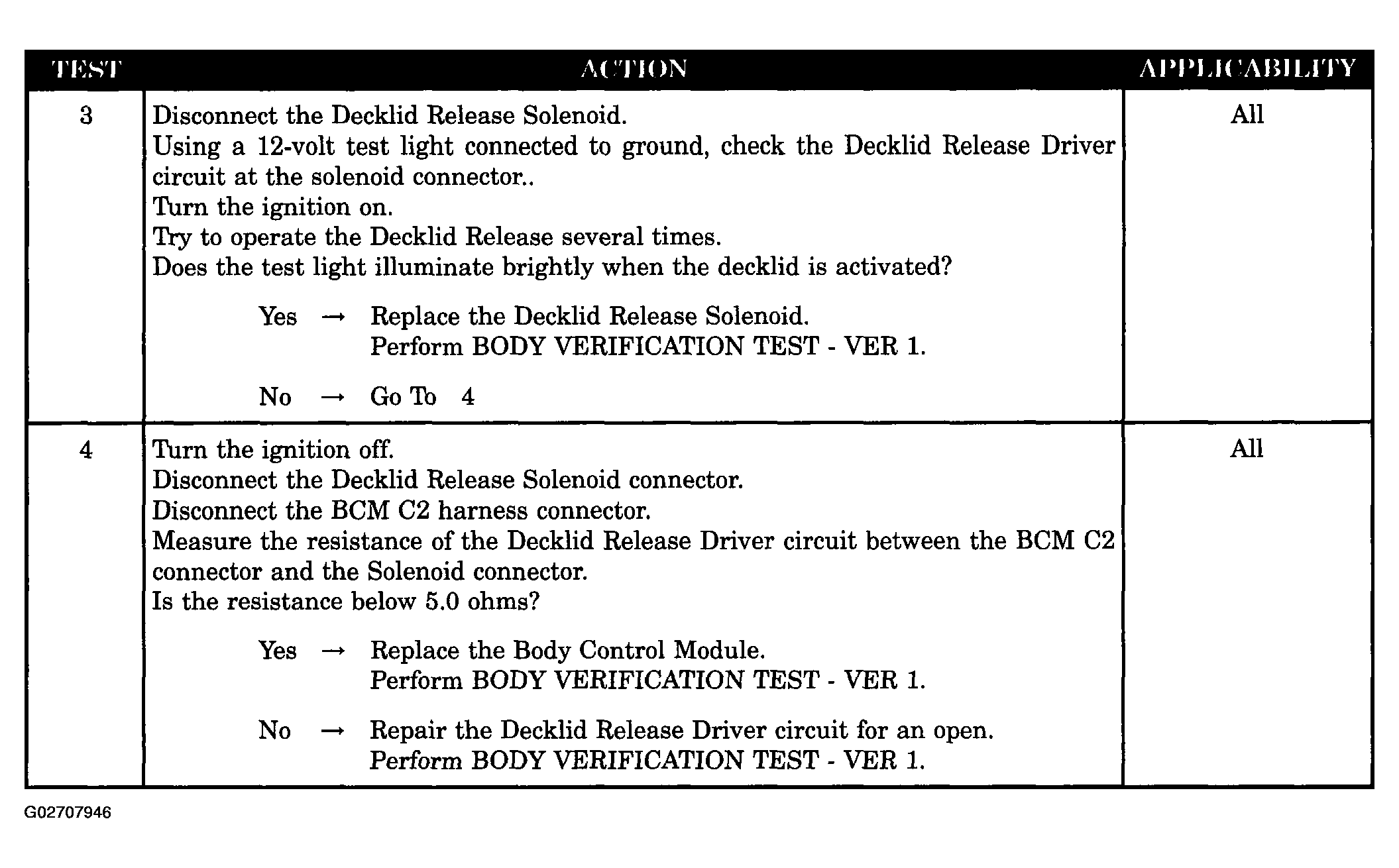

Fig 2: Decklid Release Output Open - Diagnostic Procedure (2 Of 2)
G02707946Courtesy of DAIMLERCHRYSLER CORP.
