Diagnostic Procedure

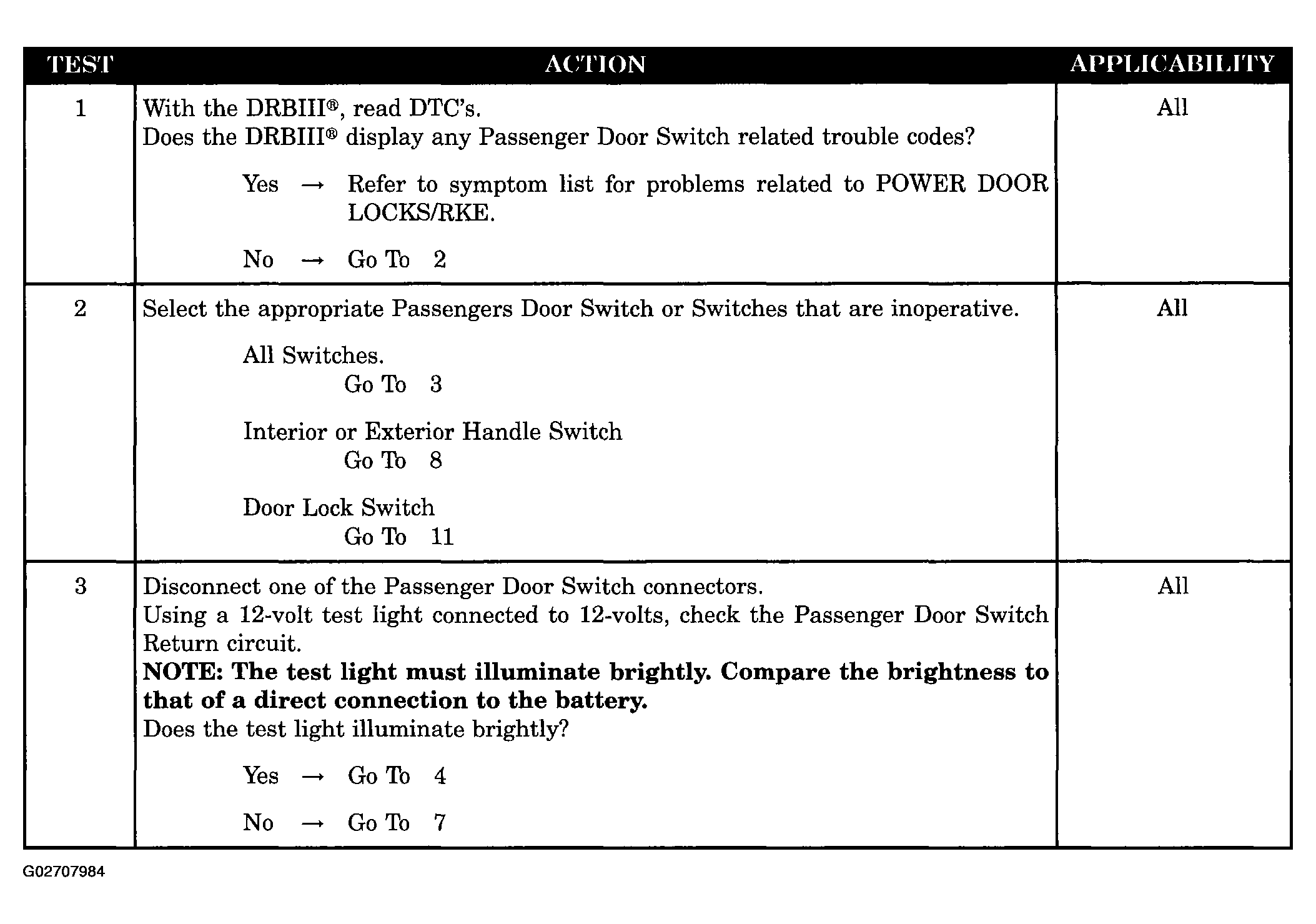

Fig 1: Passenger Door Switch Or Switches Inoperative - Diagnostic Procedure (1 Of 3)
G02707984Courtesy of DAIMLERCHRYSLER CORP.

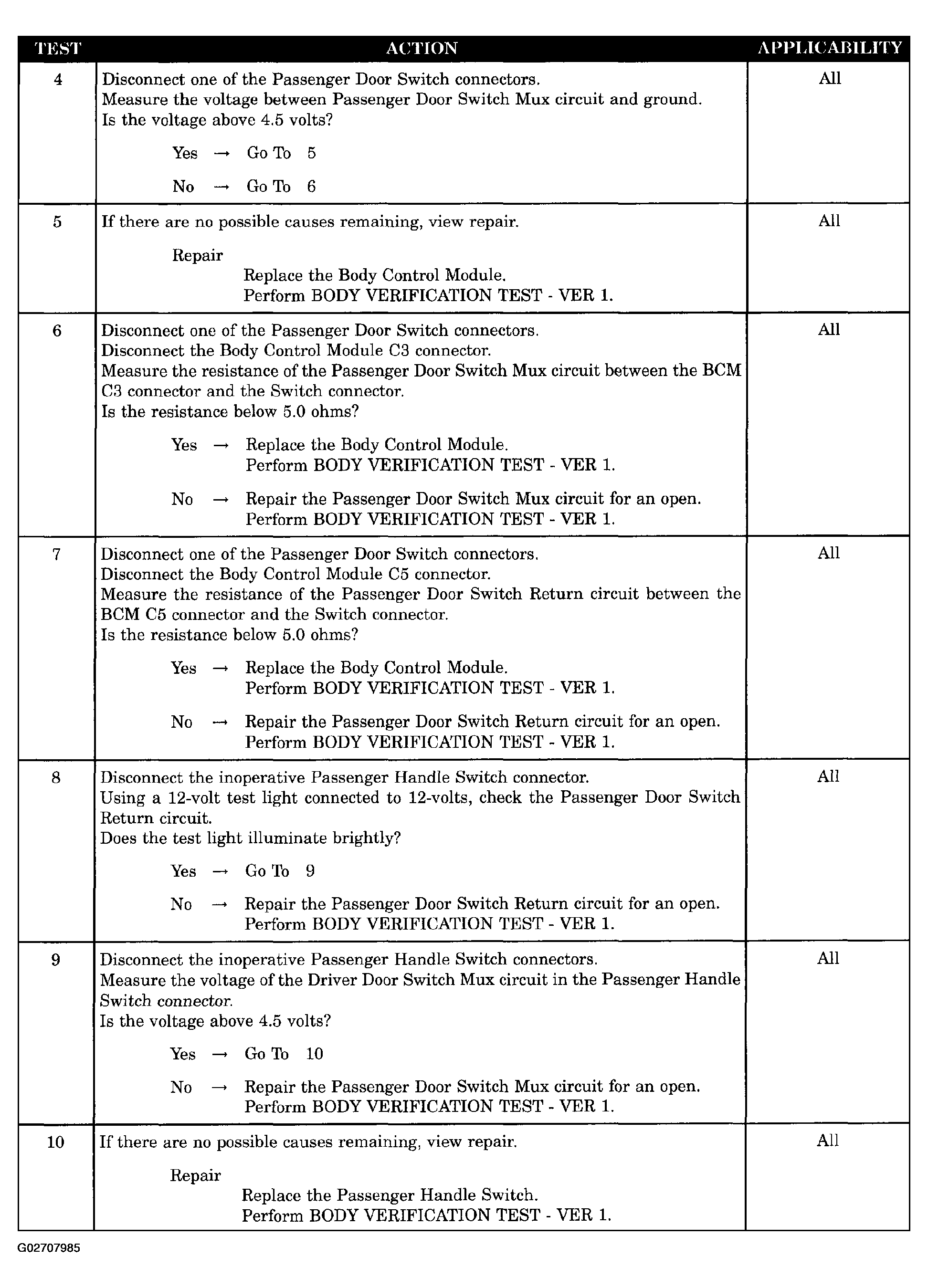

Fig 2: Passenger Door Switch Or Switches Inoperative - Diagnostic Procedure (2 Of 3)
G02707985Courtesy of DAIMLERCHRYSLER CORP.

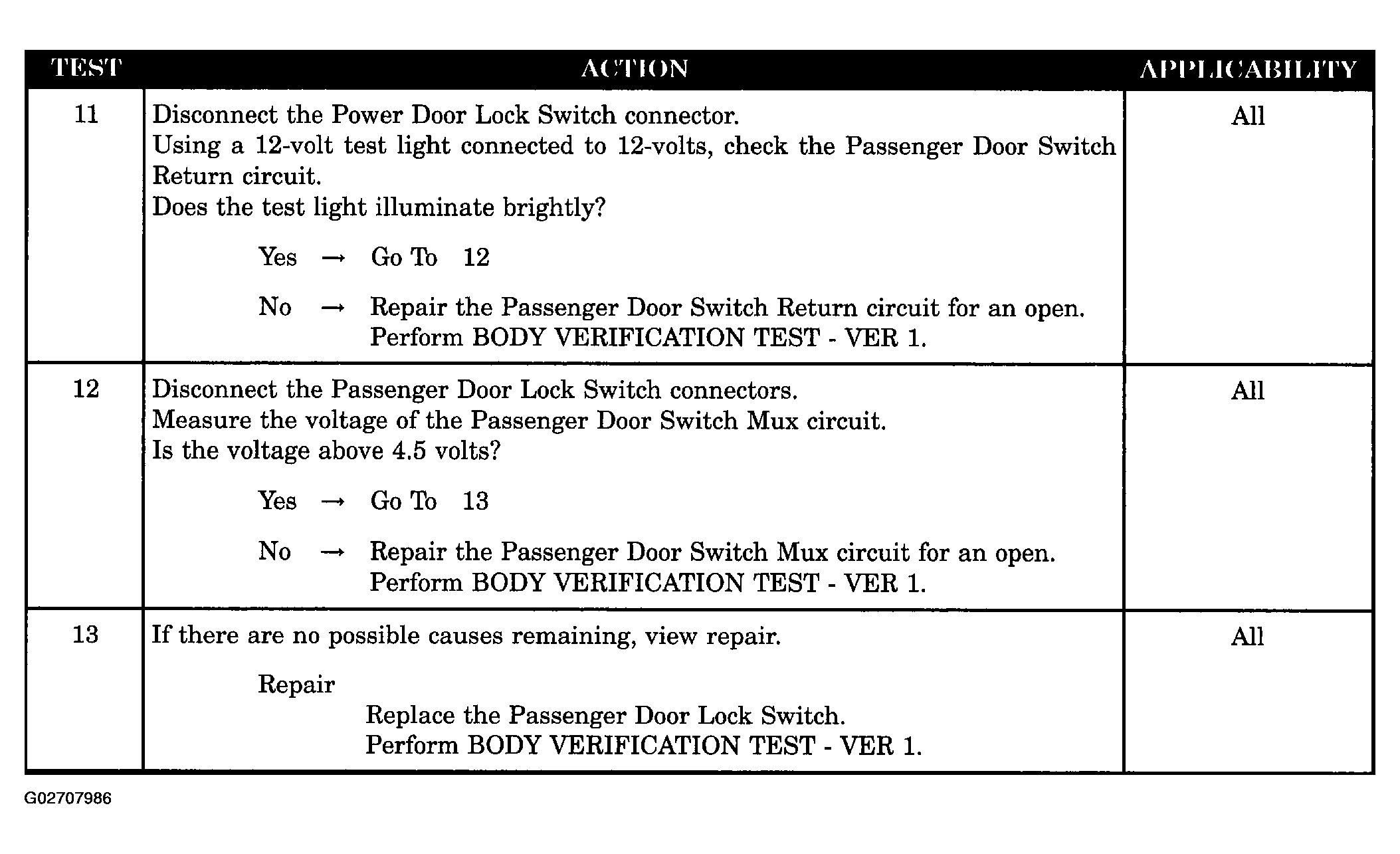

Fig 3: Passenger Door Switch Or Switches Inoperative - Diagnostic Procedure (3 Of 3)
G02707986Courtesy of DAIMLERCHRYSLER CORP.
