Diagnostic Procedure

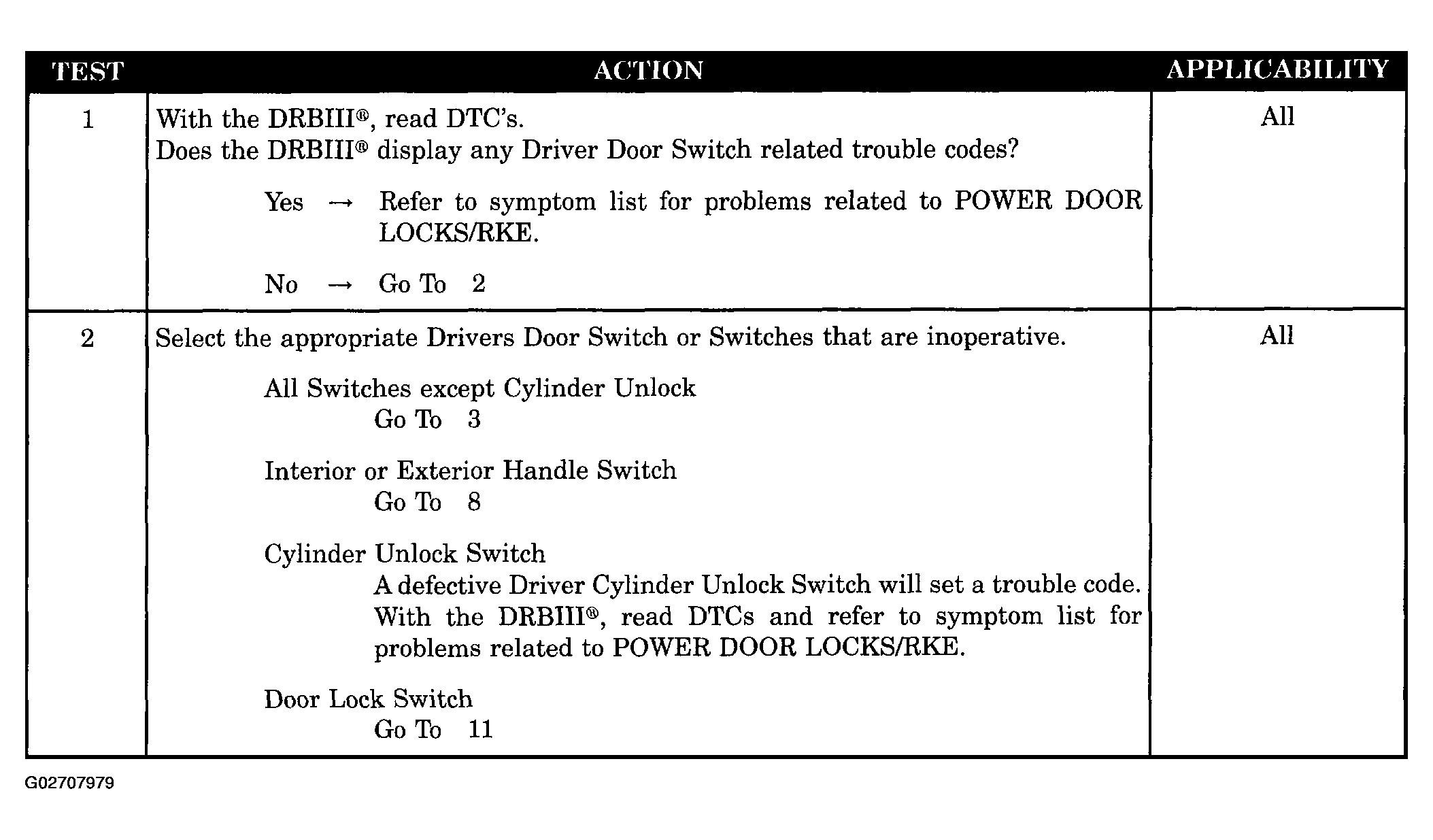

Fig 1: Driver Door Switch Or Switches Inoperative - Diagnostic Procedure (1 Of 3)
G02707979Courtesy of DAIMLERCHRYSLER CORP.

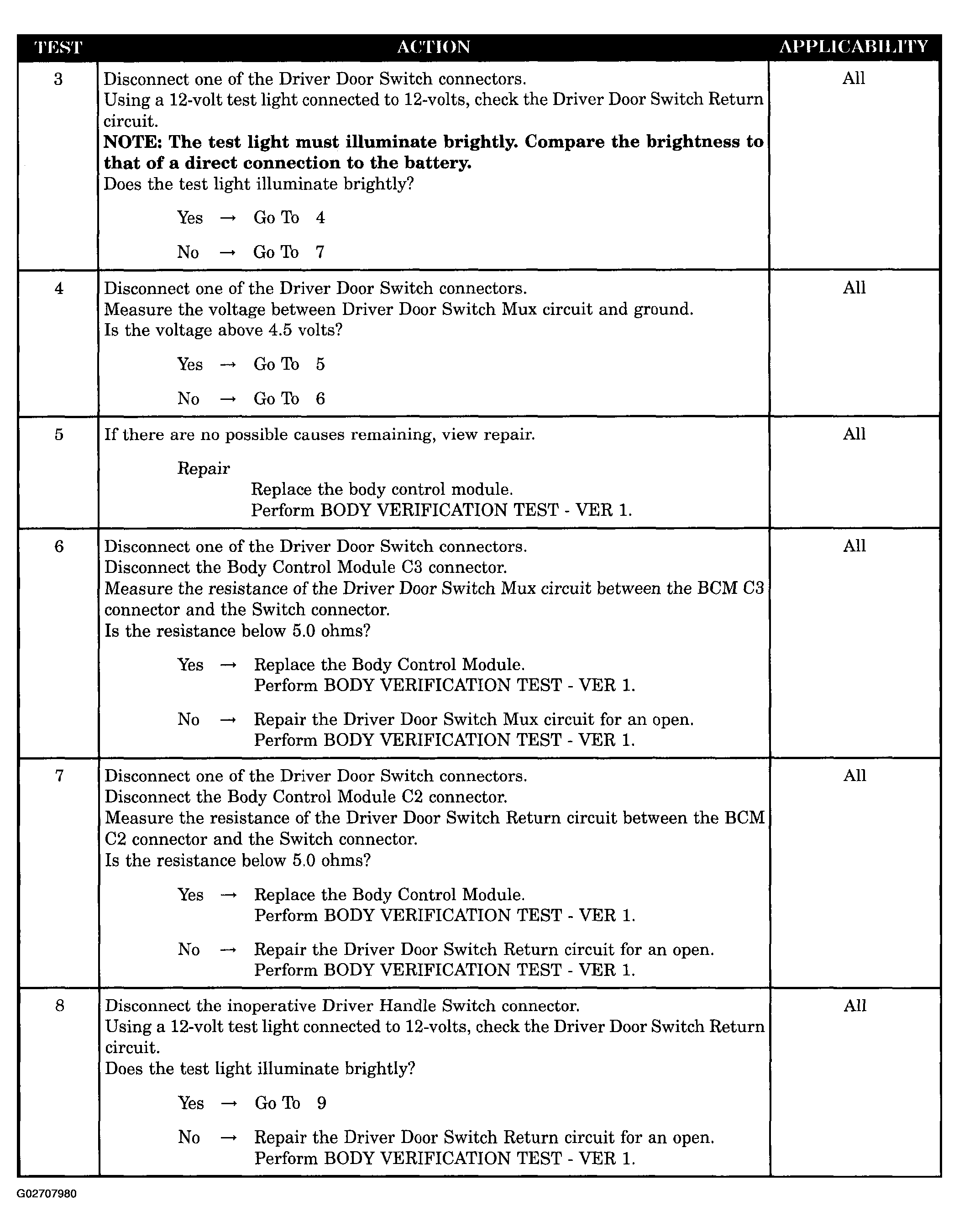

Fig 2: Driver Door Switch Or Switches Inoperative - Diagnostic Procedure (2 Of 3)
G02707980Courtesy of DAIMLERCHRYSLER CORP.

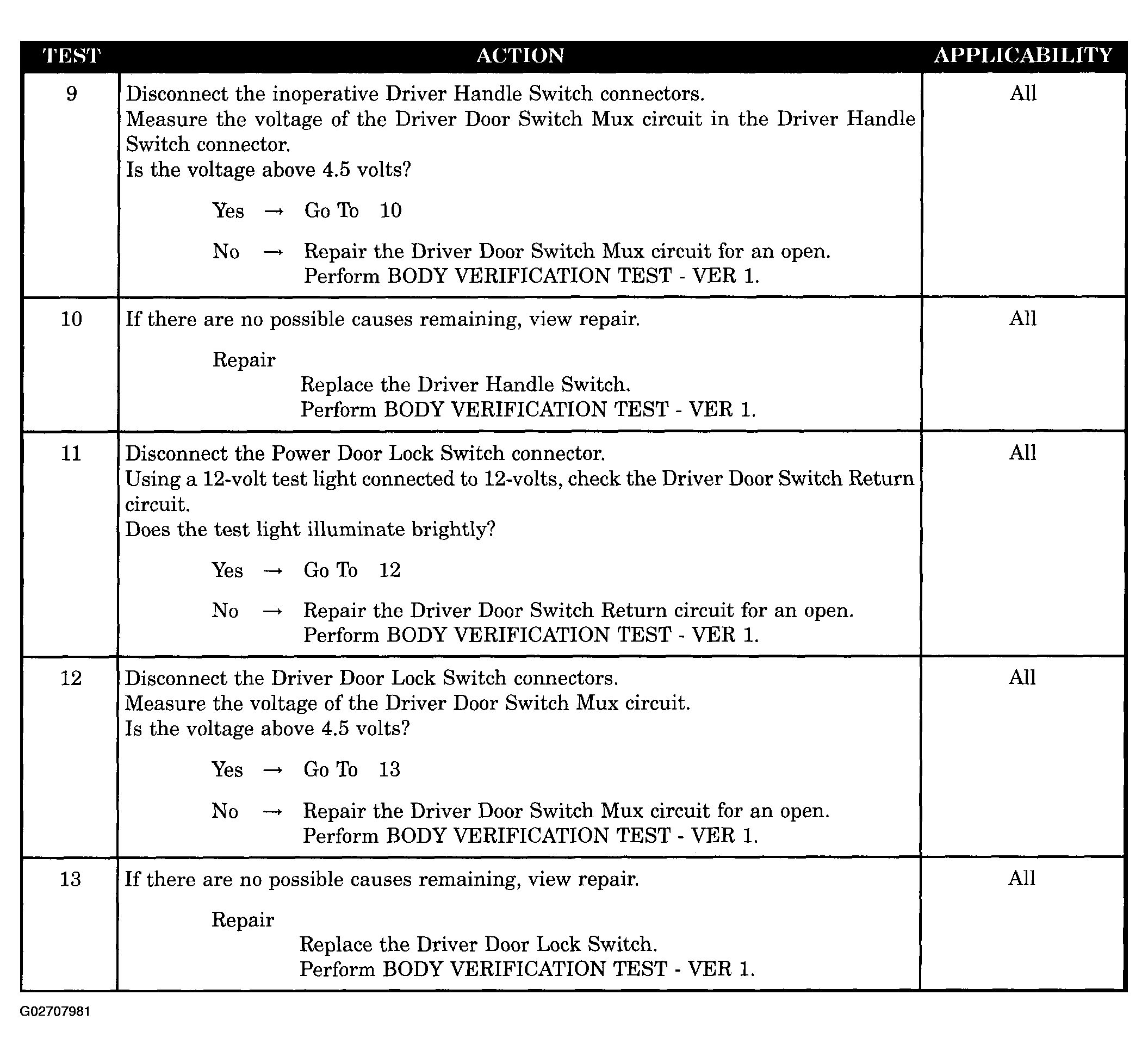

Fig 3: Driver Door Switch Or Switches Inoperative - Diagnostic Procedure (3 Of 3)
G02707981Courtesy of DAIMLERCHRYSLER CORP.
