Diagnostic Procedure

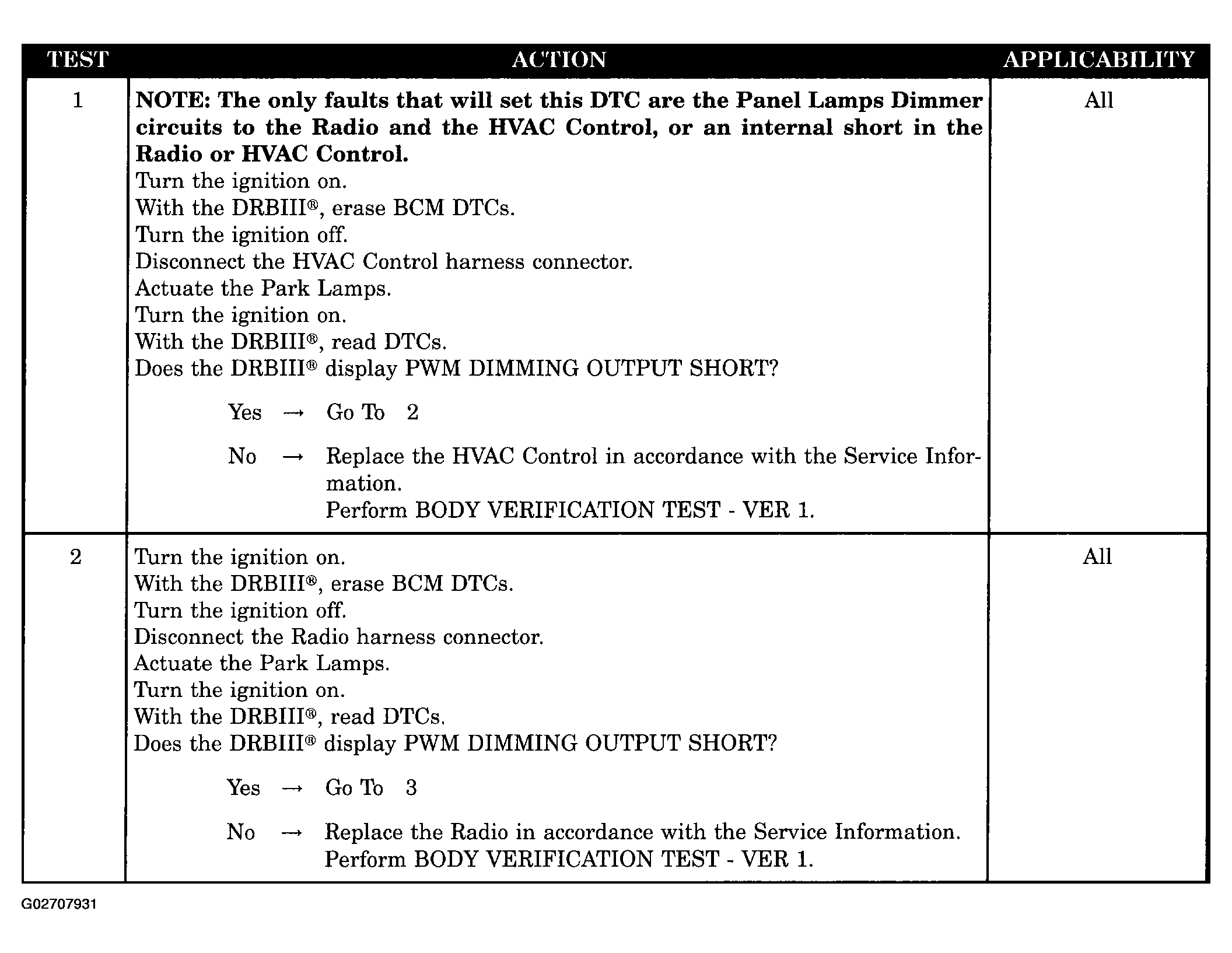

Fig 1: BCM - PWM Dimming Output Short - Diagnostic Procedure (1 Of 2)
G02707931Courtesy of DAIMLERCHRYSLER CORP.

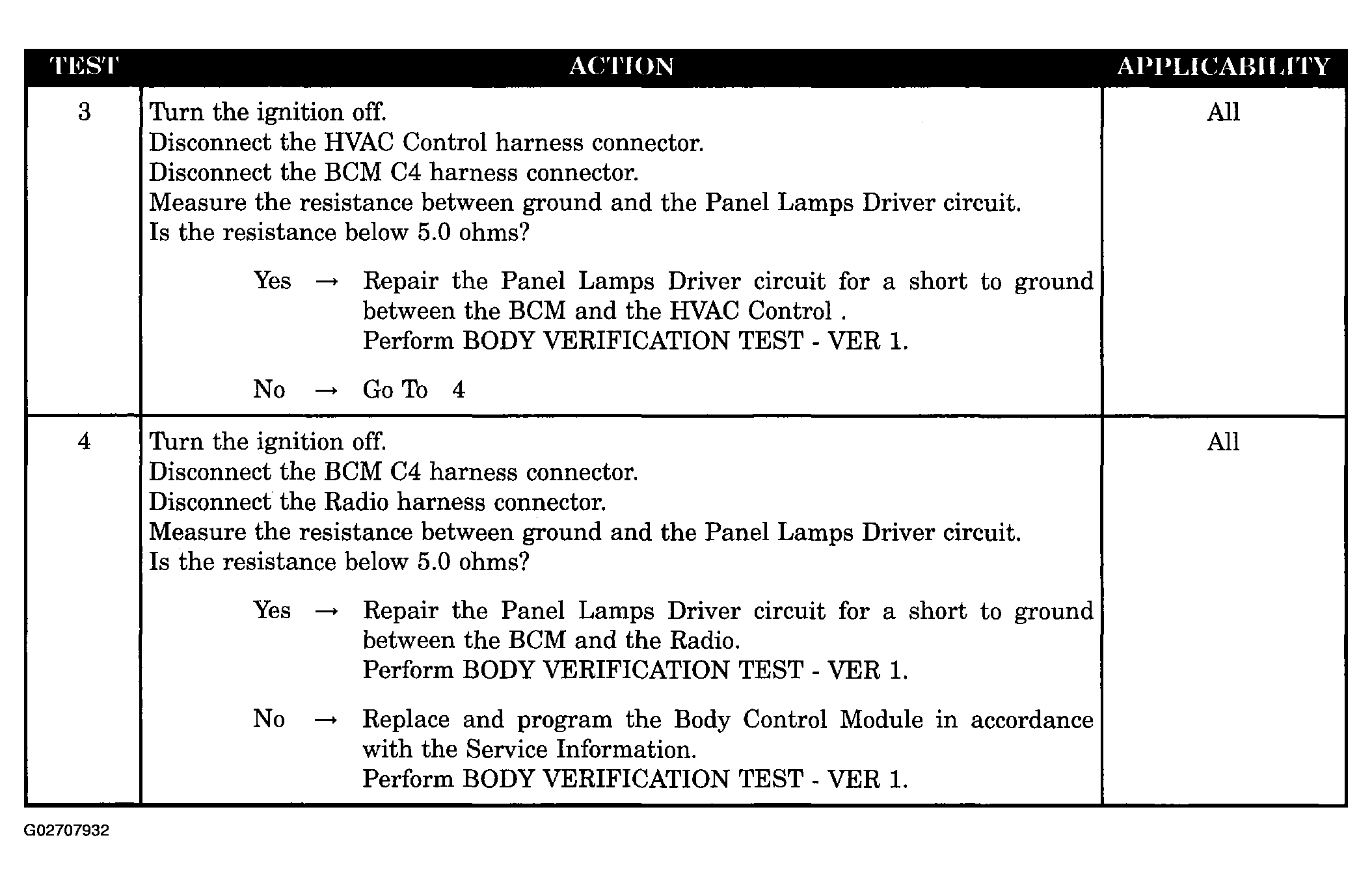

Fig 2: BCM - PWM Dimming Output Short - Diagnostic Procedure (2 Of 2)
G02707932Courtesy of DAIMLERCHRYSLER CORP.
