Diagnostic Procedure

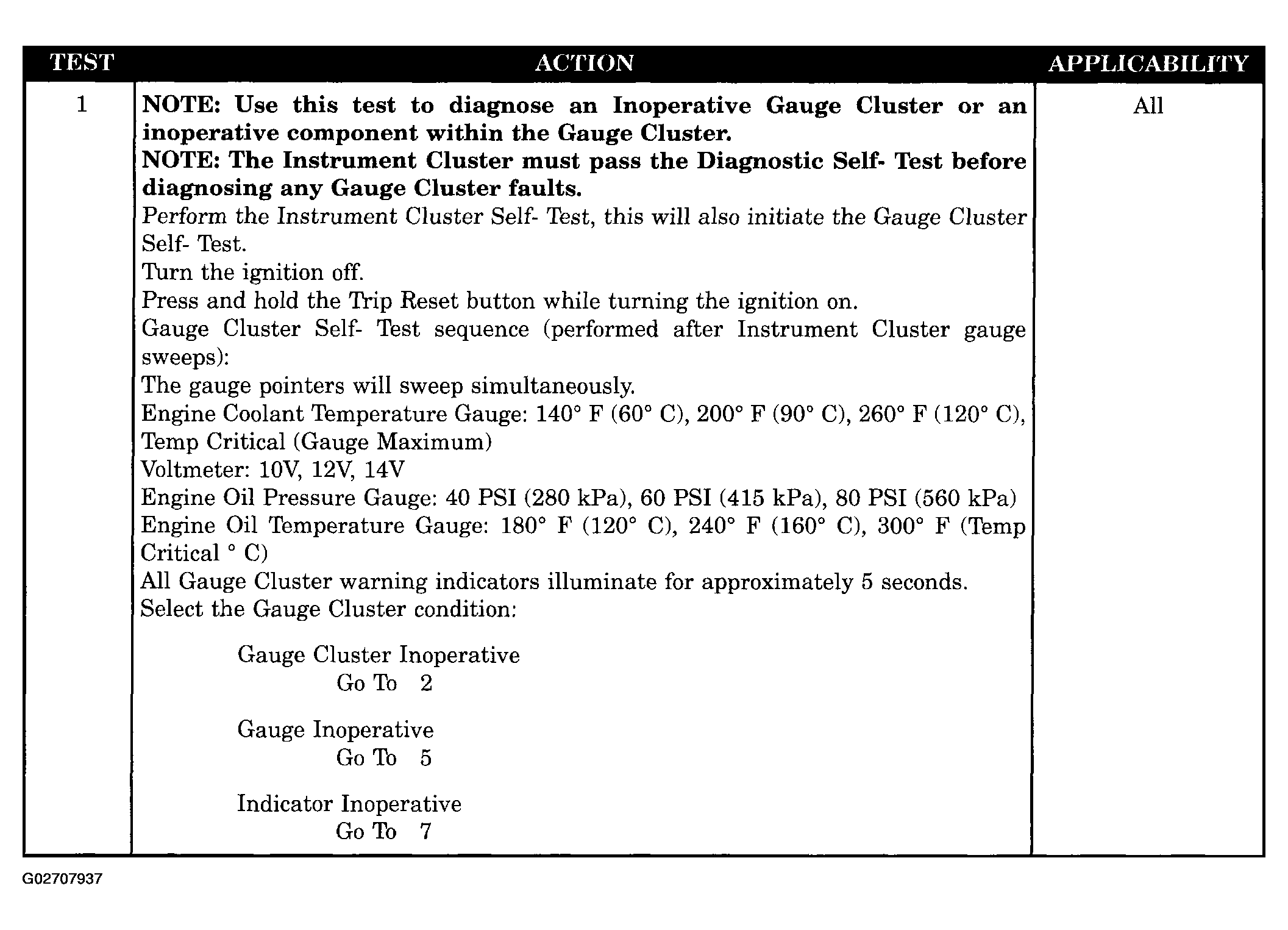

Fig 1: Gauge Cluster Diagnostic Test - Diagnostic Procedure (1 Of 3)
G02707937Courtesy of DAIMLERCHRYSLER CORP.

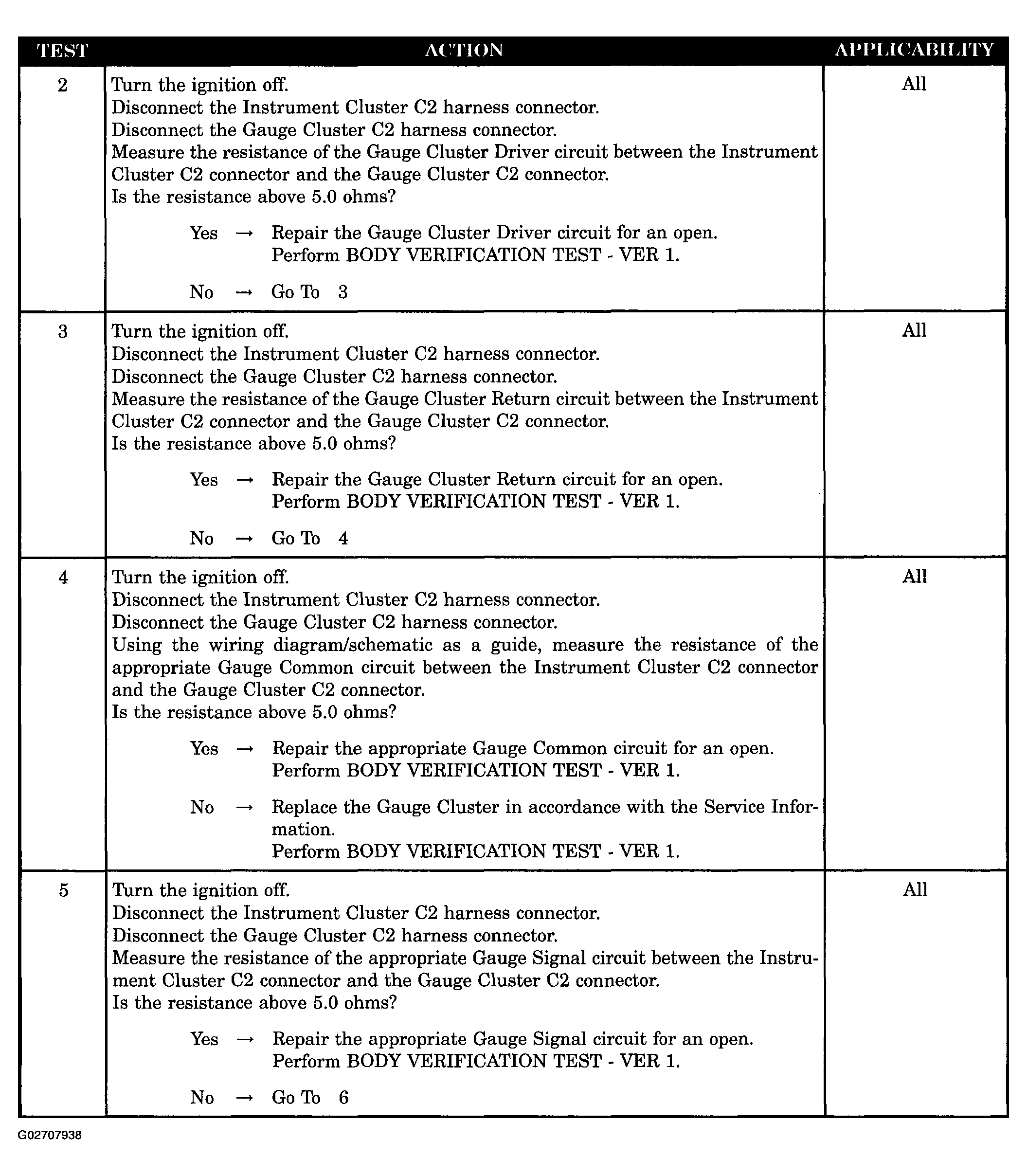

Fig 2: Gauge Cluster Diagnostic Test - Diagnostic Procedure (2 Of 3)
G02707938Courtesy of DAIMLERCHRYSLER CORP.

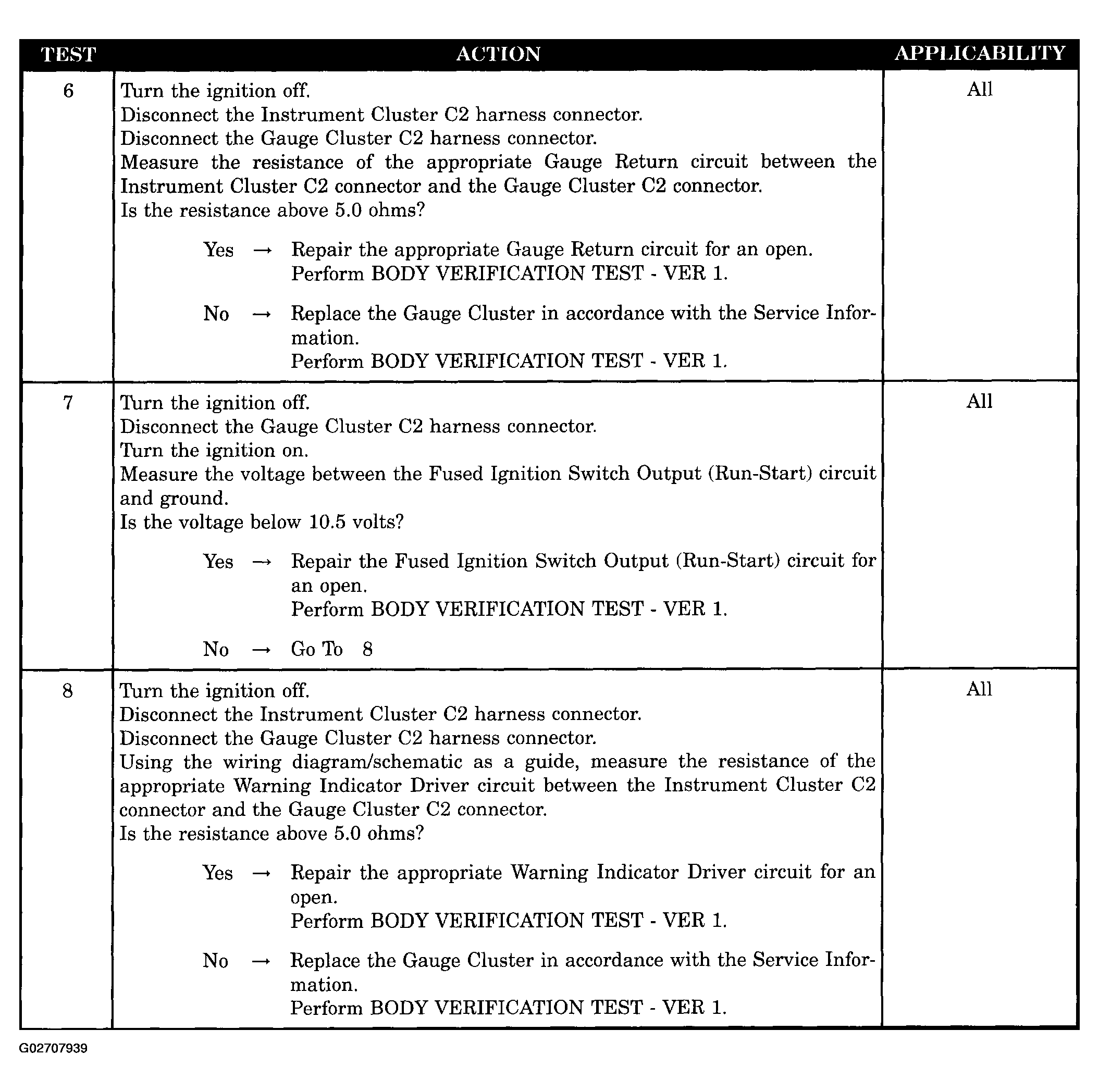

Fig 3: Gauge Cluster Diagnostic Test - Diagnostic Procedure (3 Of 3)
G02707939Courtesy of DAIMLERCHRYSLER CORP.
