Symptom: BCM - RUN/START HARDWIRE INPUT MISMATCH
>>
Diagnostic Procedure
Diagnostic Procedure

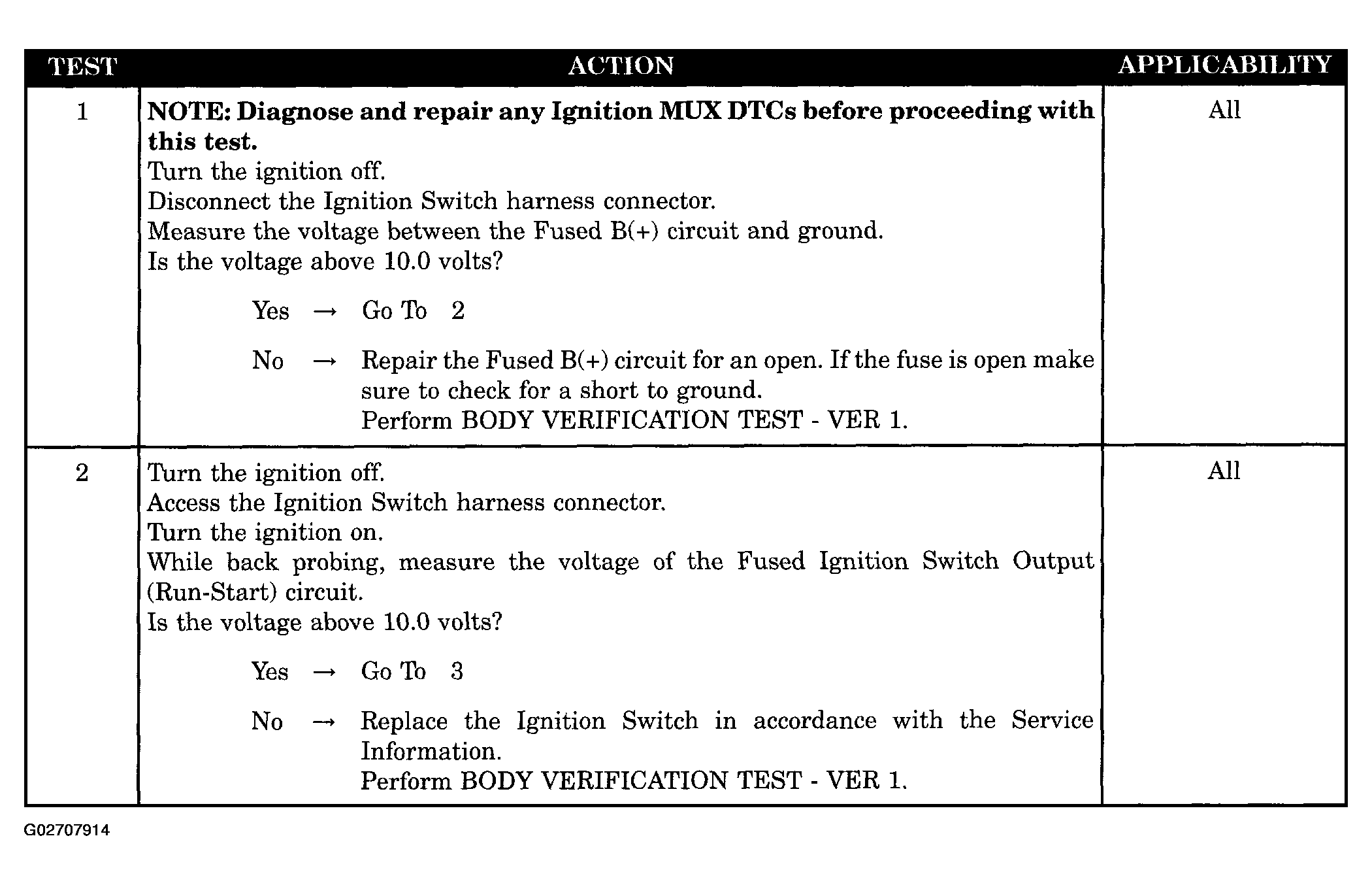

Fig 1: BCM - Run/Start Hardwire Input Mismatch - Diagnostic Procedure (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

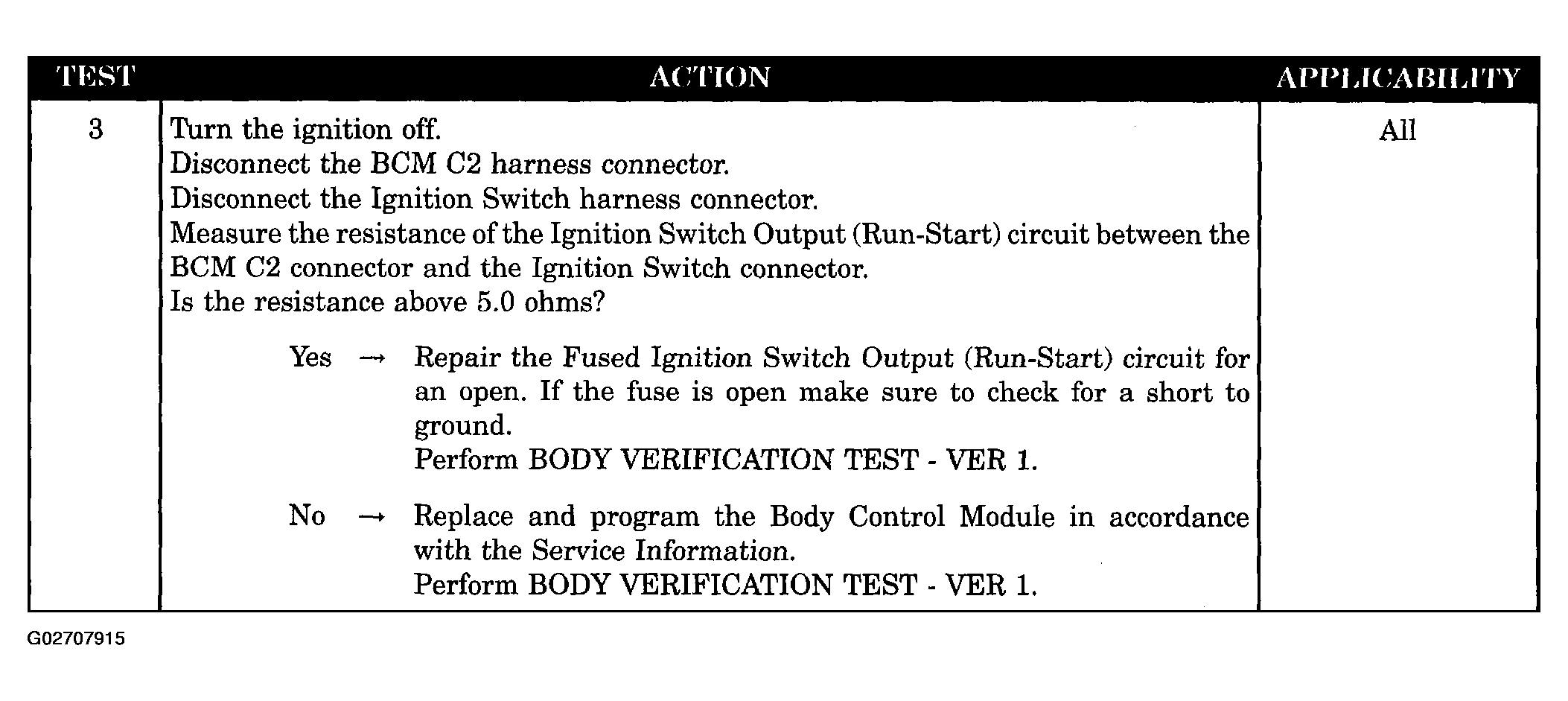

Fig 2: BCM - Run/Start Hardwire Input Mismatch - Diagnostic Procedure (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
