Diagnostic Procedure

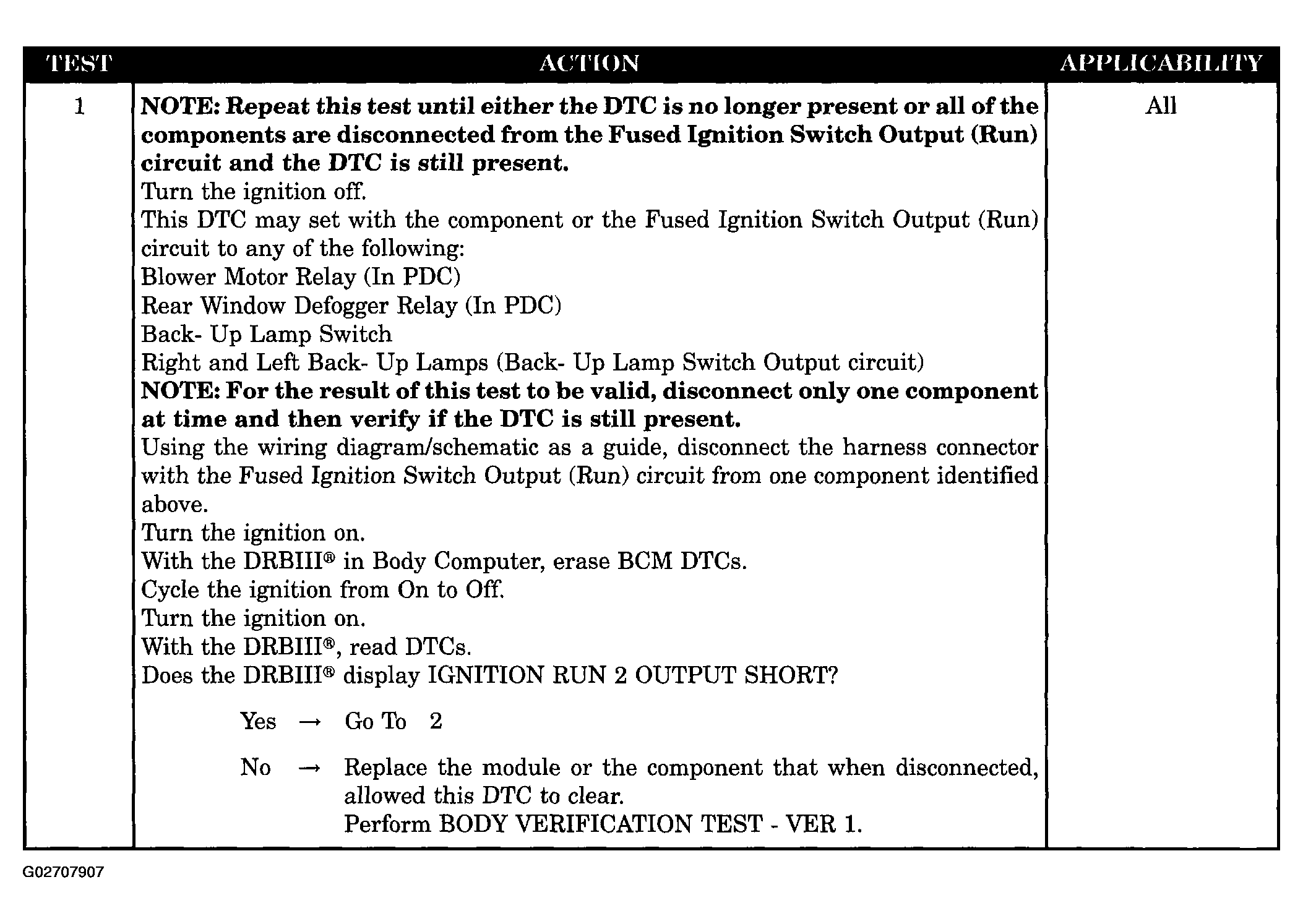

Fig 1: BCM - Ignition Run 2 Short - Diagnostic Procedure (1 Of 2)
G02707907Courtesy of DAIMLERCHRYSLER CORP.

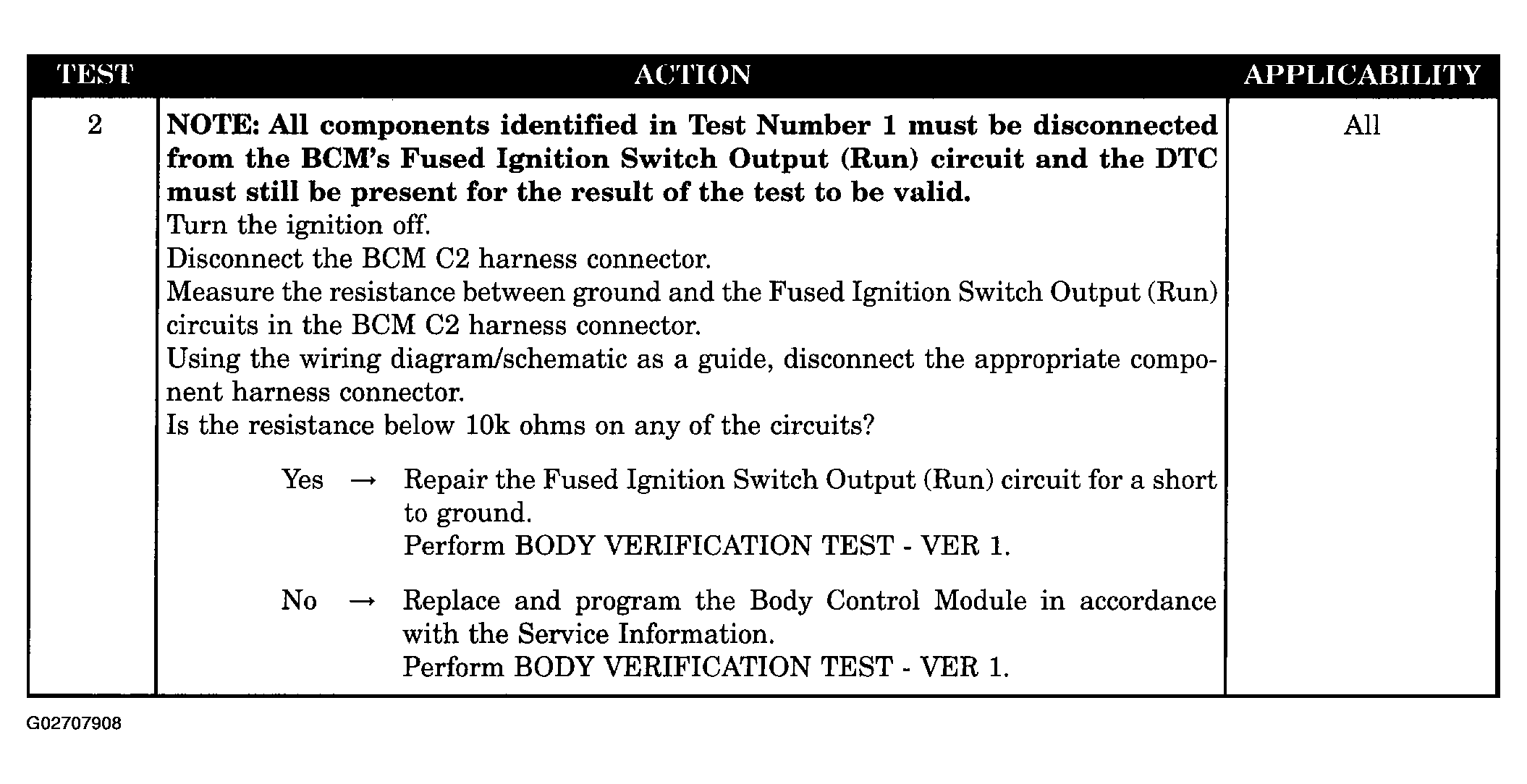

Fig 2: BCM - Ignition Run 2 Short - Diagnostic Procedure (2 Of 2)
G02707908Courtesy of DAIMLERCHRYSLER CORP.
