Diagnostic Procedure

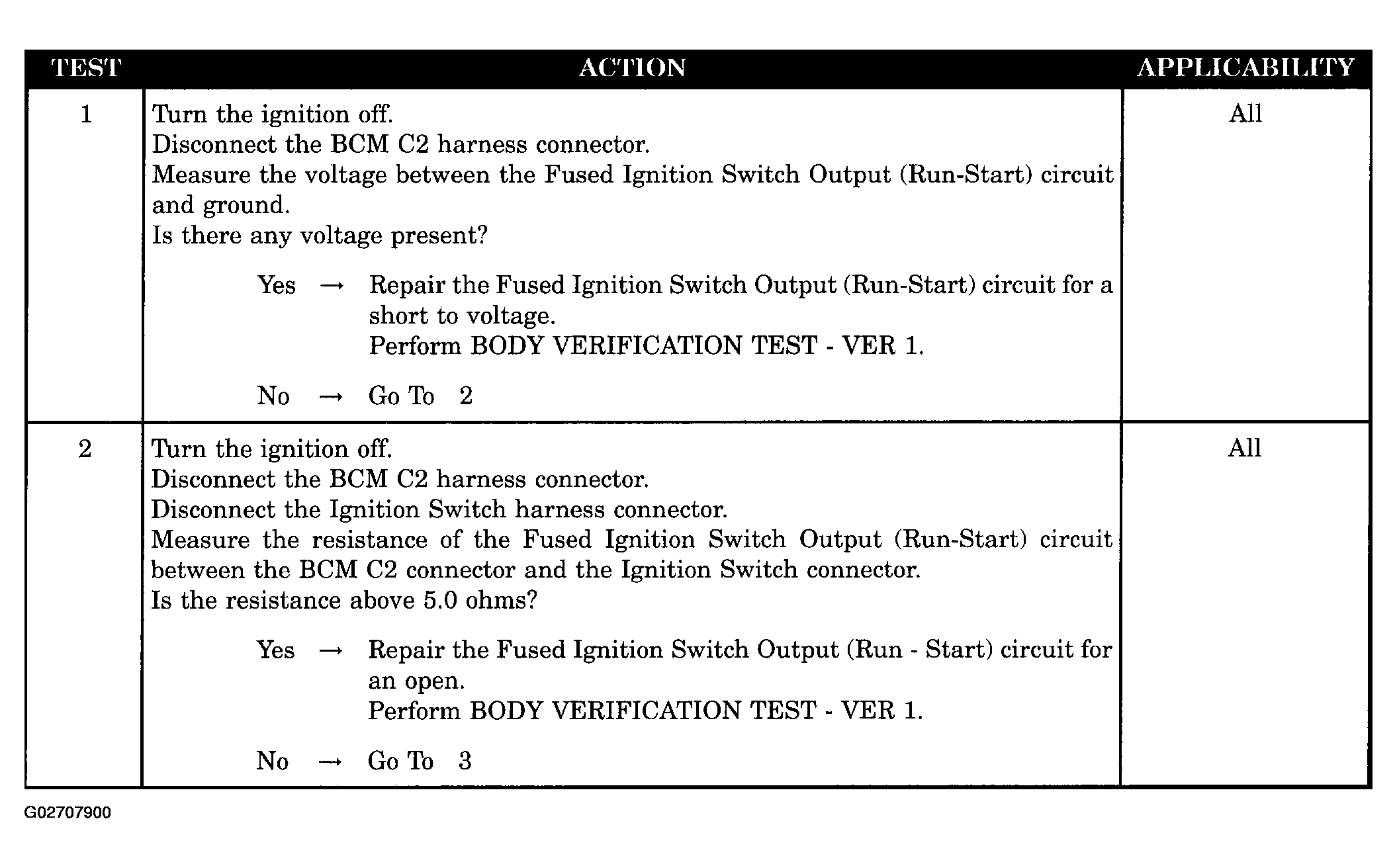

Fig 1: BCM - Ignition MUX Switch Input Mismatch - Diagnostic Procedure (1 Of 2)
G02707900Courtesy of DAIMLERCHRYSLER CORP.

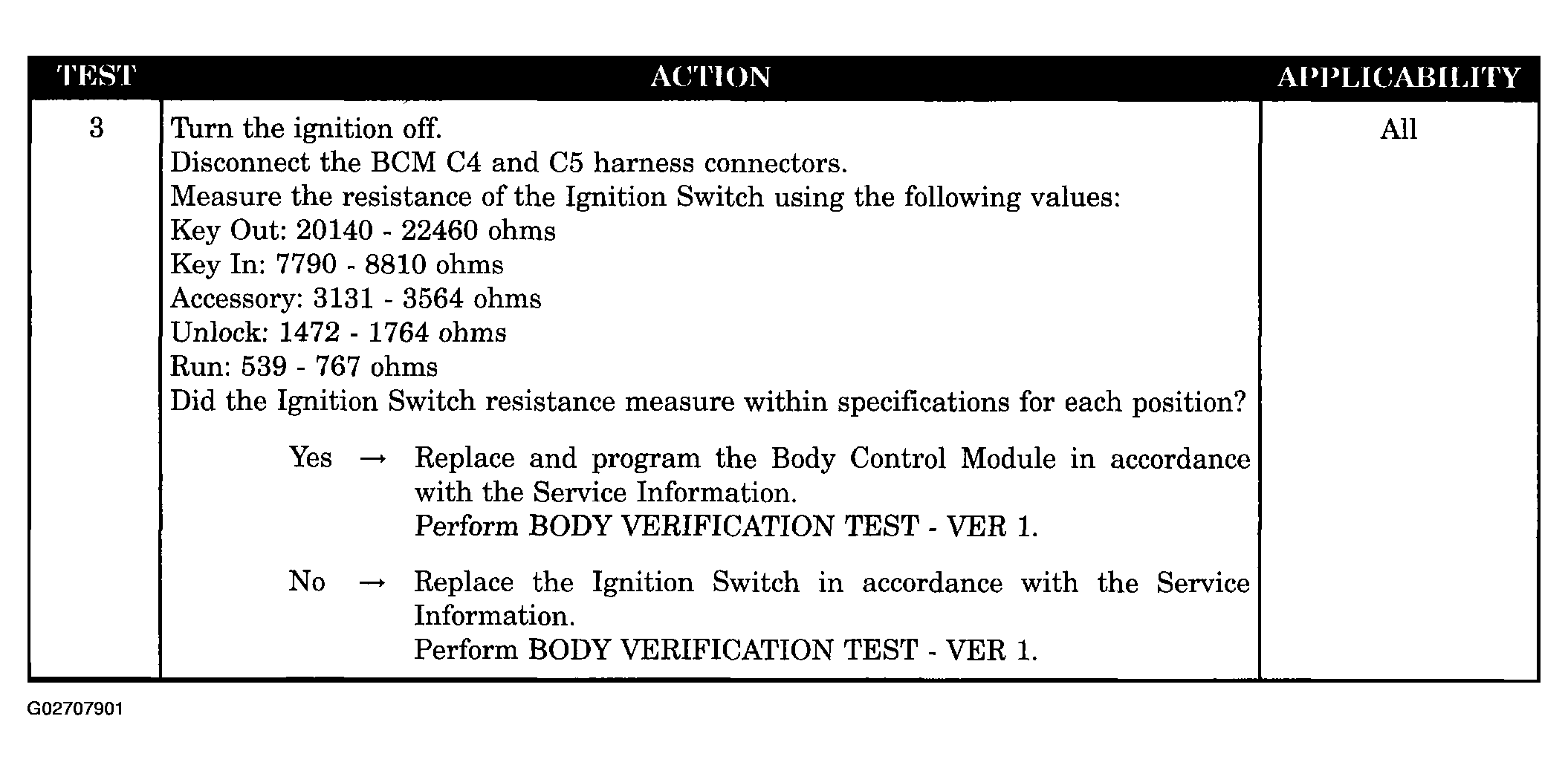

Fig 2: BCM - Ignition MUX Switch Input Mismatch - Diagnostic Procedure (2 Of 2)
G02707901Courtesy of DAIMLERCHRYSLER CORP.
