Diagnostic Procedure

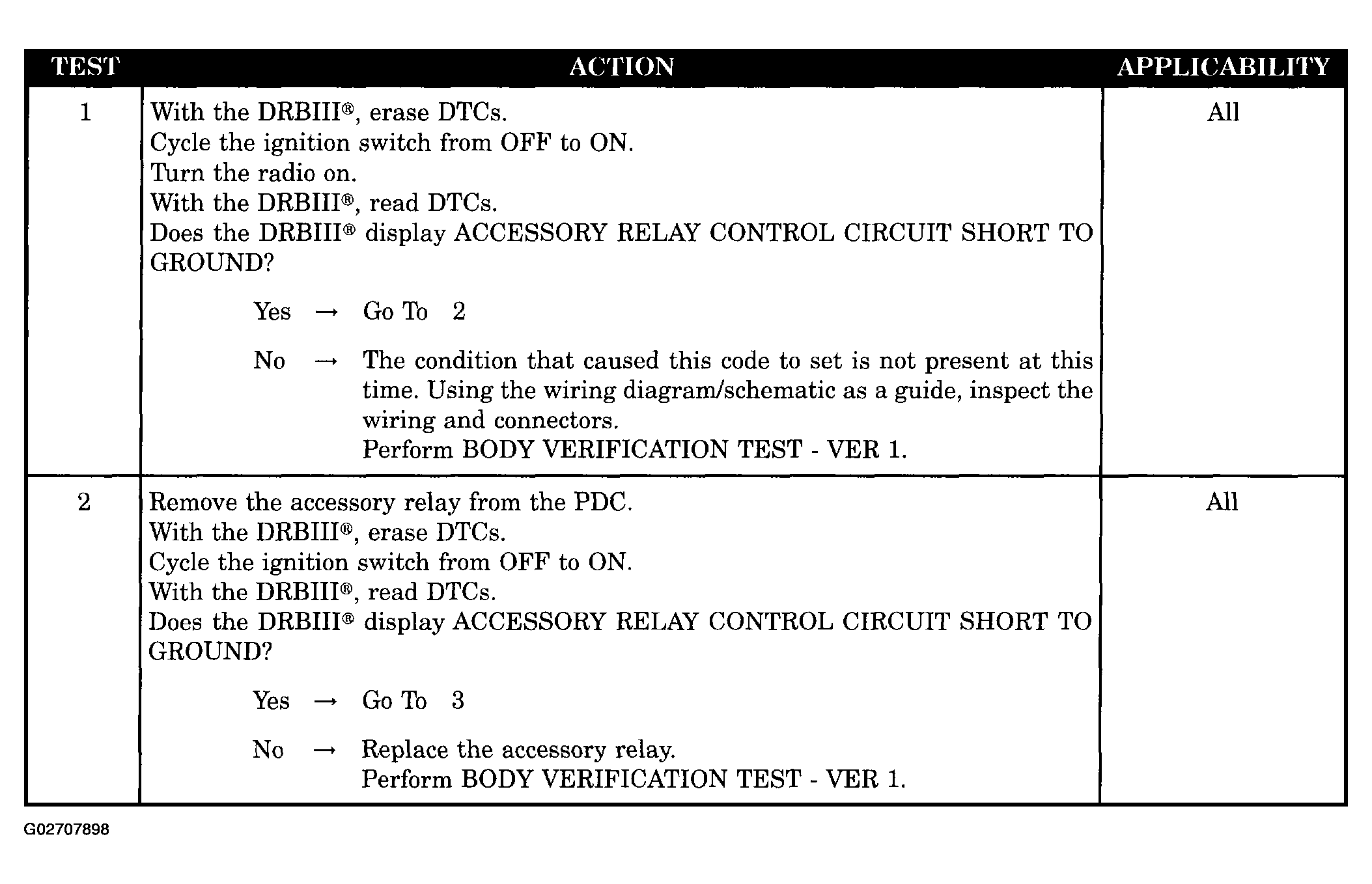

Fig 1: BCM - Accessory Relay Control Circuit Short To Ground - Diagnostic Procedure (1 Of 2)
G02707898Courtesy of DAIMLERCHRYSLER CORP.

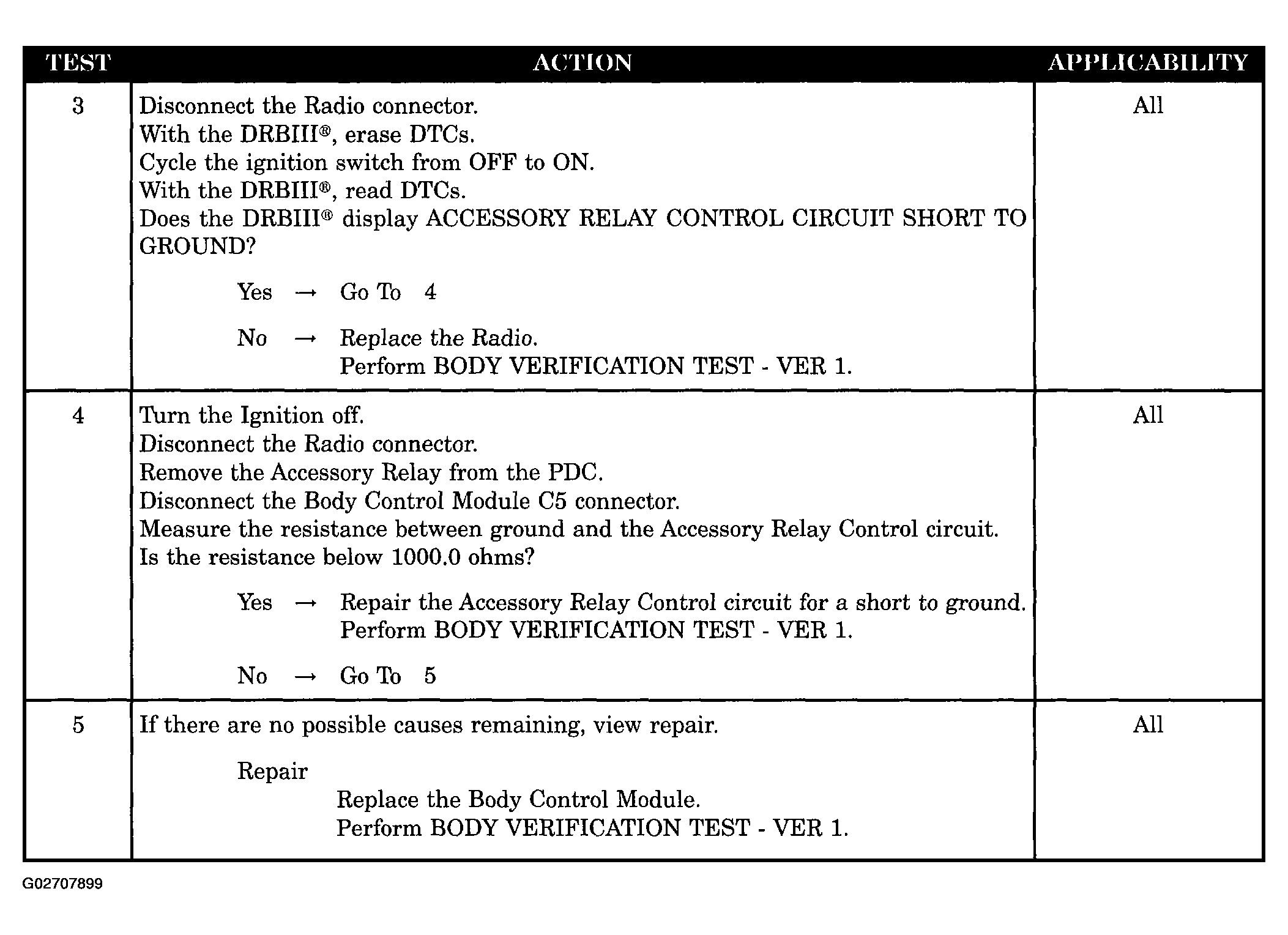

Fig 2: BCM - Accessory Relay Control Circuit Short To Ground - Diagnostic Procedure (2 Of 2)
G02707899Courtesy of DAIMLERCHRYSLER CORP.
