Diagnostic Procedure

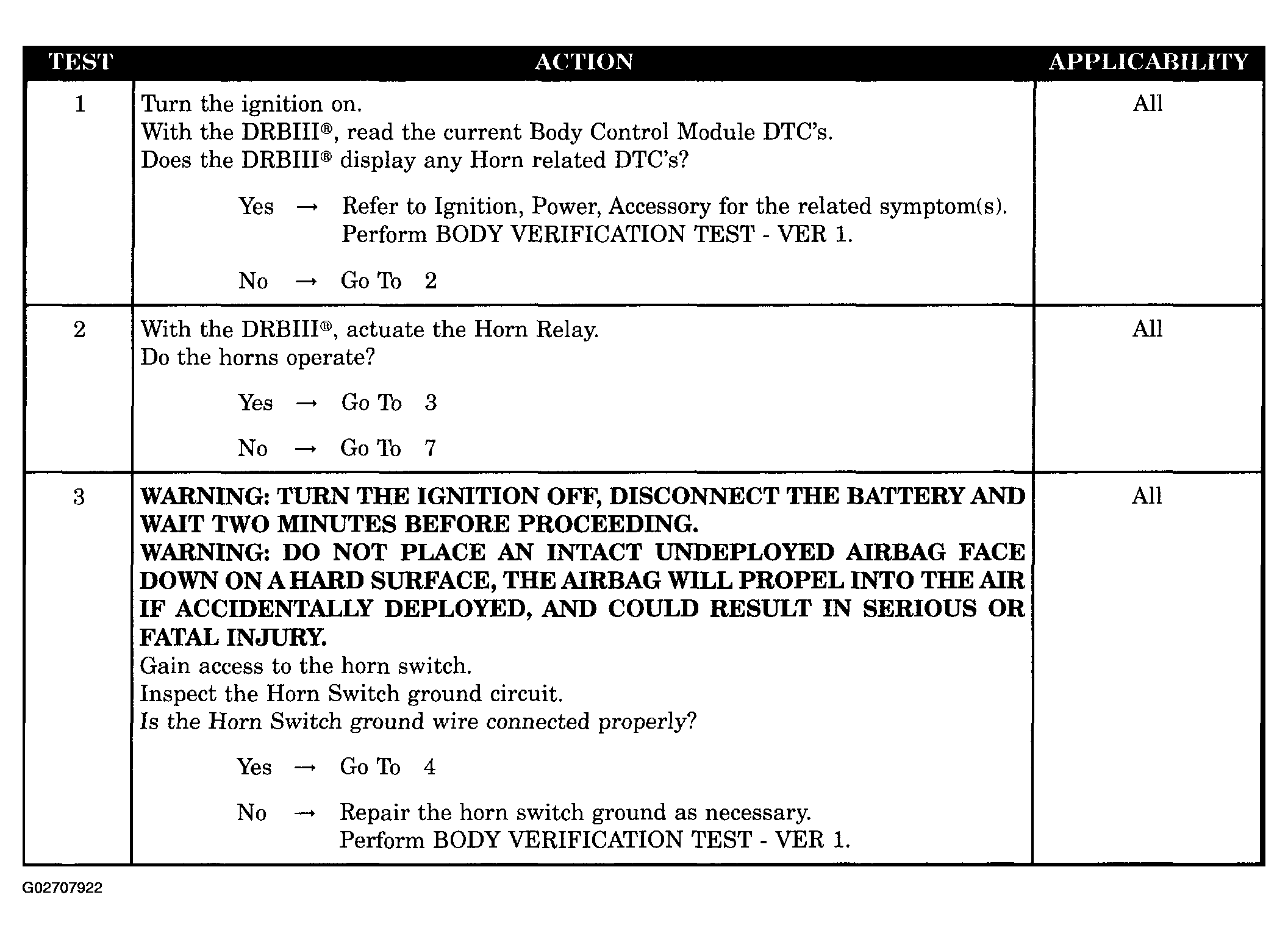

Fig 1: Horns Inoperative - Diagnostic Procedure (1 Of 3)
G02707922Courtesy of DAIMLERCHRYSLER CORP.

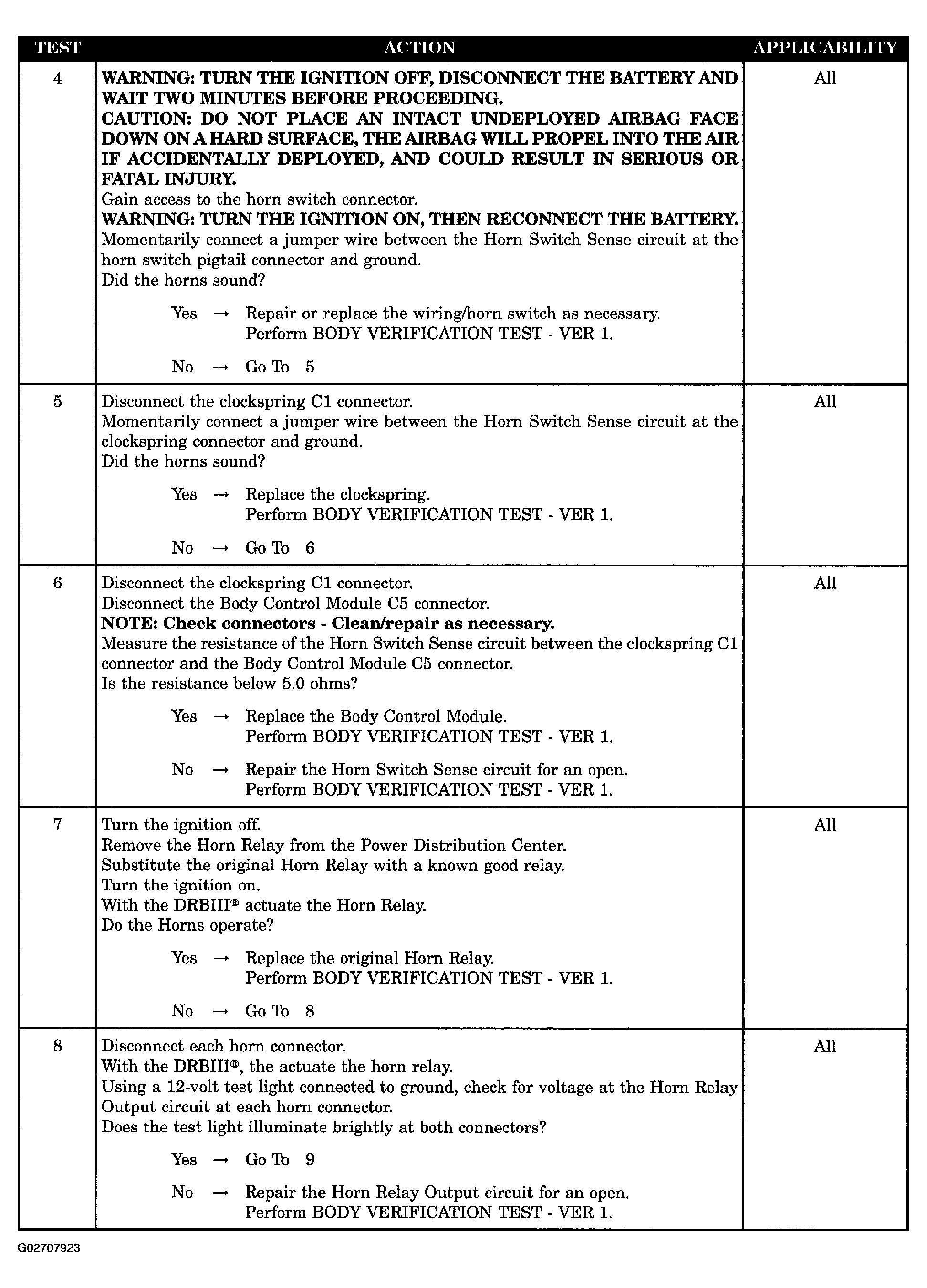

Fig 2: Horns Inoperative - Diagnostic Procedure (2 Of 3)
G02707923Courtesy of DAIMLERCHRYSLER CORP.

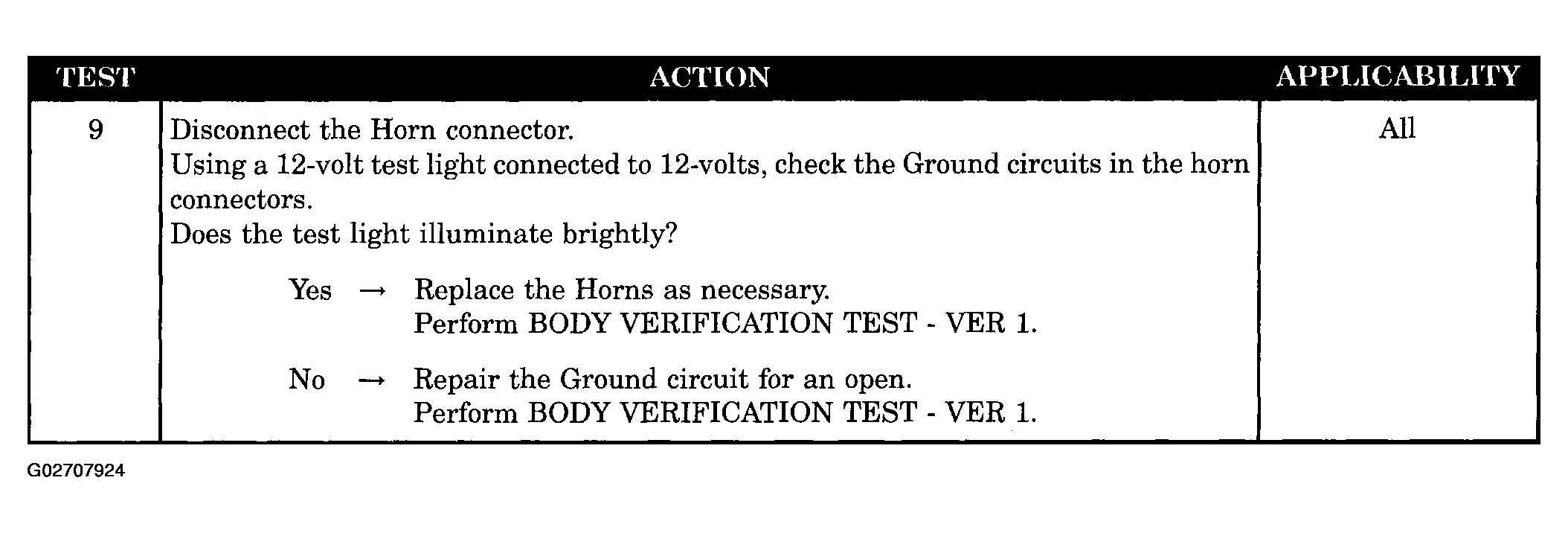

Fig 3: Horns Inoperative - Diagnostic Procedure (3 Of 3)
G02707924Courtesy of DAIMLERCHRYSLER CORP.
