Diagnostic Procedure

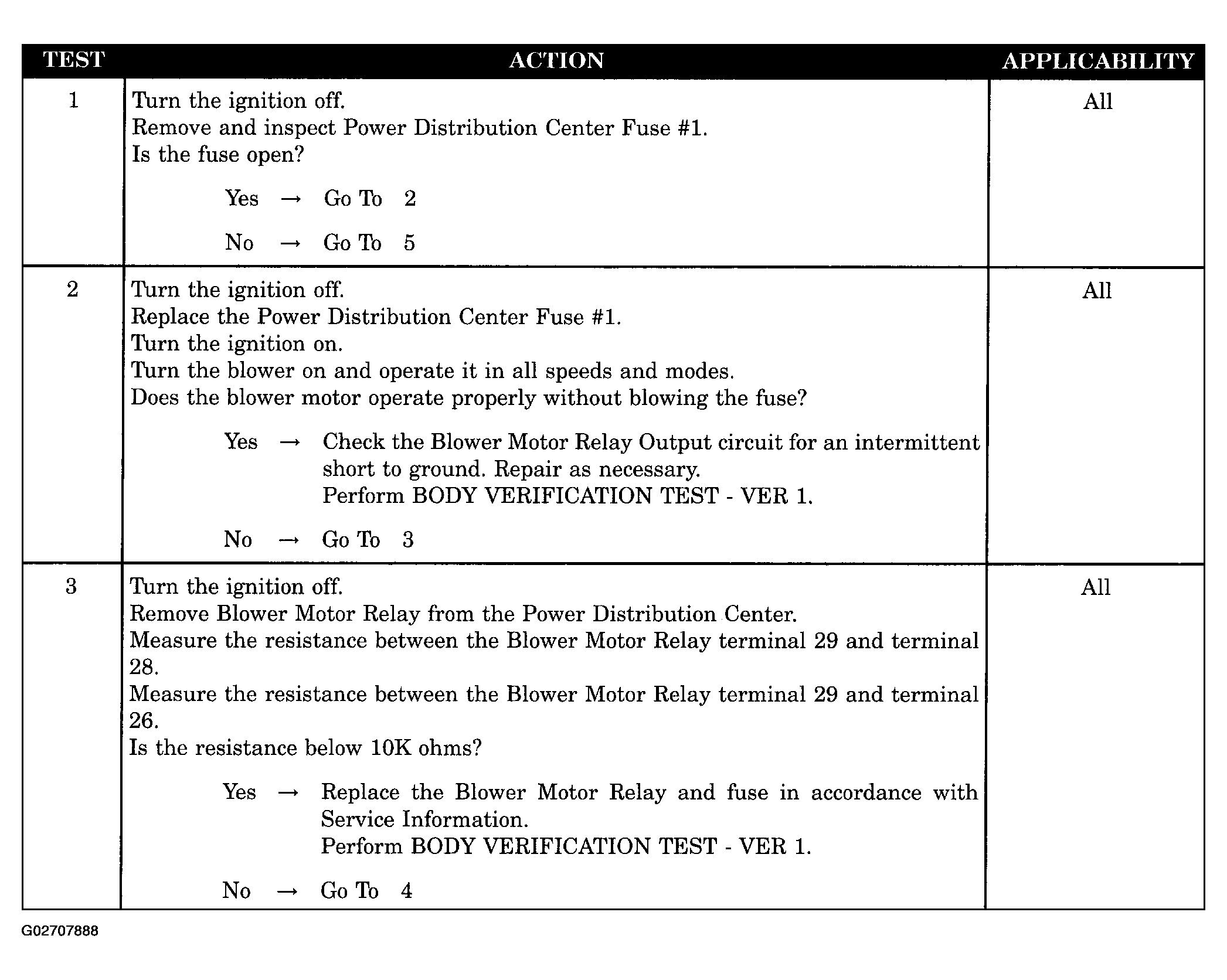

Fig 1: Blower Motor Inoperative - Diagnostic Procedure (1 Of 3)
G02707888Courtesy of DAIMLERCHRYSLER CORP.

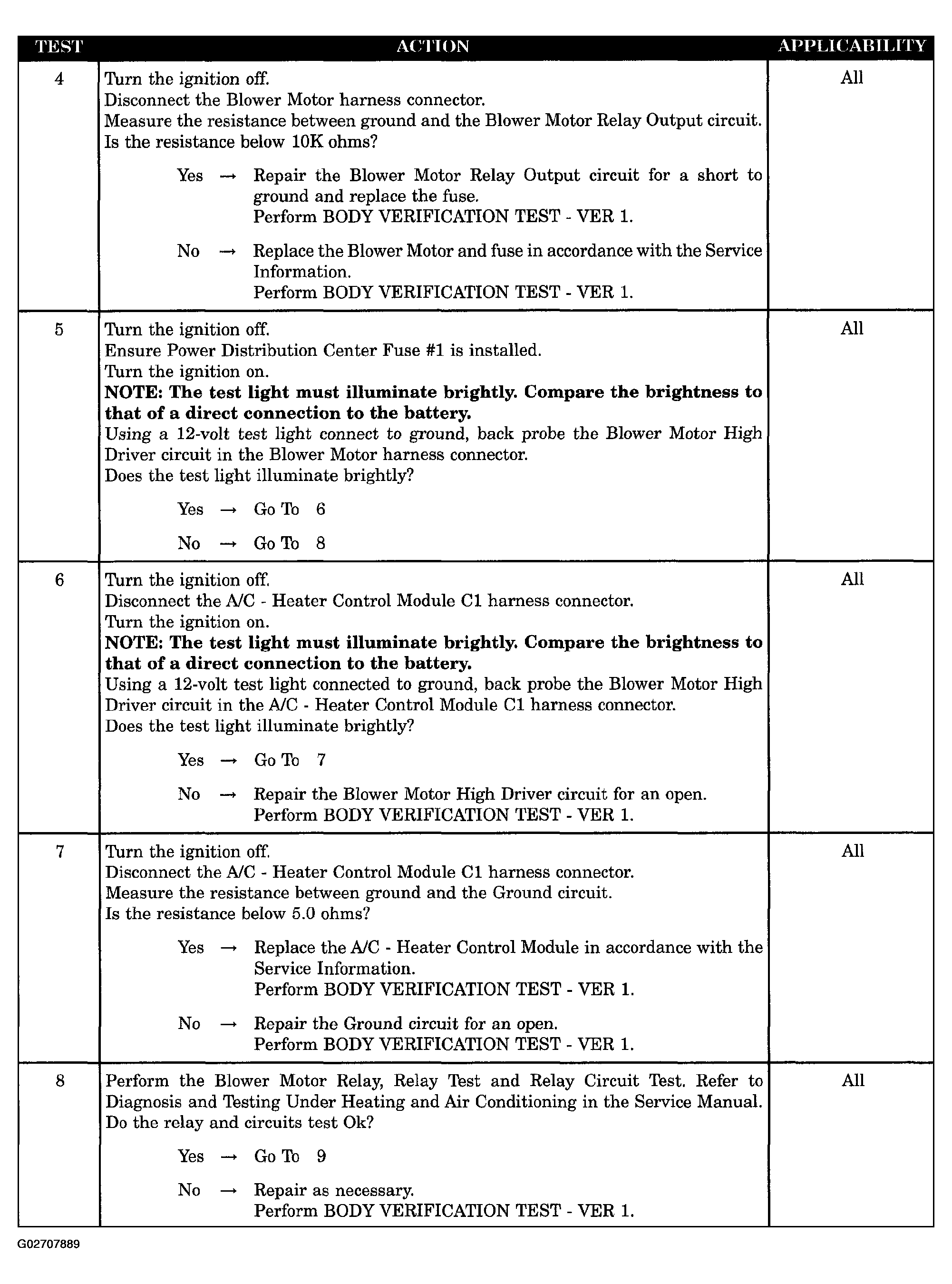

Fig 2: Blower Motor Inoperative - Diagnostic Procedure (2 Of 3)
G02707889Courtesy of DAIMLERCHRYSLER CORP.

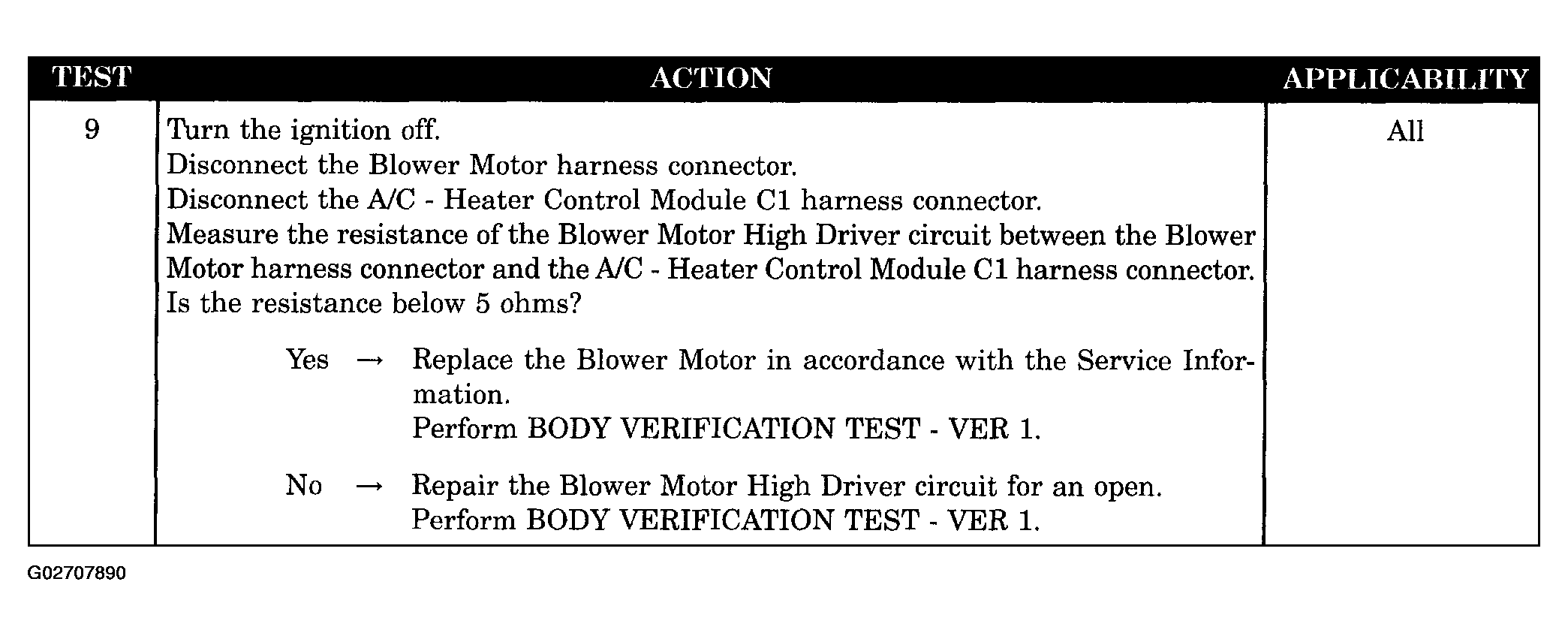

Fig 3: Blower Motor Inoperative - Diagnostic Procedure (3 Of 3)
G02707890Courtesy of DAIMLERCHRYSLER CORP.
