Diagnostic Procedure

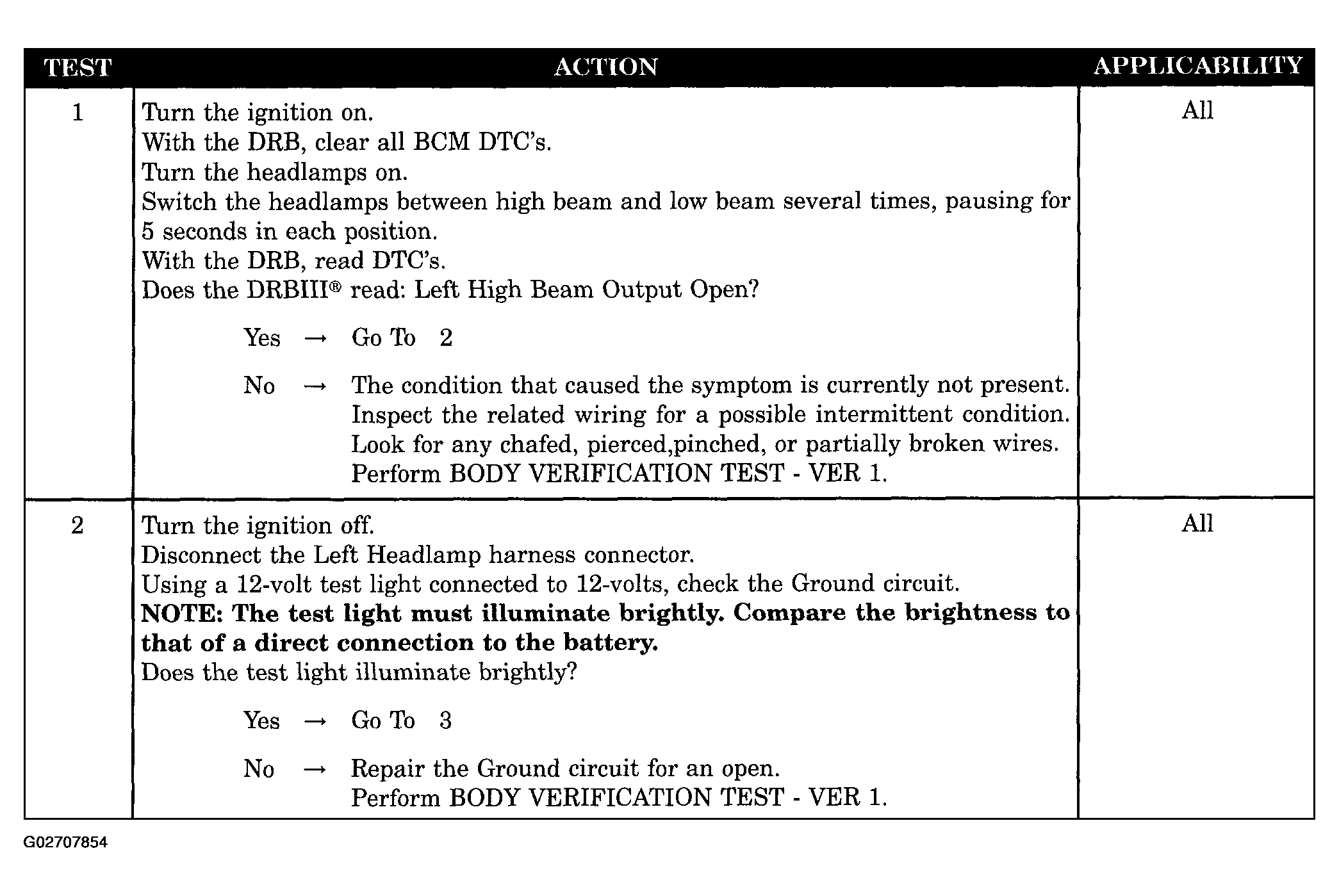

Fig 1: Left High Beam Output Open - Diagnostic Procedure (1 Of 2)
G02707854Courtesy of DAIMLERCHRYSLER CORP.

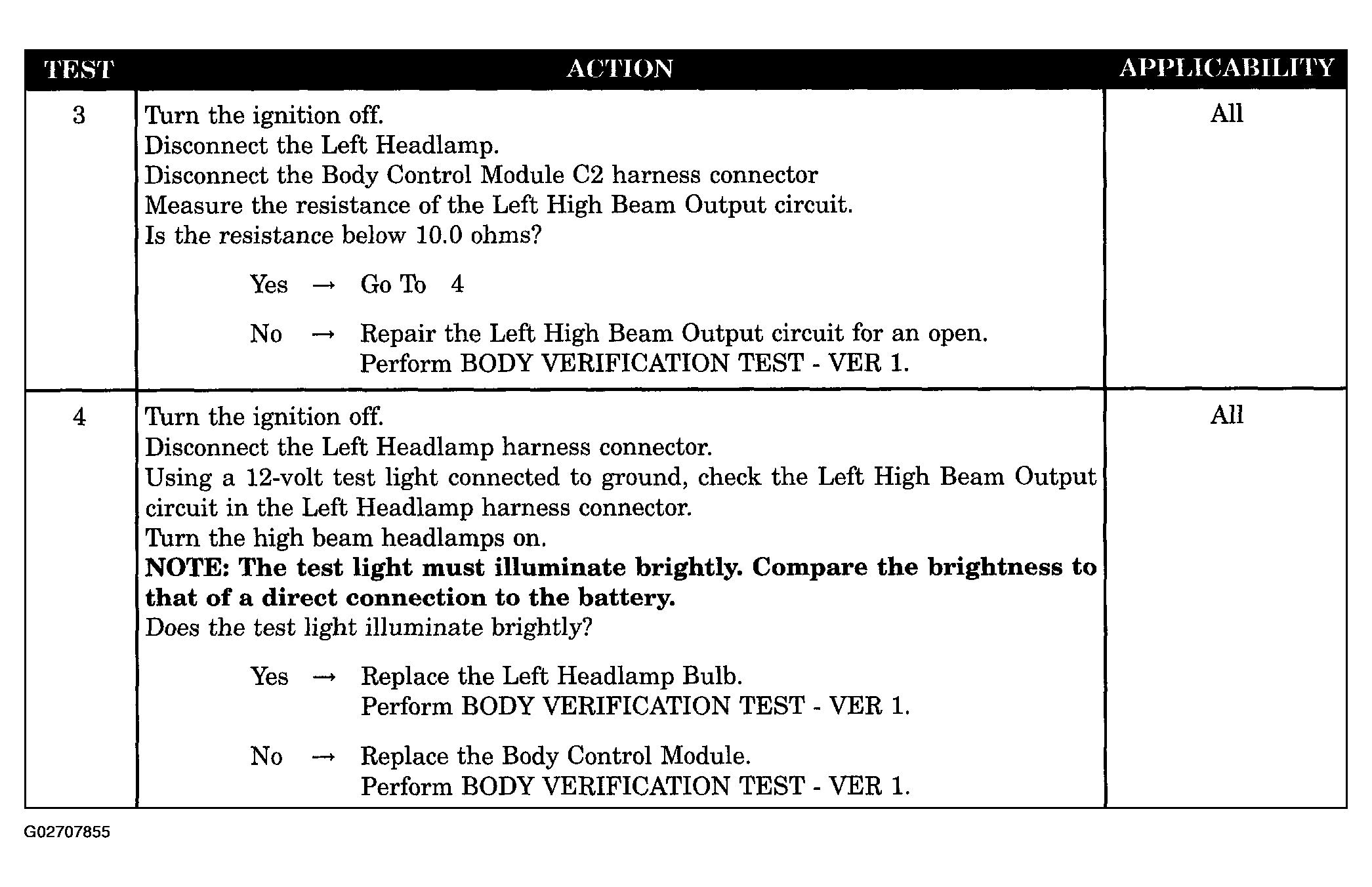

Fig 2: Left High Beam Output Open - Diagnostic Procedure (2 Of 2)
G02707855Courtesy of DAIMLERCHRYSLER CORP.
