Diagnostic Procedure

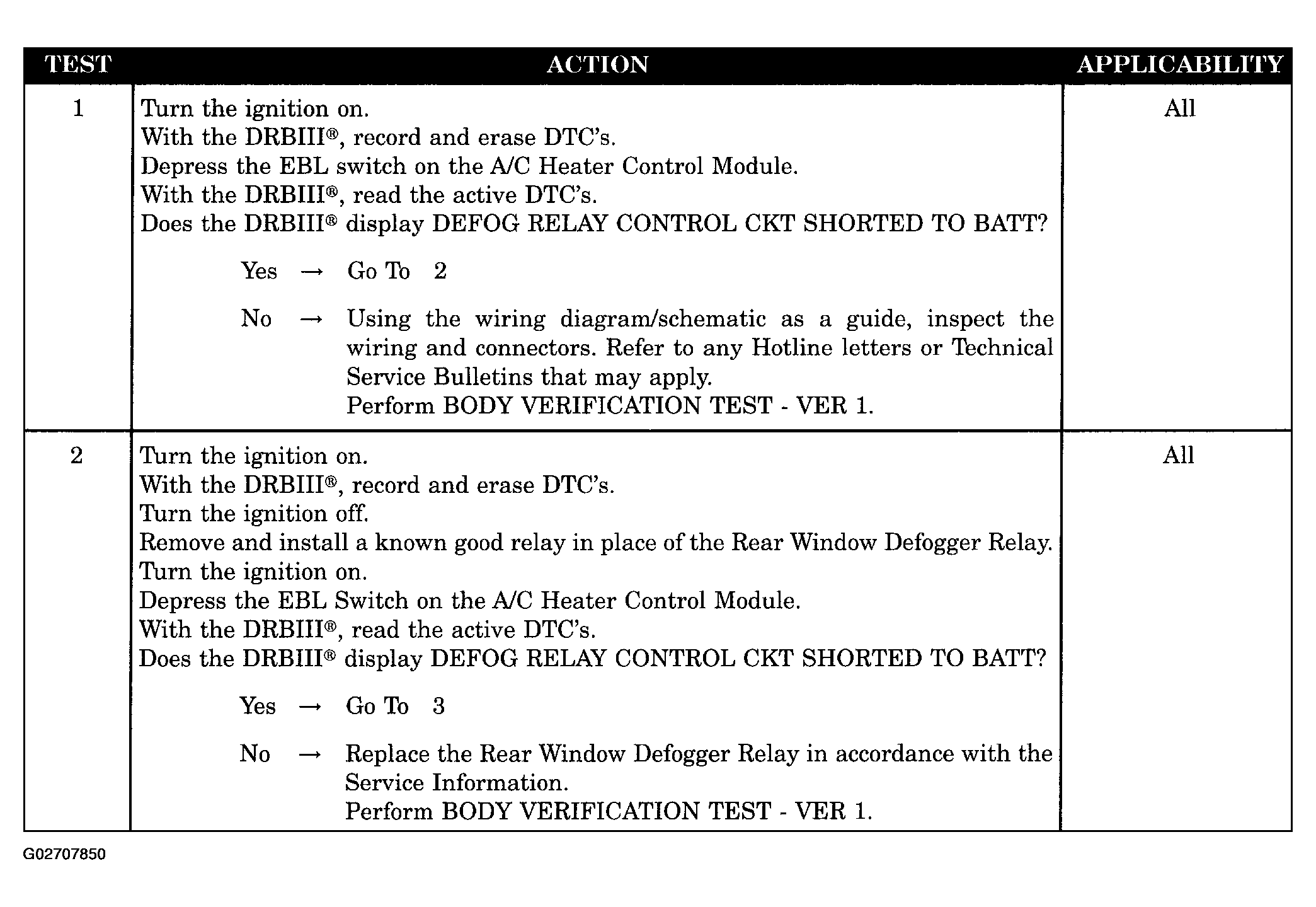

Fig 1: Defog Relay Control CKT Shorted To BATT - Diagnostic Procedure (1 Of 2)
G02707850Courtesy of DAIMLERCHRYSLER CORP.

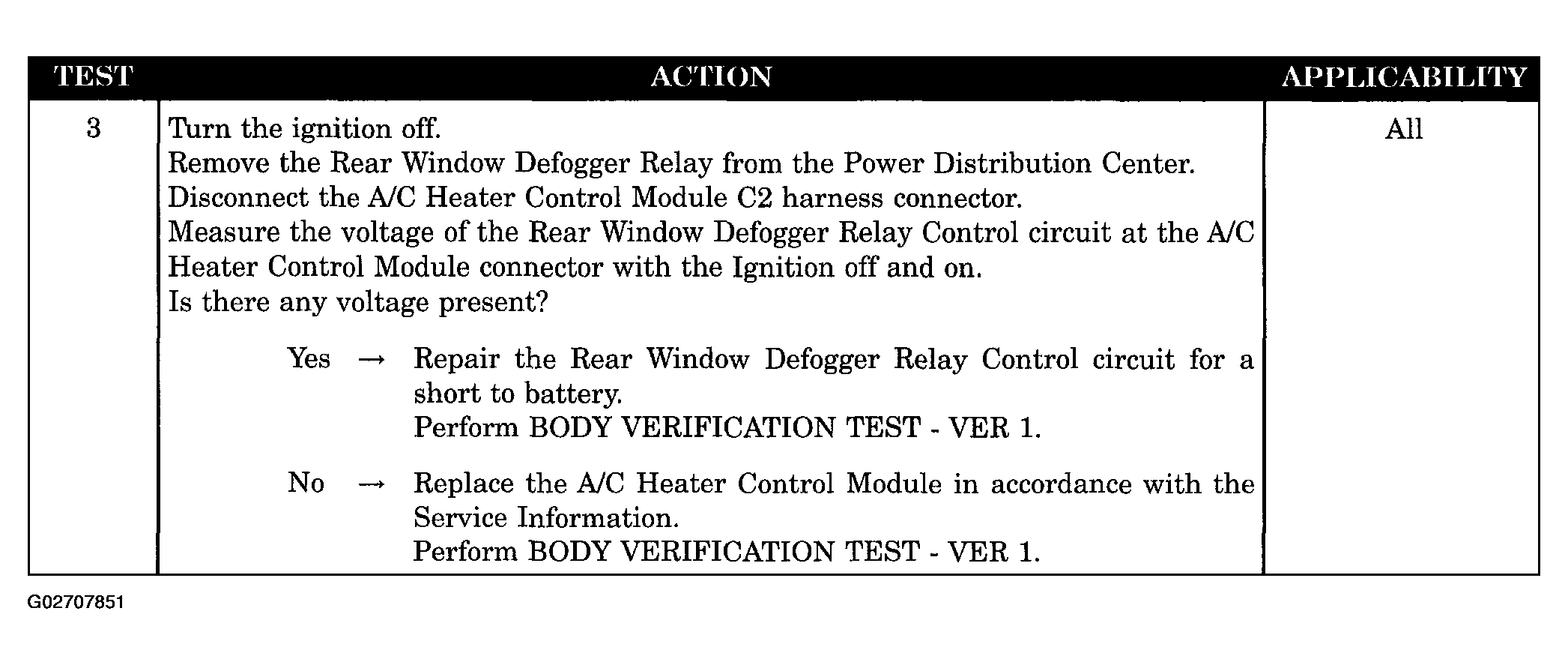

Fig 2: Defog Relay Control CKT Shorted To BATT - Diagnostic Procedure (2 Of 2)
G02707851Courtesy of DAIMLERCHRYSLER CORP.
