Diagnostic Procedure

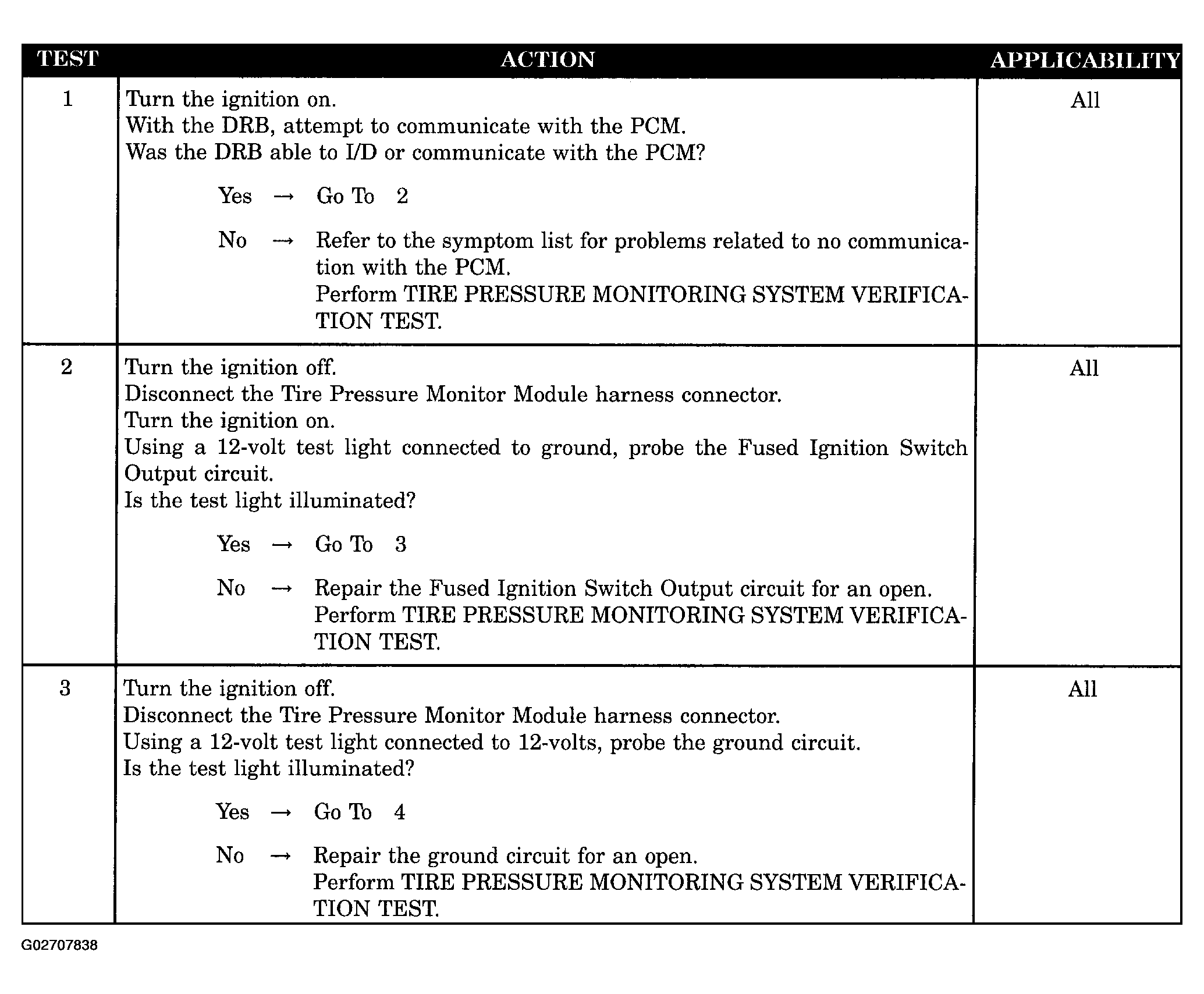

Fig 1: No Response From Tire Pressure Monitor Module - Diagnostic Procedure (1 Of 2)
G02707838Courtesy of DAIMLERCHRYSLER CORP.

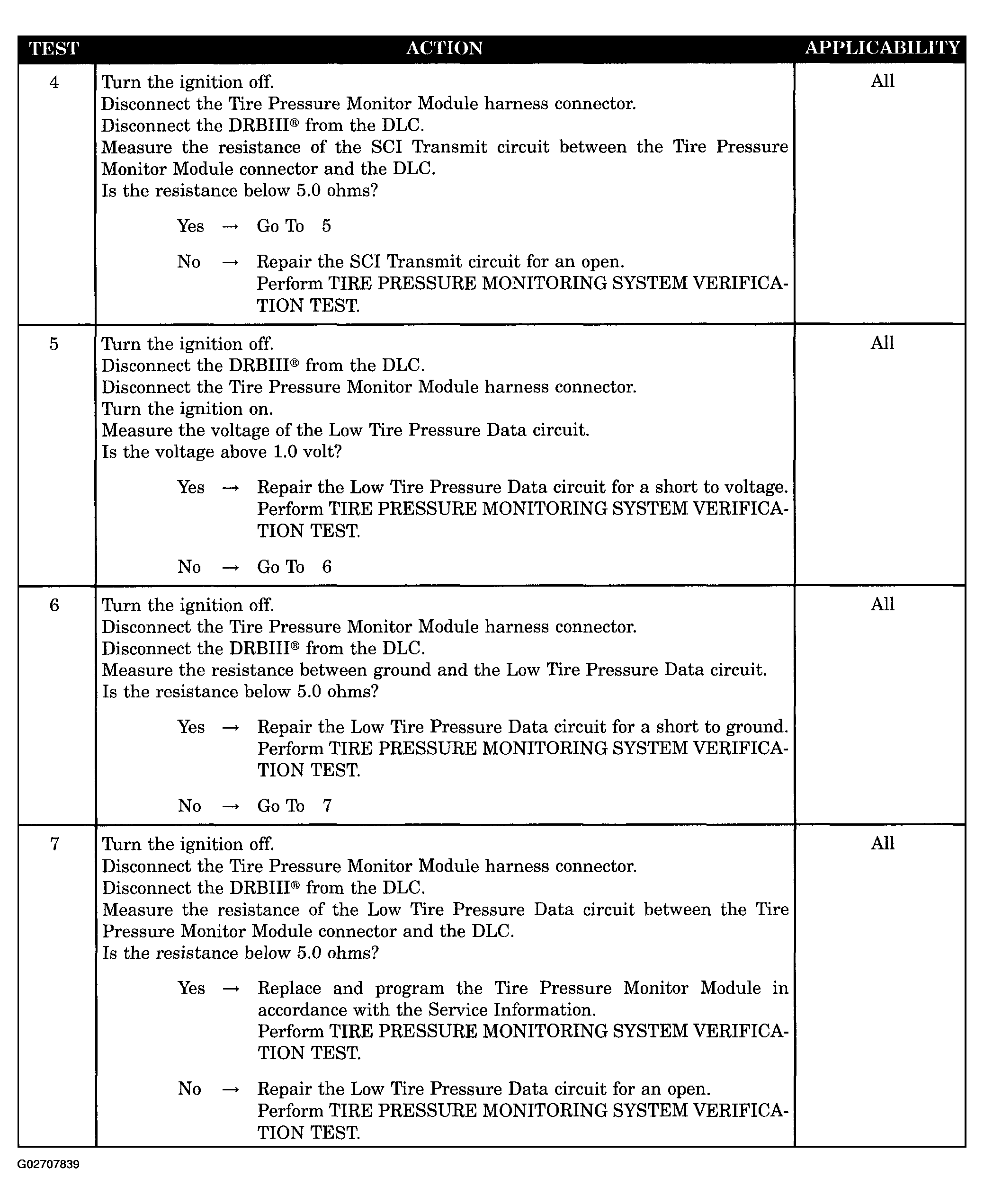

Fig 2: No Response From Tire Pressure Monitor Module - Diagnostic Procedure (2 Of 2)
G02707839Courtesy of DAIMLERCHRYSLER CORP.
