Diagnostic Procedure

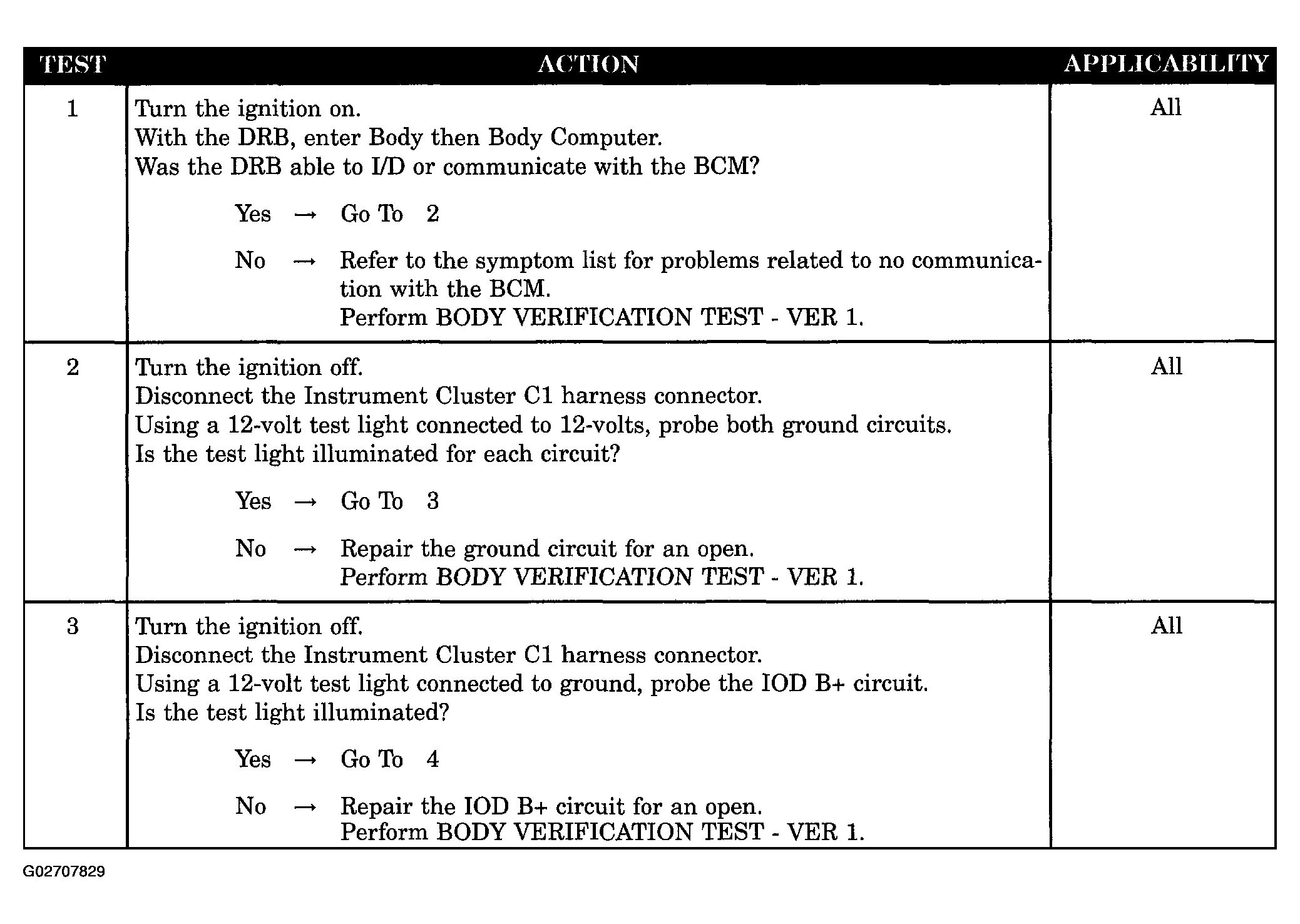

Fig 1: No Response From Instrument Cluster - Diagnostic Procedure (1 Of 3)
G02707829Courtesy of DAIMLERCHRYSLER CORP.

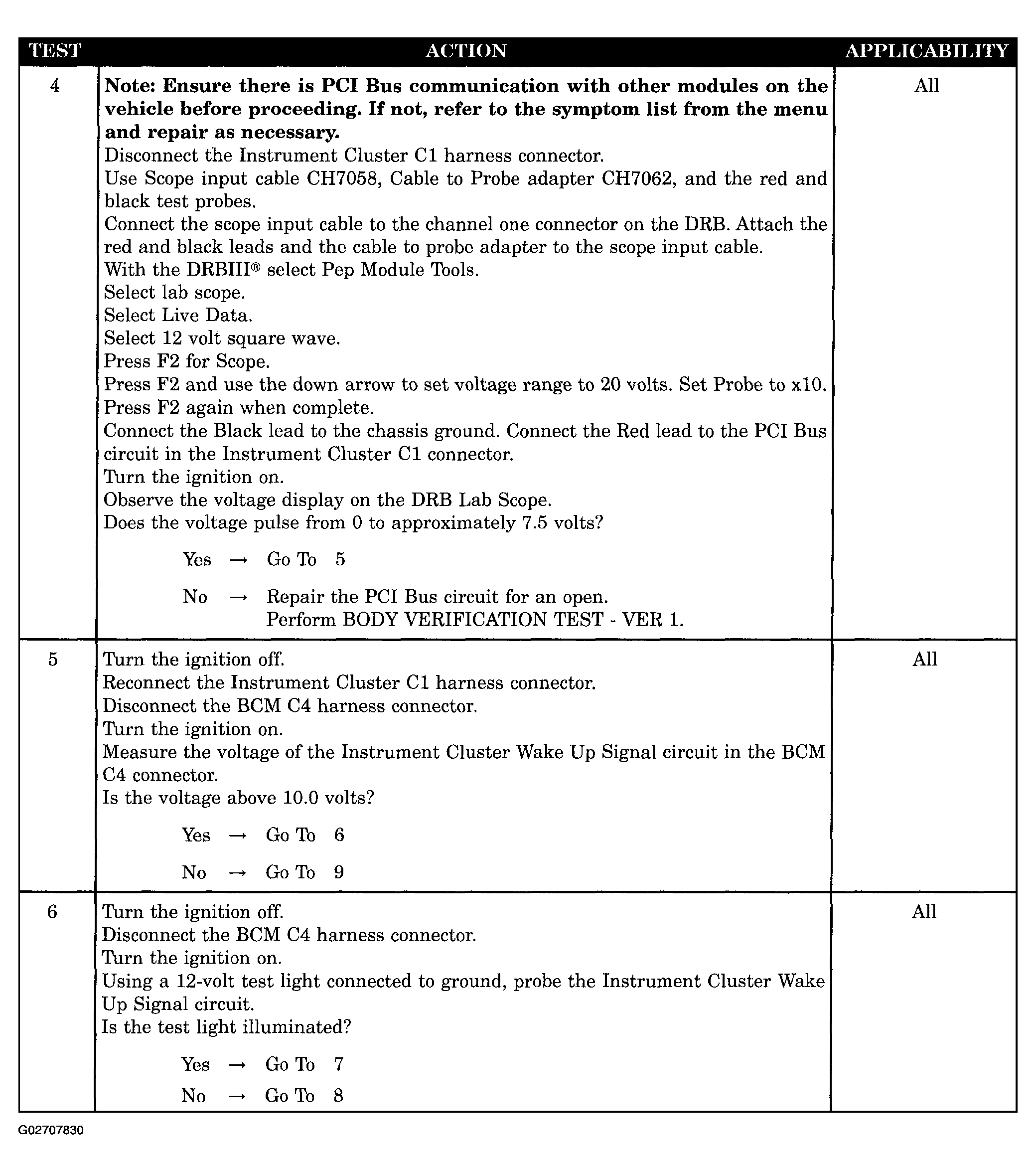

Fig 2: No Response From Instrument Cluster - Diagnostic Procedure (2 Of 3)
G02707830Courtesy of DAIMLERCHRYSLER CORP.

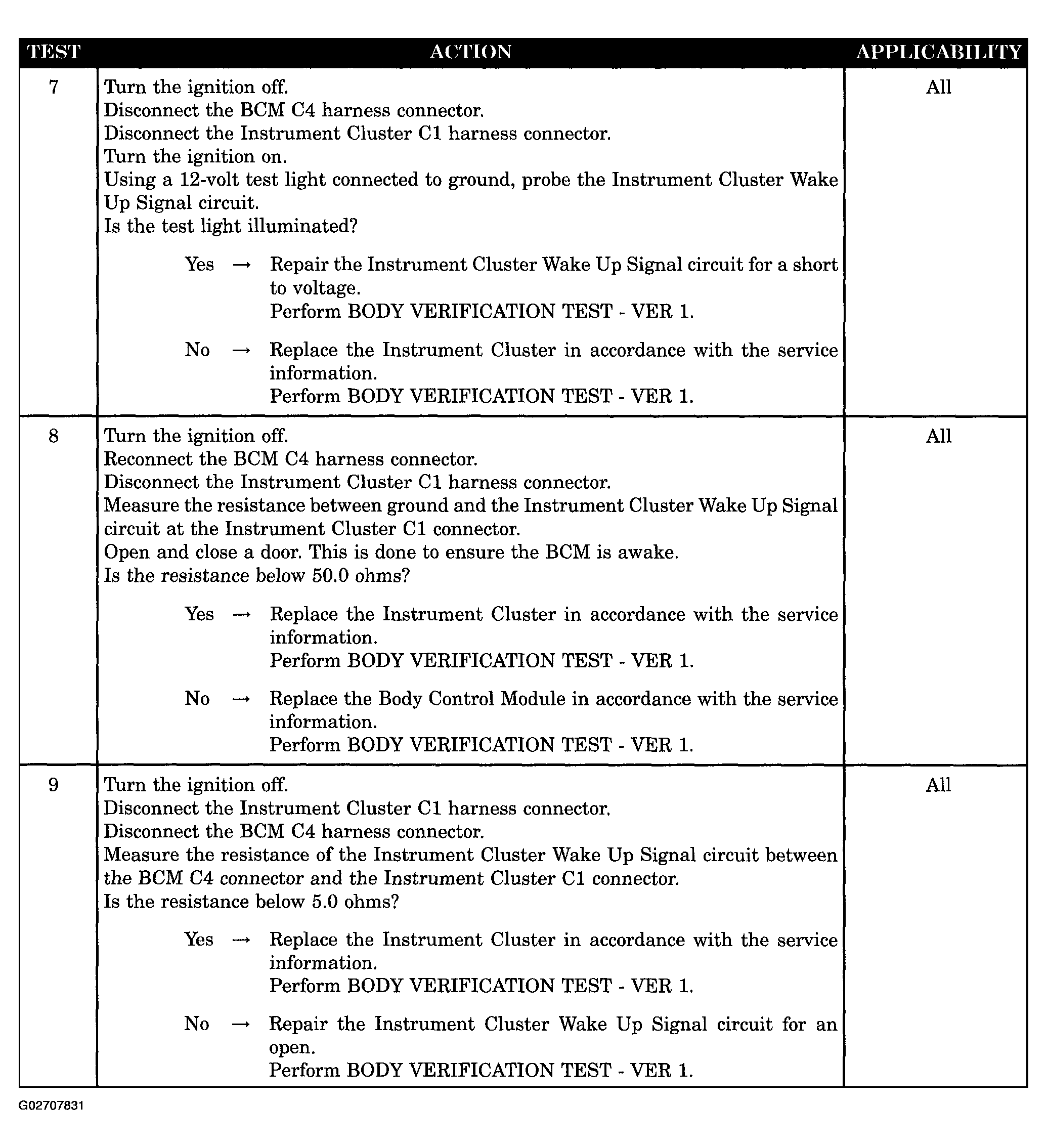

Fig 3: No Response From Instrument Cluster - Diagnostic Procedure (3 Of 3)
G02707831Courtesy of DAIMLERCHRYSLER CORP.
