Diagnostic Procedure

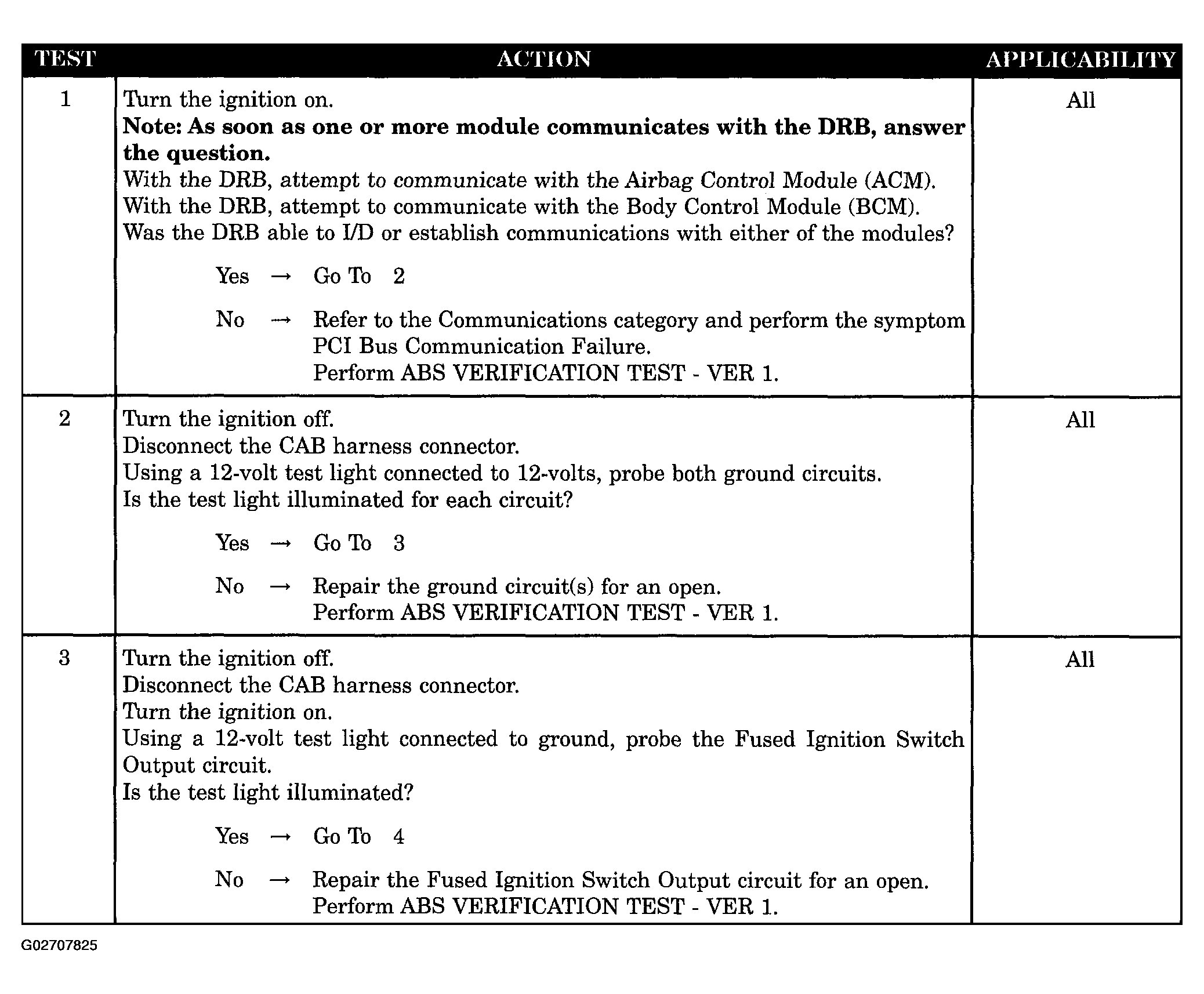

Fig 1: No Response From Controller Antilock Brake - Diagnostic Procedure (1 Of 2)
G02707825Courtesy of DAIMLERCHRYSLER CORP.

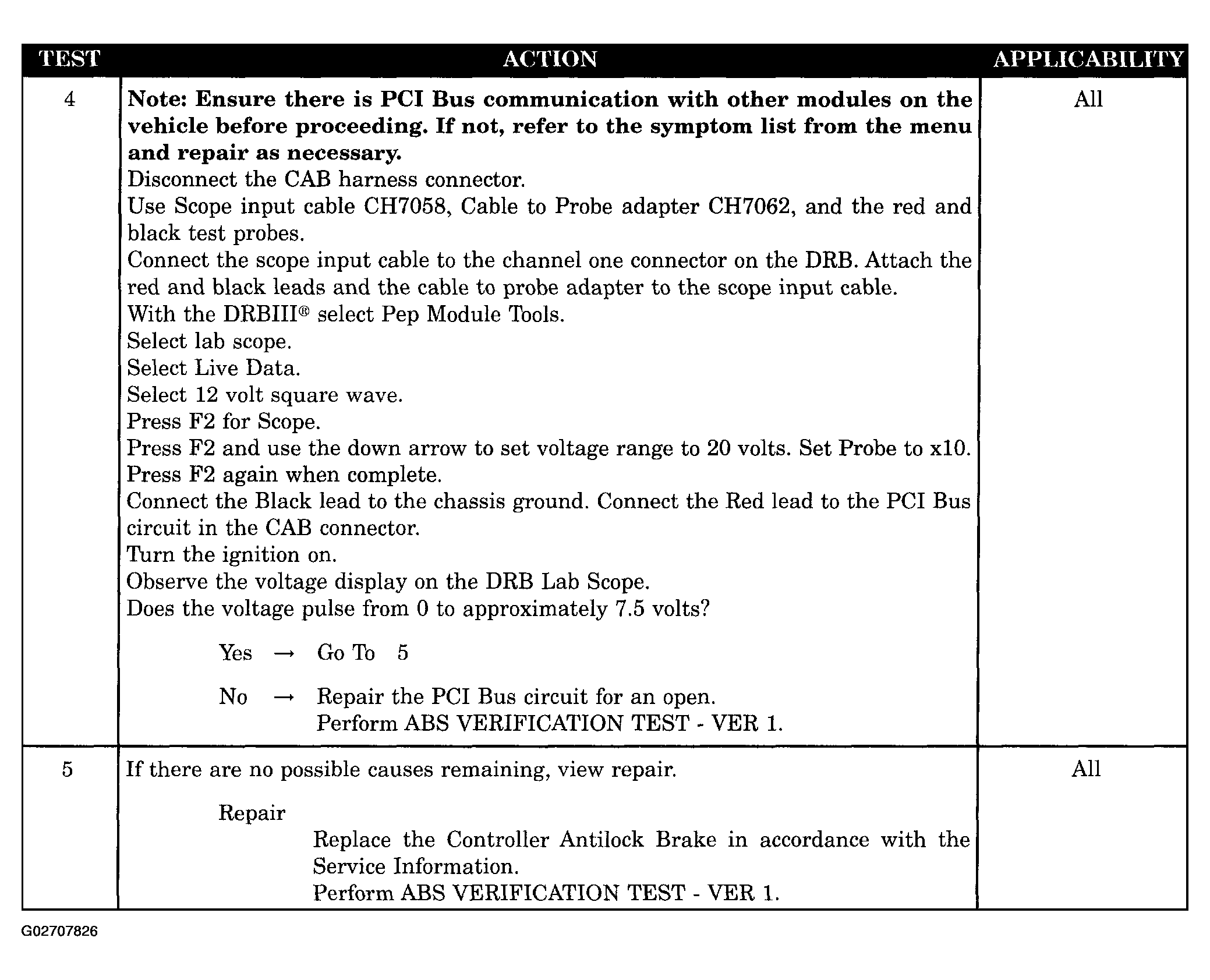

Fig 2: No Response From Controller Antilock Brake - Diagnostic Procedure (2 Of 2)
G02707826Courtesy of DAIMLERCHRYSLER CORP.
