Diagnostic Procedure

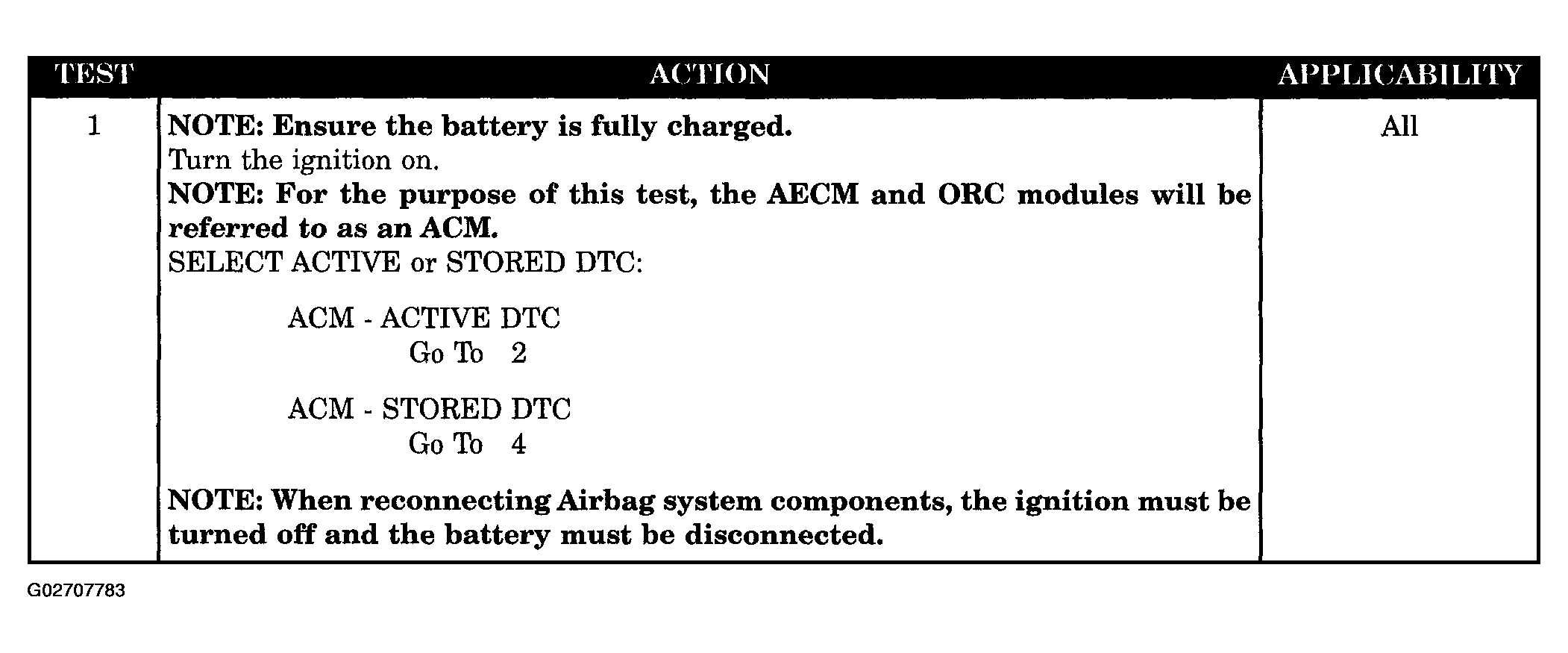

Fig 1: Passenger Squib 1 Circuit Open - Diagnostic Procedure (1 Of 3)
G02707783Courtesy of DAIMLERCHRYSLER CORP.

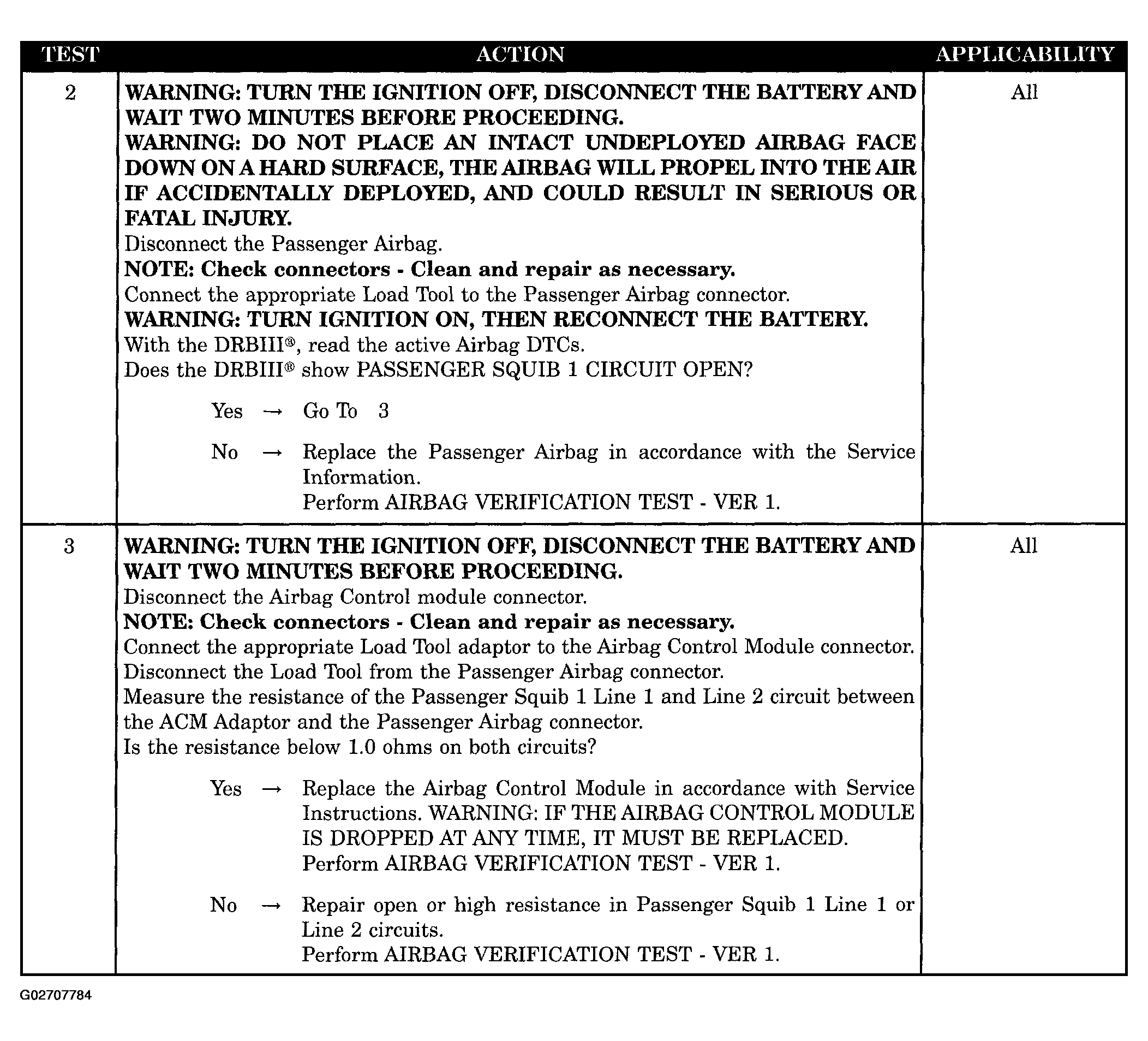

Fig 2: Passenger Squib 1 Circuit Open - Diagnostic Procedure (2 Of 3)
G02707784Courtesy of DAIMLERCHRYSLER CORP.

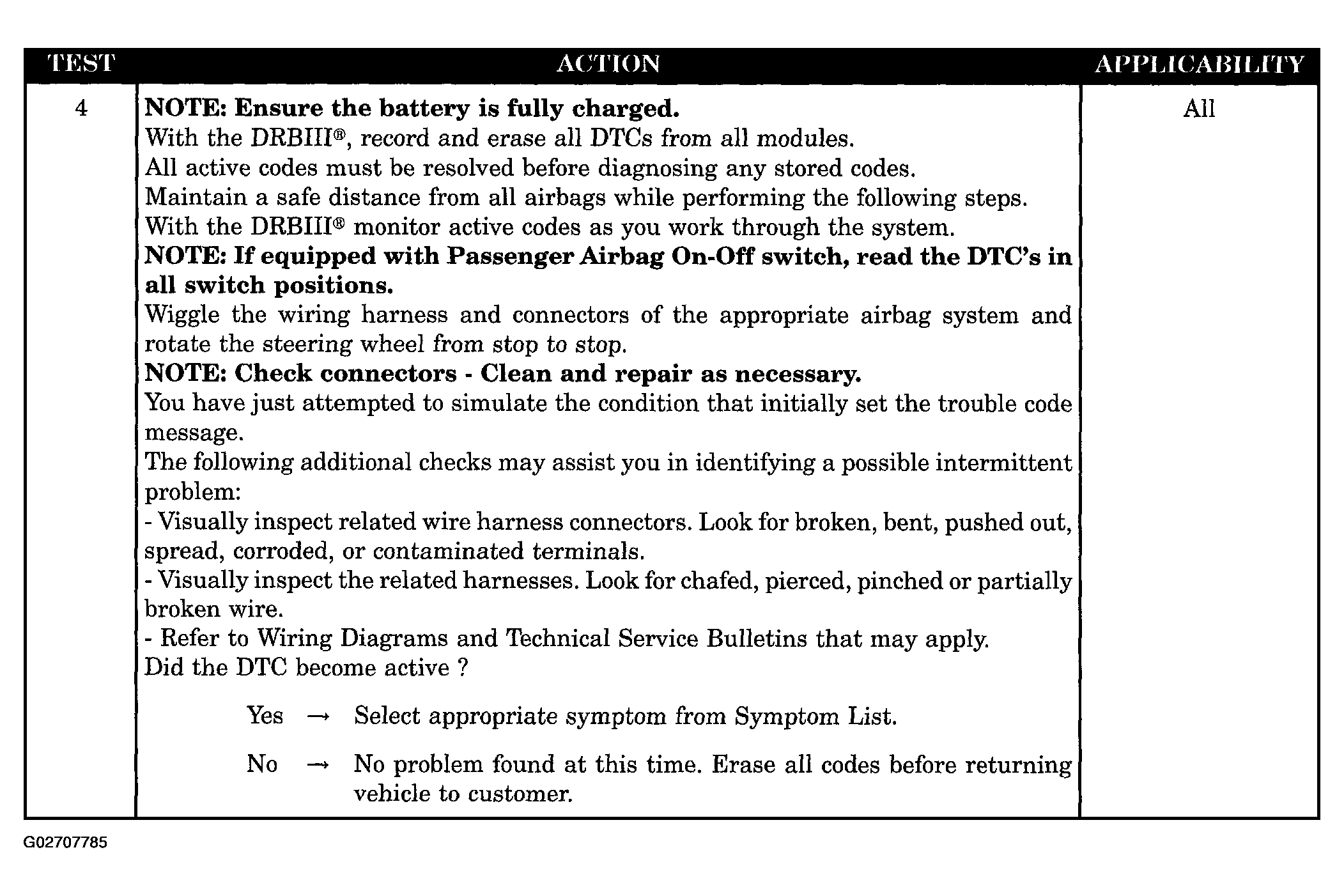

Fig 3: Passenger Squib 1 Circuit Open - Diagnostic Procedure (3 Of 3)
G02707785Courtesy of DAIMLERCHRYSLER CORP.
