Diagnostic Procedure

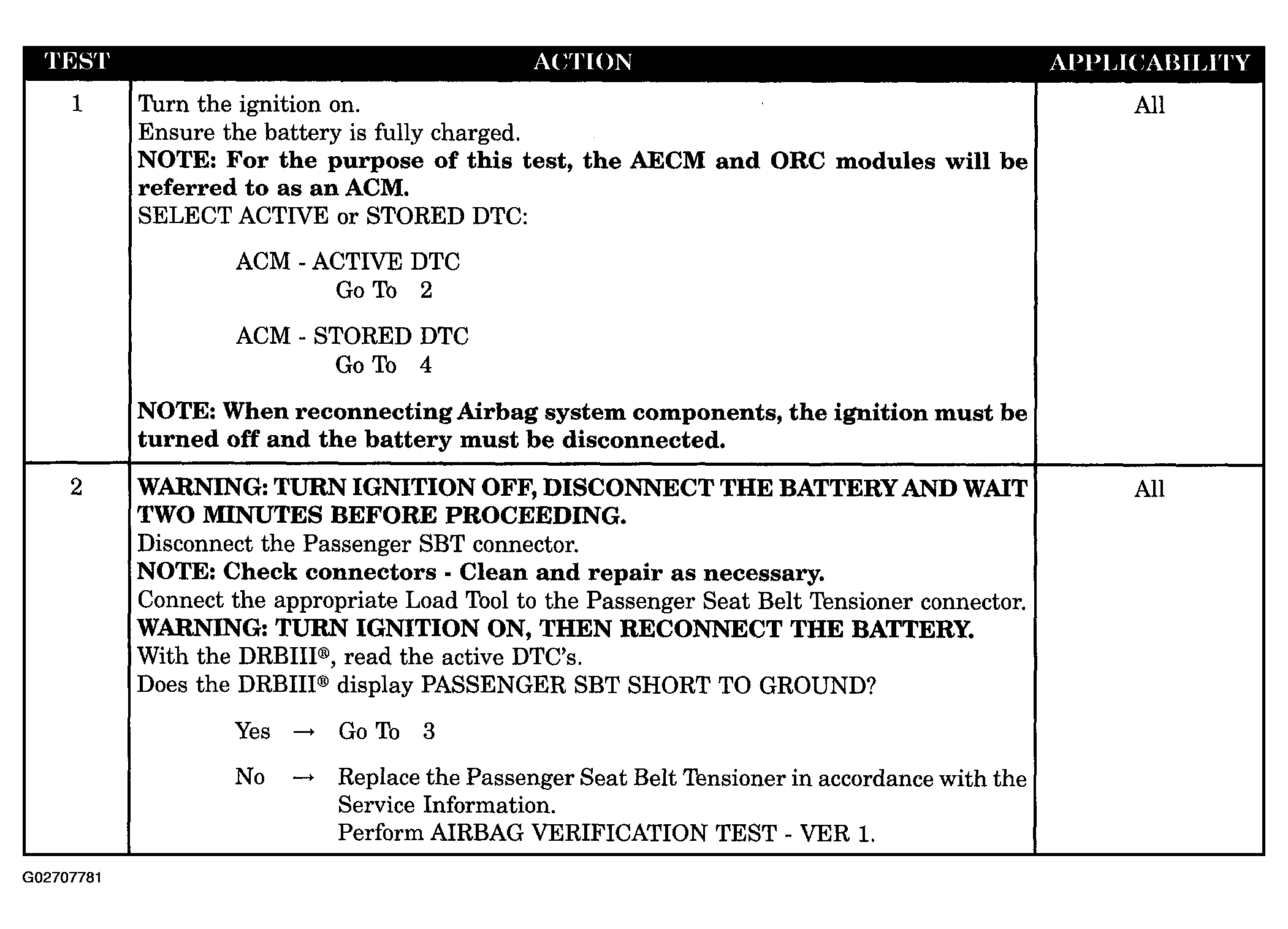

Fig 1: Passenger Seat Belt Tensioner Short To Ground - Diagnostic Procedure (1 Of 2)
G02707781Courtesy of DAIMLERCHRYSLER CORP.

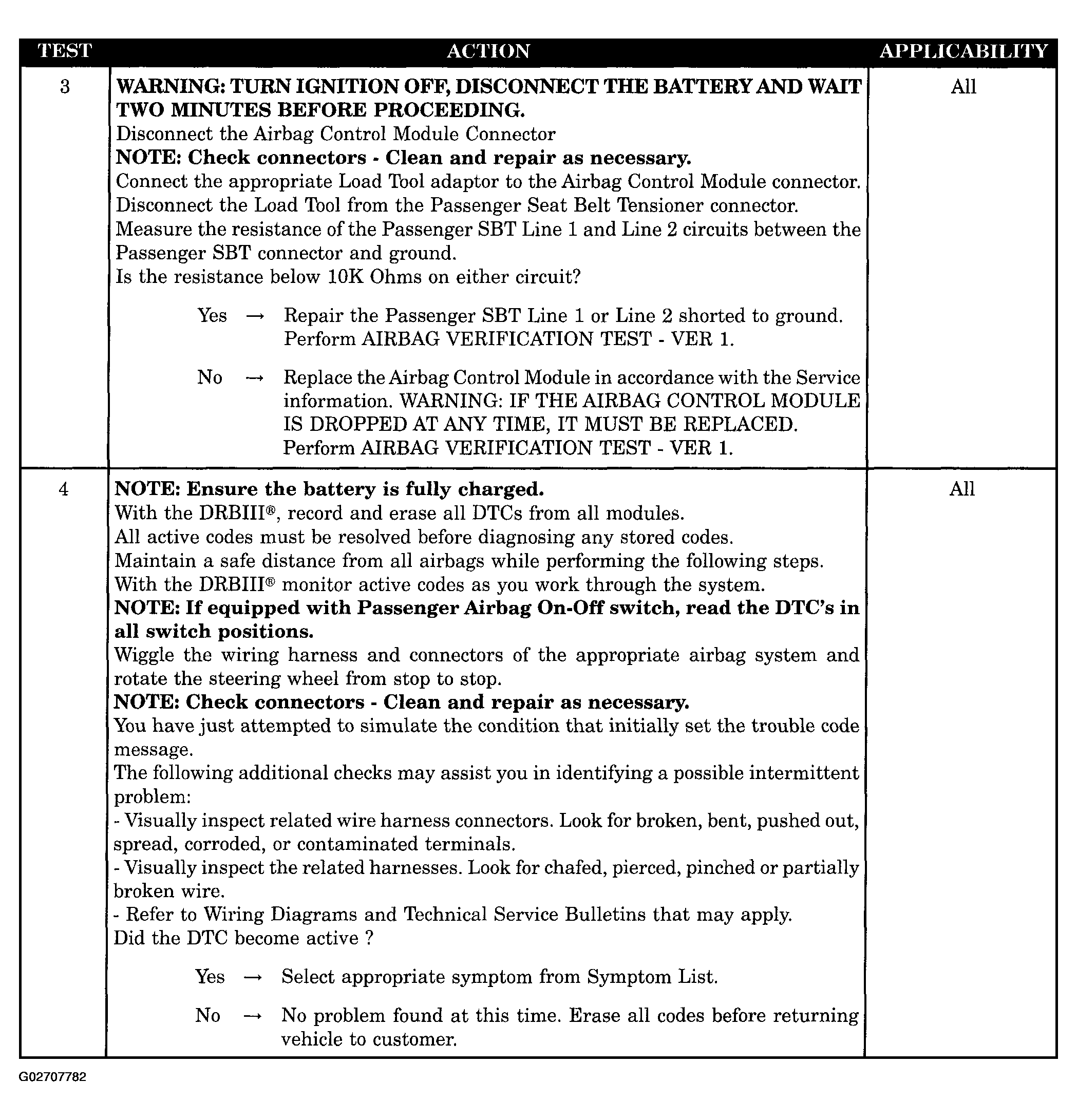

Fig 2: Passenger Seat Belt Tensioner Short To Ground - Diagnostic Procedure (2 Of 2)
G02707782Courtesy of DAIMLERCHRYSLER CORP.
