Diagnostic Procedure

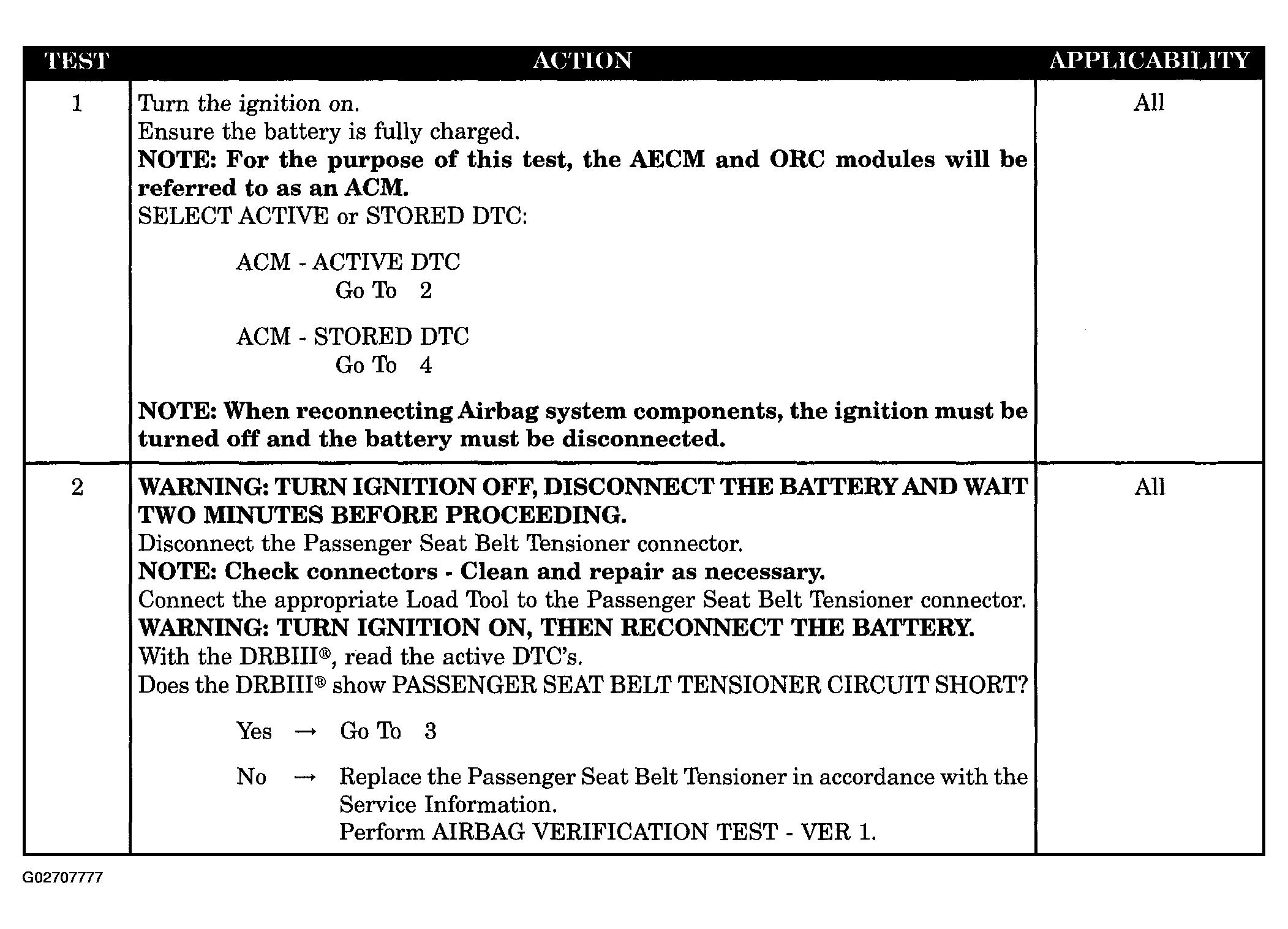

Fig 1: Passenger Seat Belt Tensioner Circuit Short - Diagnostic Procedure (1 Of 2)
G02707777Courtesy of DAIMLERCHRYSLER CORP.

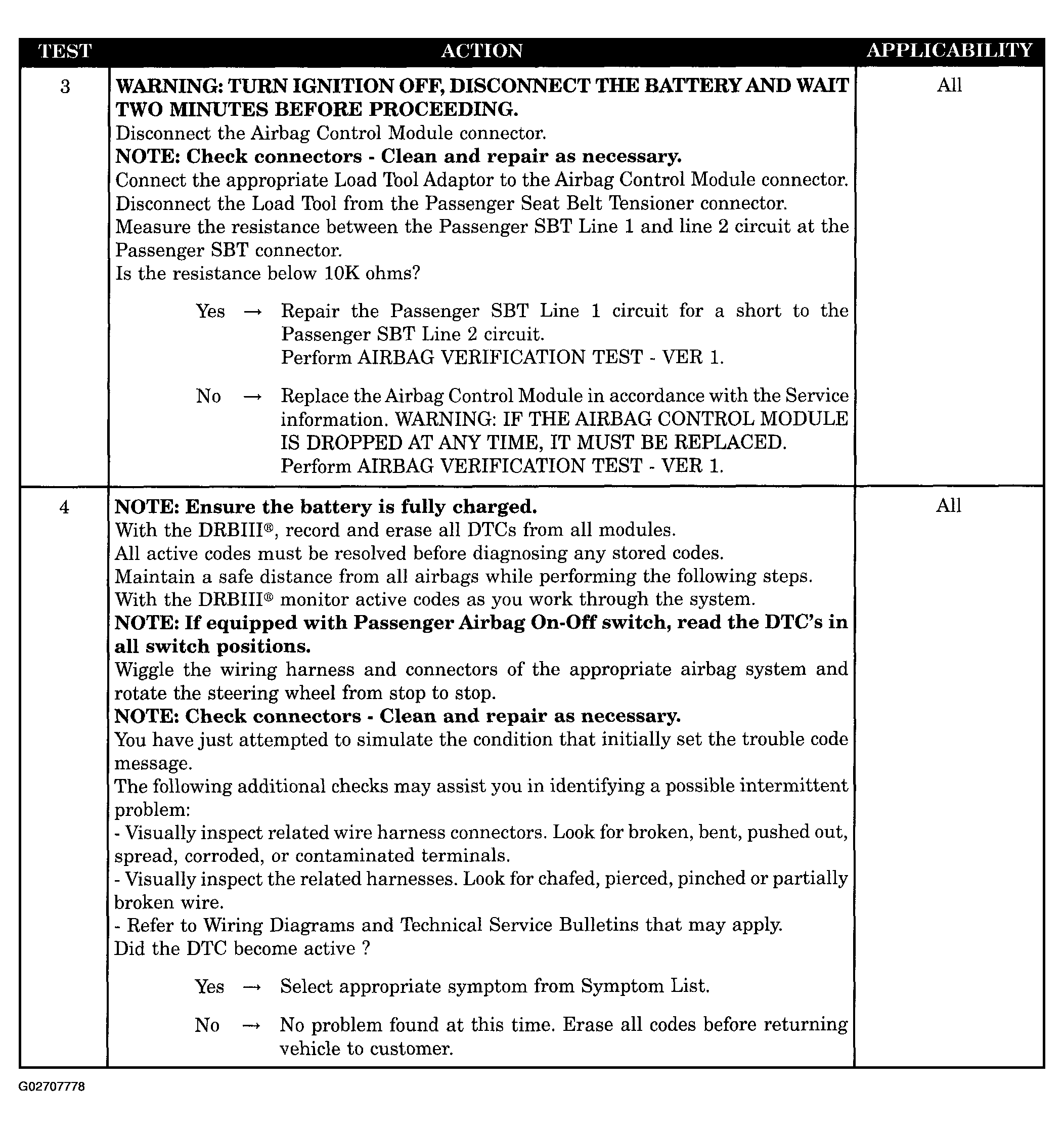

Fig 2: Passenger Seat Belt Tensioner Circuit Short - Diagnostic Procedure (2 Of 2)
G02707778Courtesy of DAIMLERCHRYSLER CORP.
