Diagnostic Procedure

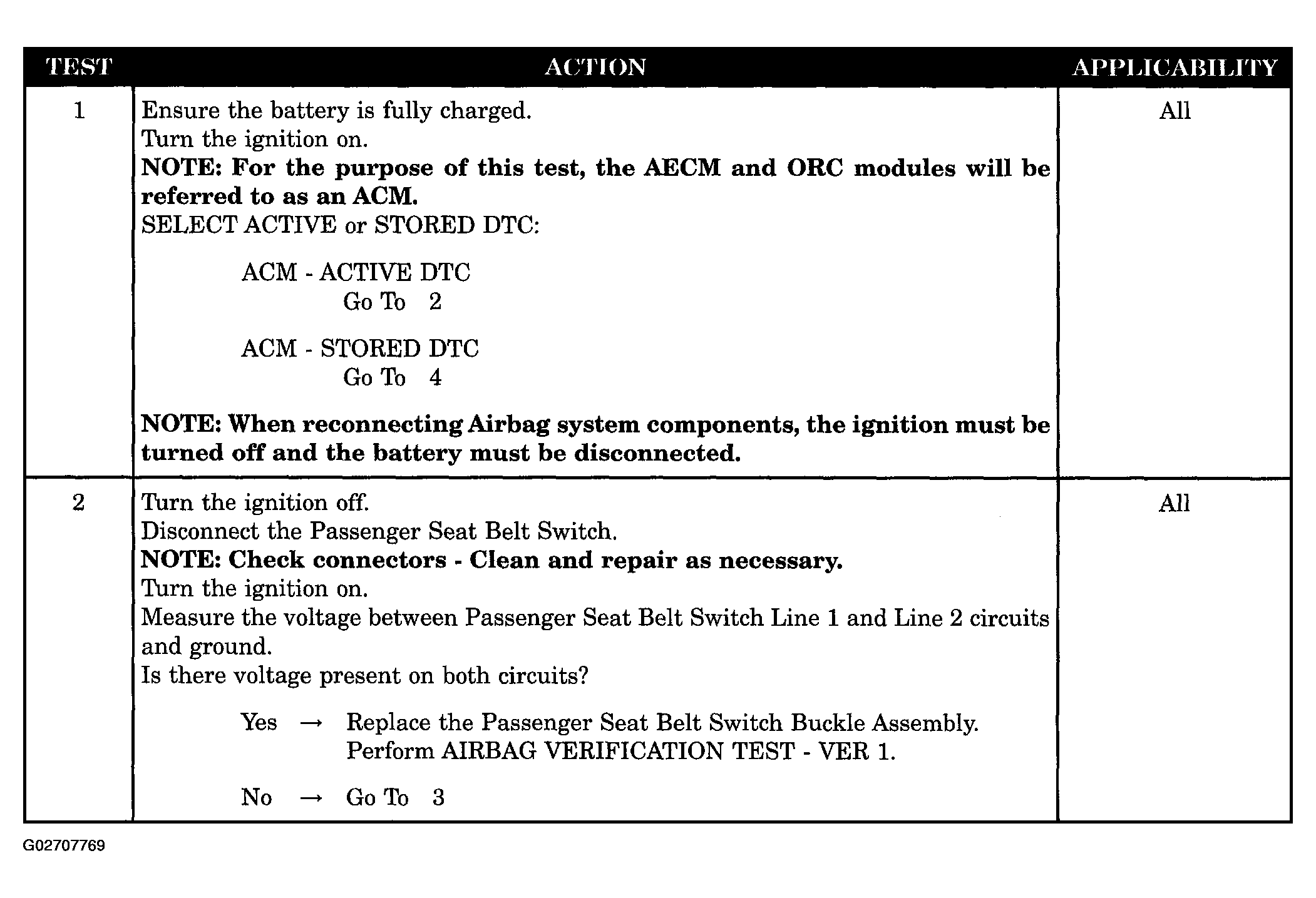

Fig 1: Passenger Seat Belt Switch Circuit Open - Diagnostic Procedure (1 Of 2)
G02707769Courtesy of DAIMLERCHRYSLER CORP.

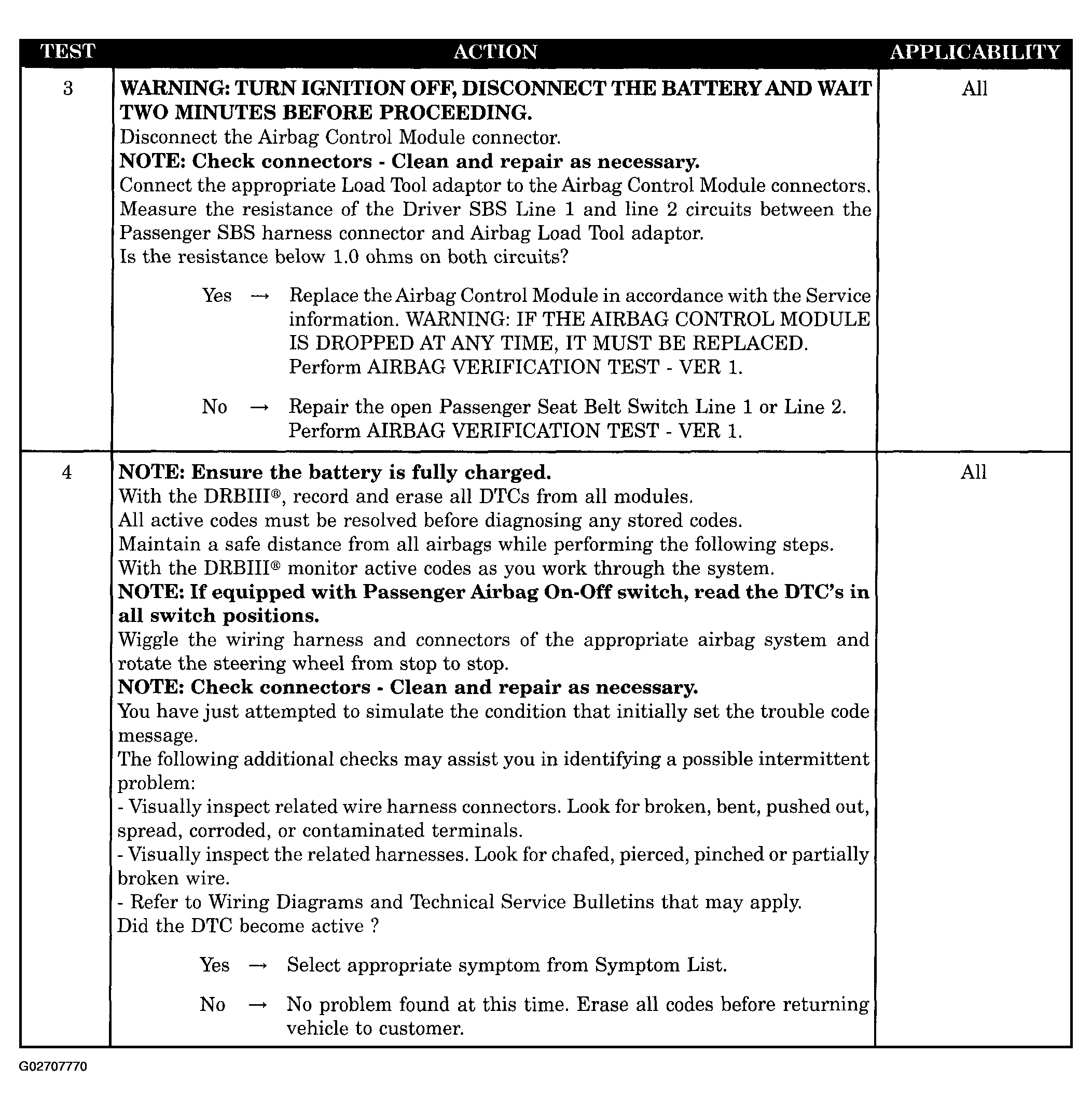

Fig 2: Passenger Seat Belt Switch Circuit Open - Diagnostic Procedure (2 Of 2)
G02707770Courtesy of DAIMLERCHRYSLER CORP.
