Diagnostic Procedure

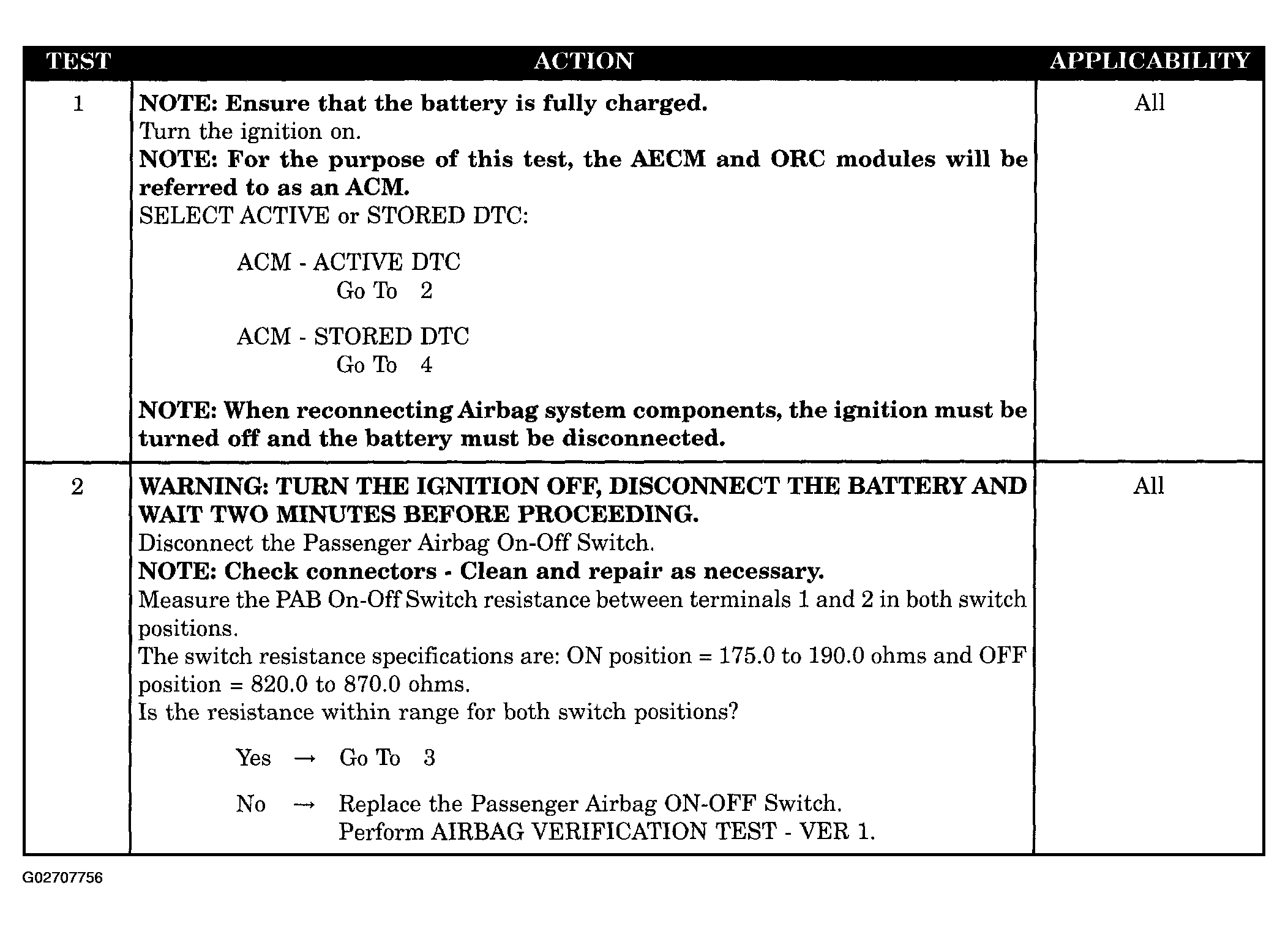

Fig 1: Passenger Airbag On - Off Switch Open - Diagnostic Procedure (1 Of 2)
G02707756Courtesy of DAIMLERCHRYSLER CORP.

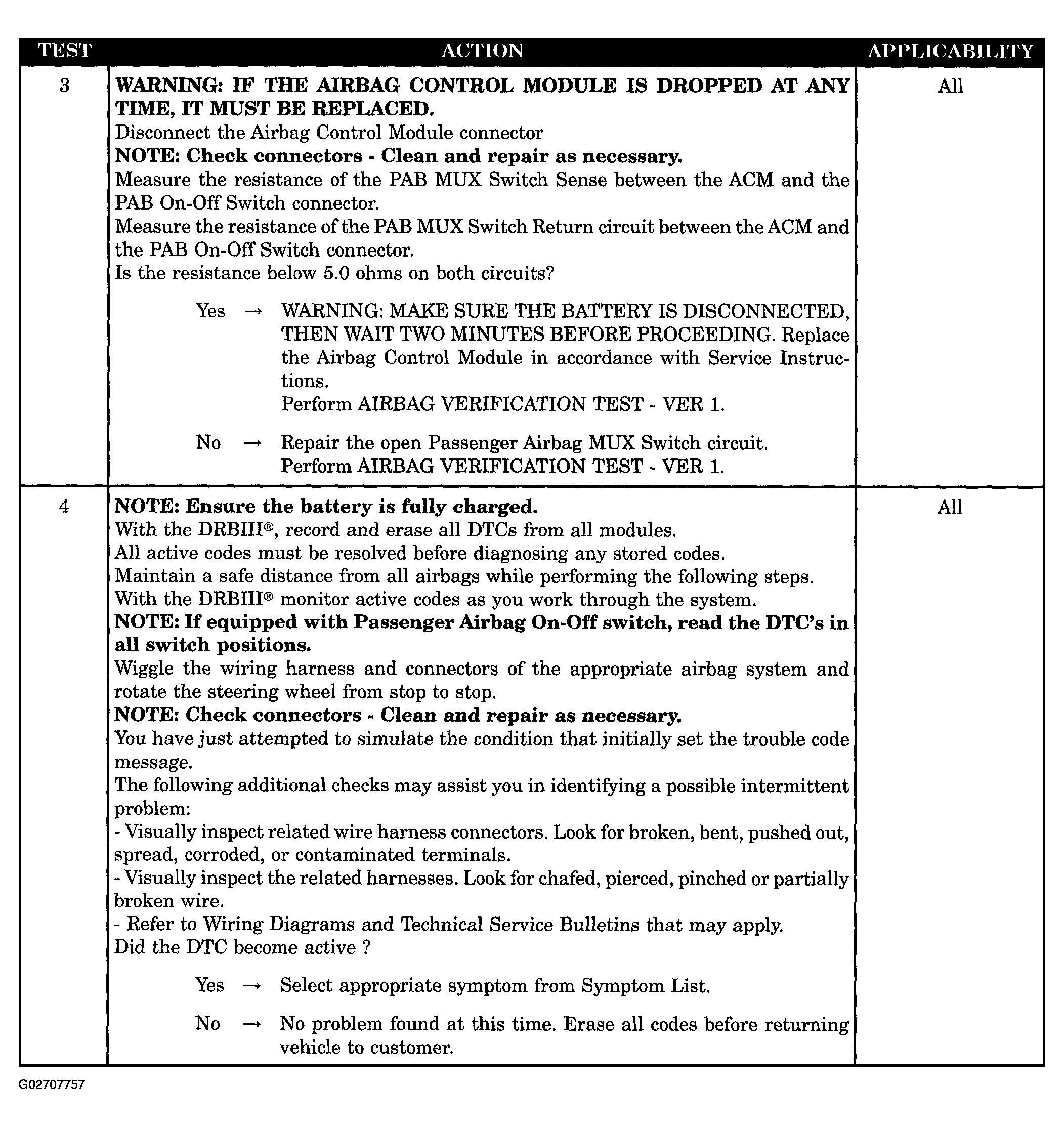

Fig 2: Passenger Airbag On - Off Switch Open - Diagnostic Procedure (2 Of 2)
G02707757Courtesy of DAIMLERCHRYSLER CORP.
