Diagnostic Procedure

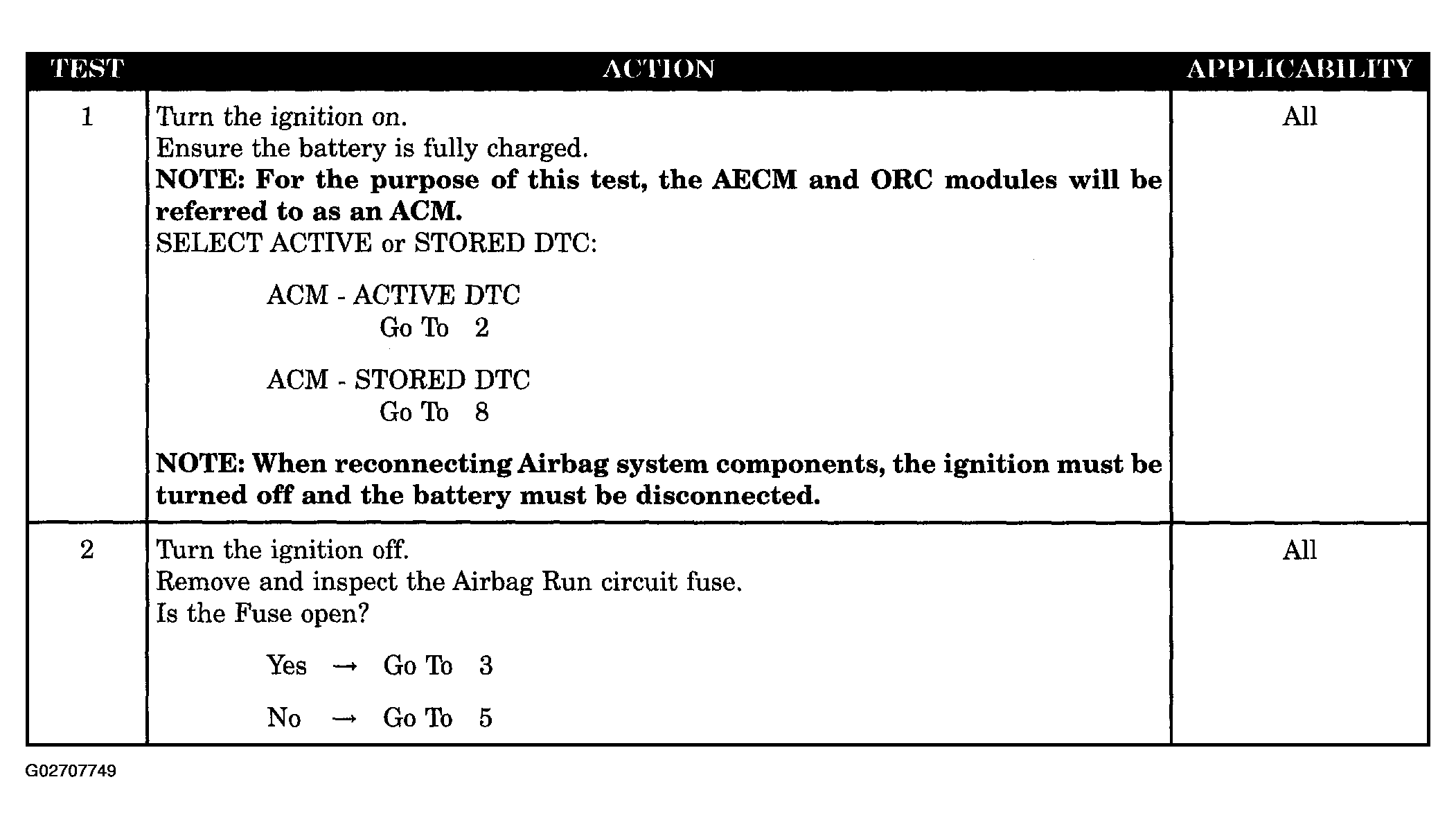

Fig 1: Loss Of Ignition Run Only - Diagnostic Procedure (1 Of 2)
G02707749Courtesy of DAIMLERCHRYSLER CORP.

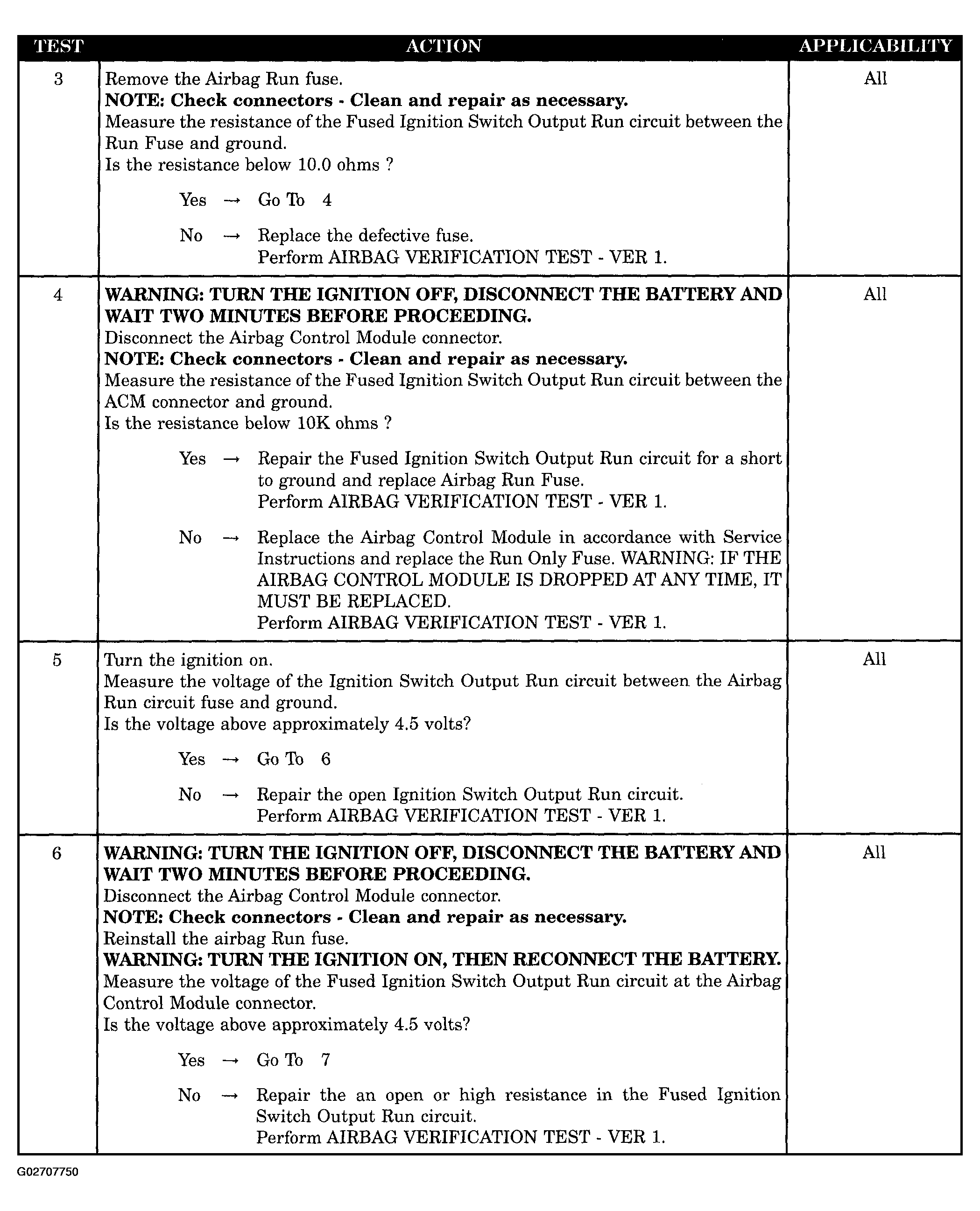

Fig 2: Loss Of Ignition Run Only - Diagnostic Procedure (2 Of 3)
G02707750Courtesy of DAIMLERCHRYSLER CORP.

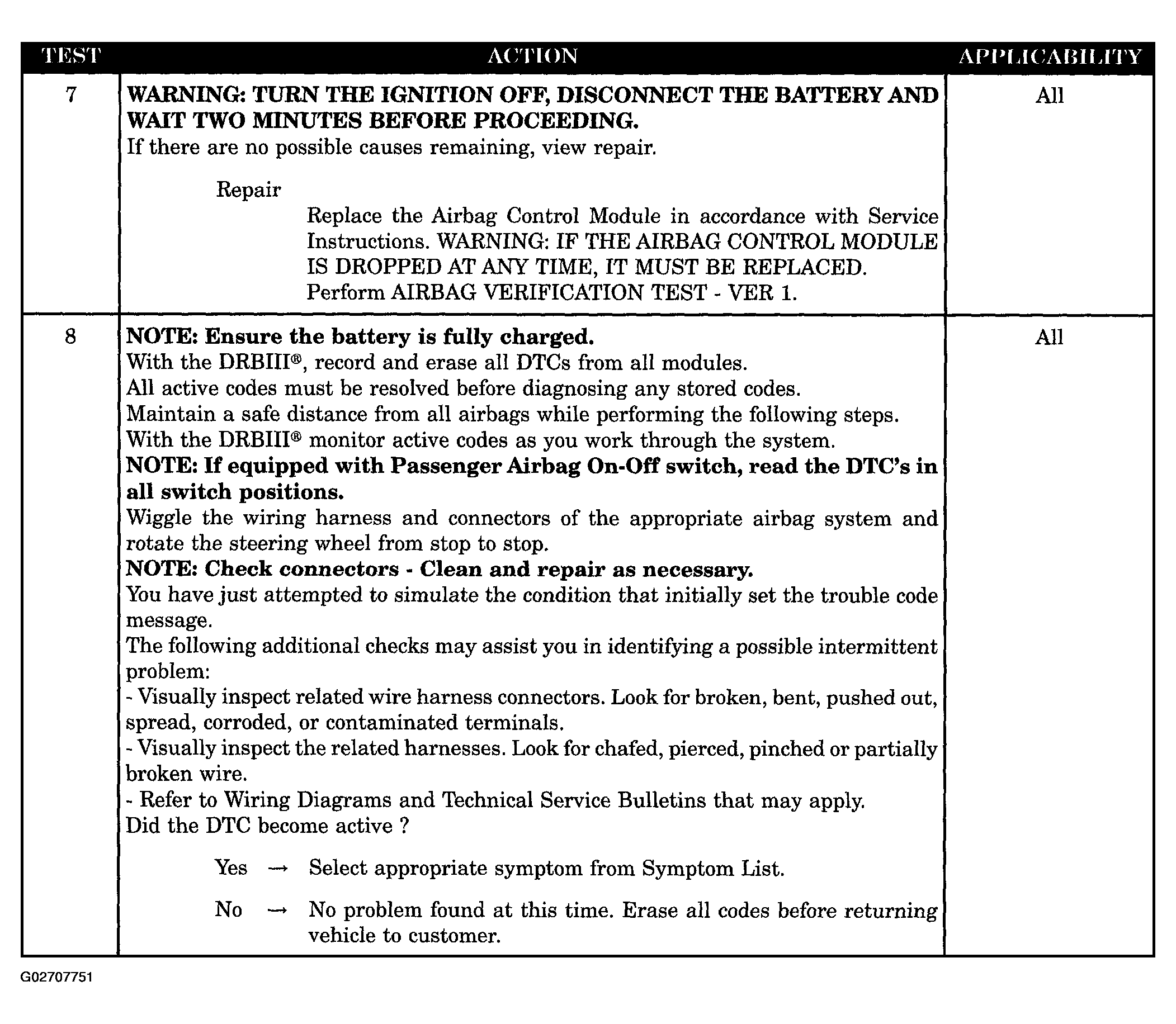

Fig 3: Loss Of Ignition Run Only - Diagnostic Procedure (3 Of 3)
G02707751Courtesy of DAIMLERCHRYSLER CORP.
