Diagnostic Procedure

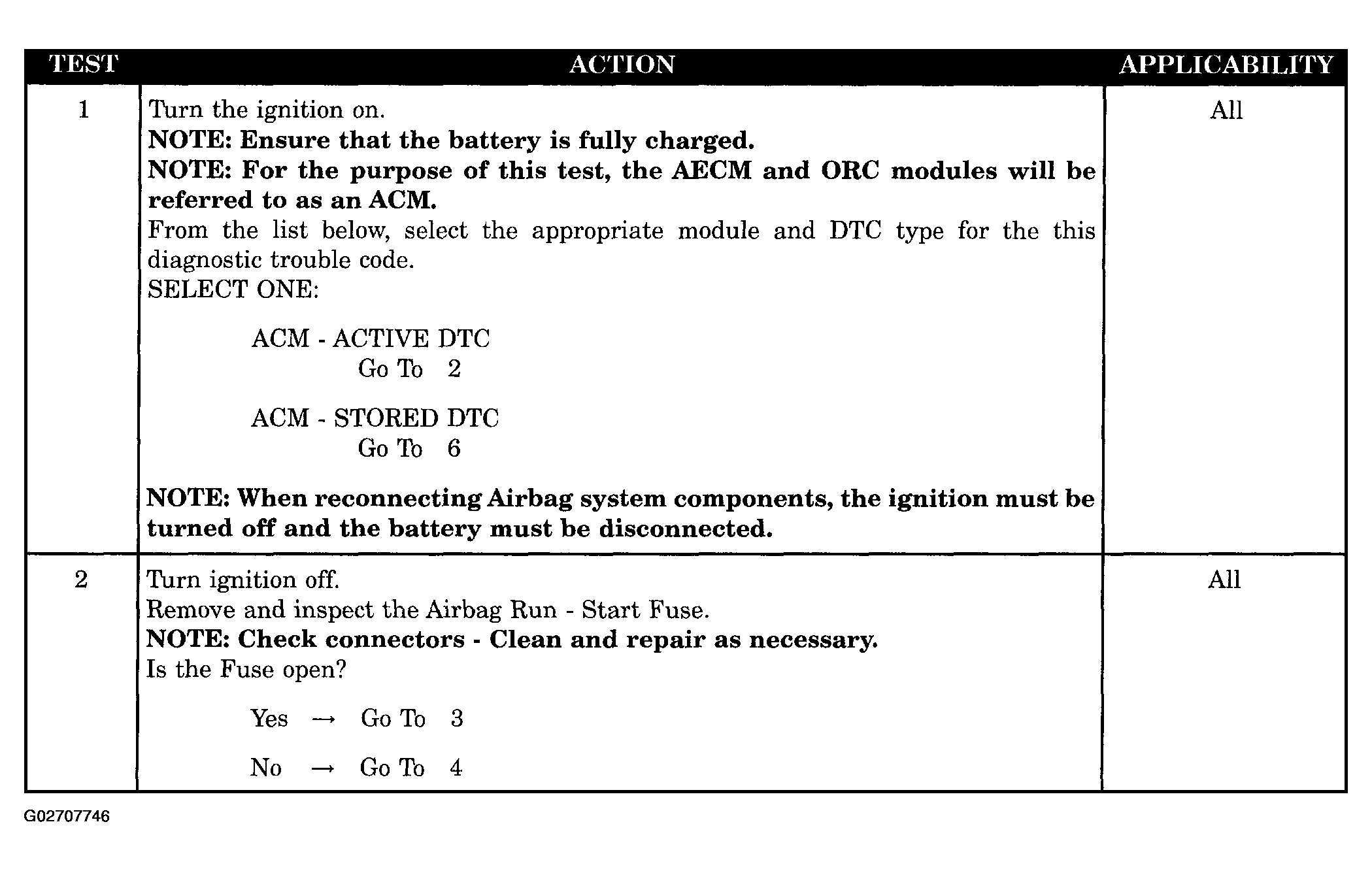

Fig 1: Loss Of Ignition Run - Start - Diagnostic Procedure (1 Of 3)
G02707746Courtesy of DAIMLERCHRYSLER CORP.

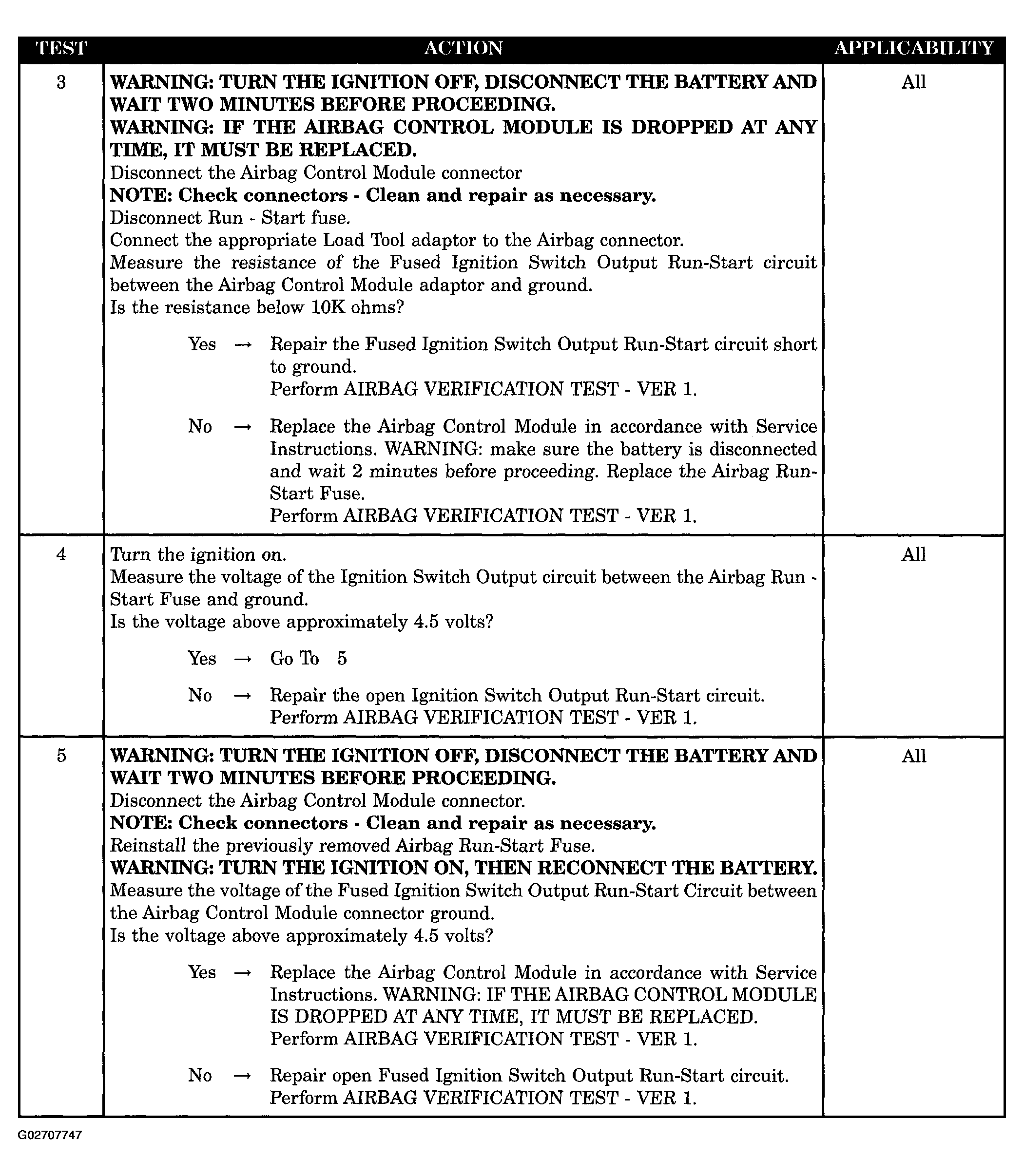

Fig 2: Loss Of Ignition Run - Start - Diagnostic Procedure (2 Of 3)
G02707747Courtesy of DAIMLERCHRYSLER CORP.

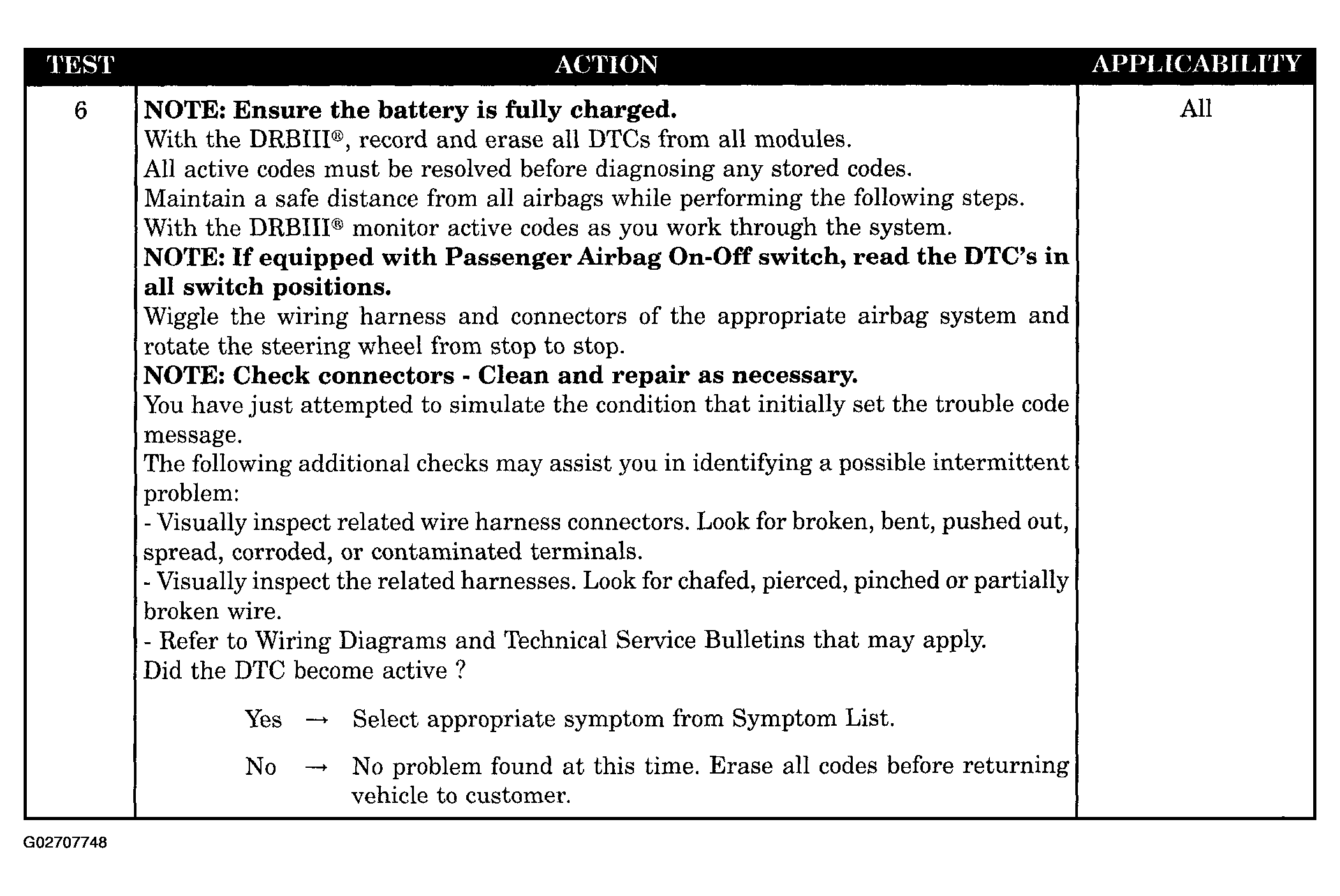

Fig 3: Loss Of Ignition Run - Start - Diagnostic Procedure (3 Of 3)
G02707748Courtesy of DAIMLERCHRYSLER CORP.
