Diagnostic Procedure

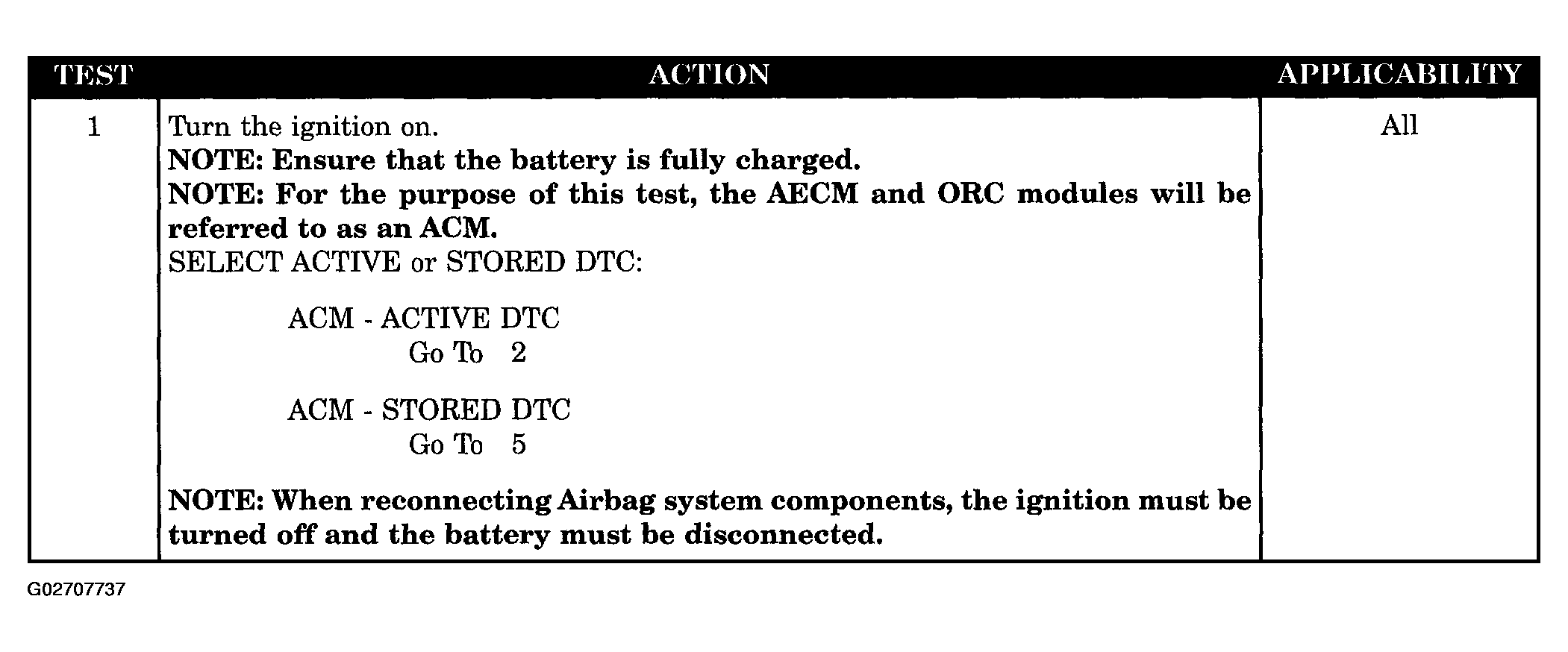

Fig 1: Driver Squib 2 Circuit Short - Diagnostic Procedure (1 Of 3)
G02707737Courtesy of DAIMLERCHRYSLER CORP.

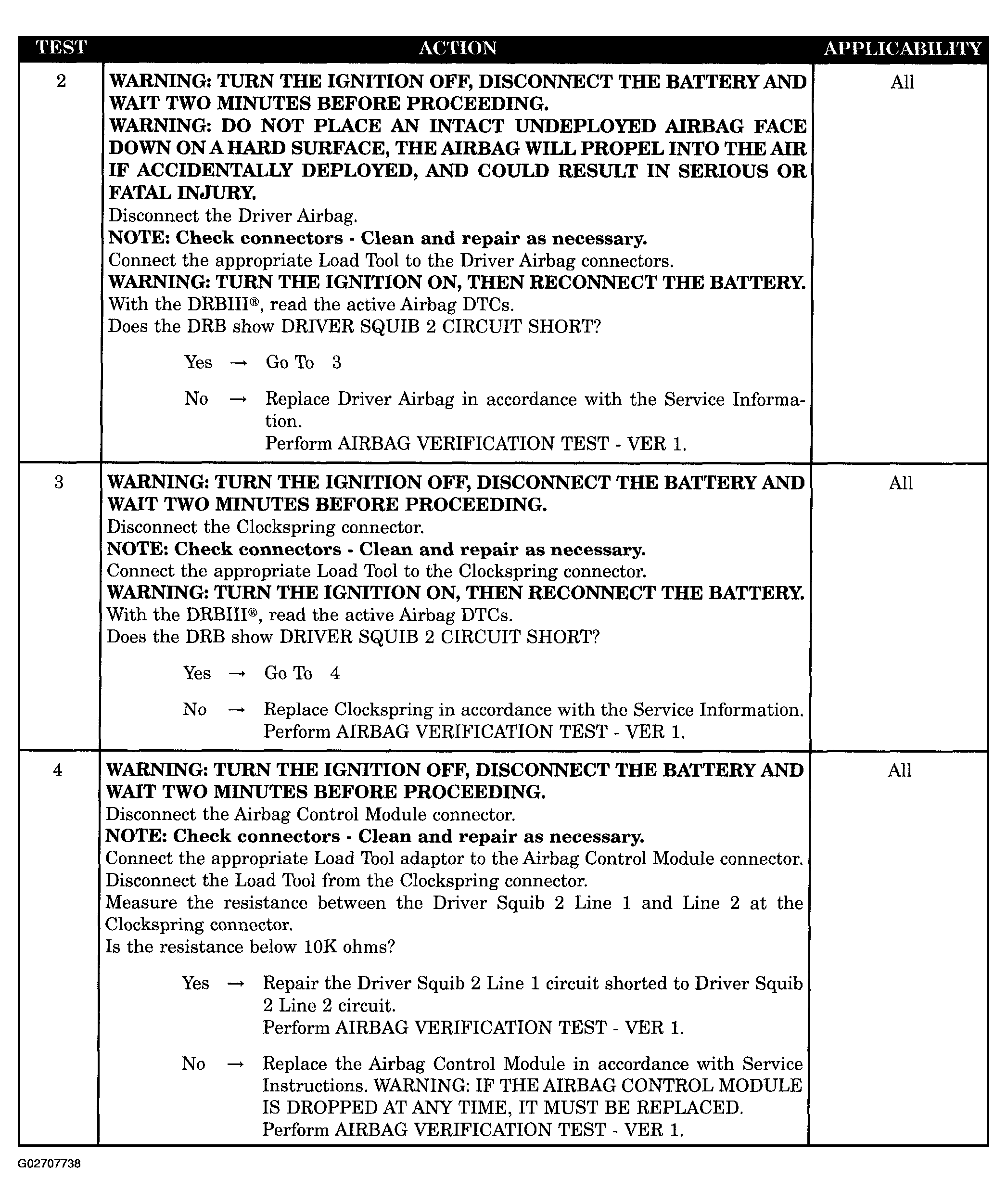

Fig 2: Driver Squib 2 Circuit Short - Diagnostic Procedure (2 Of 3)
G02707738Courtesy of DAIMLERCHRYSLER CORP.

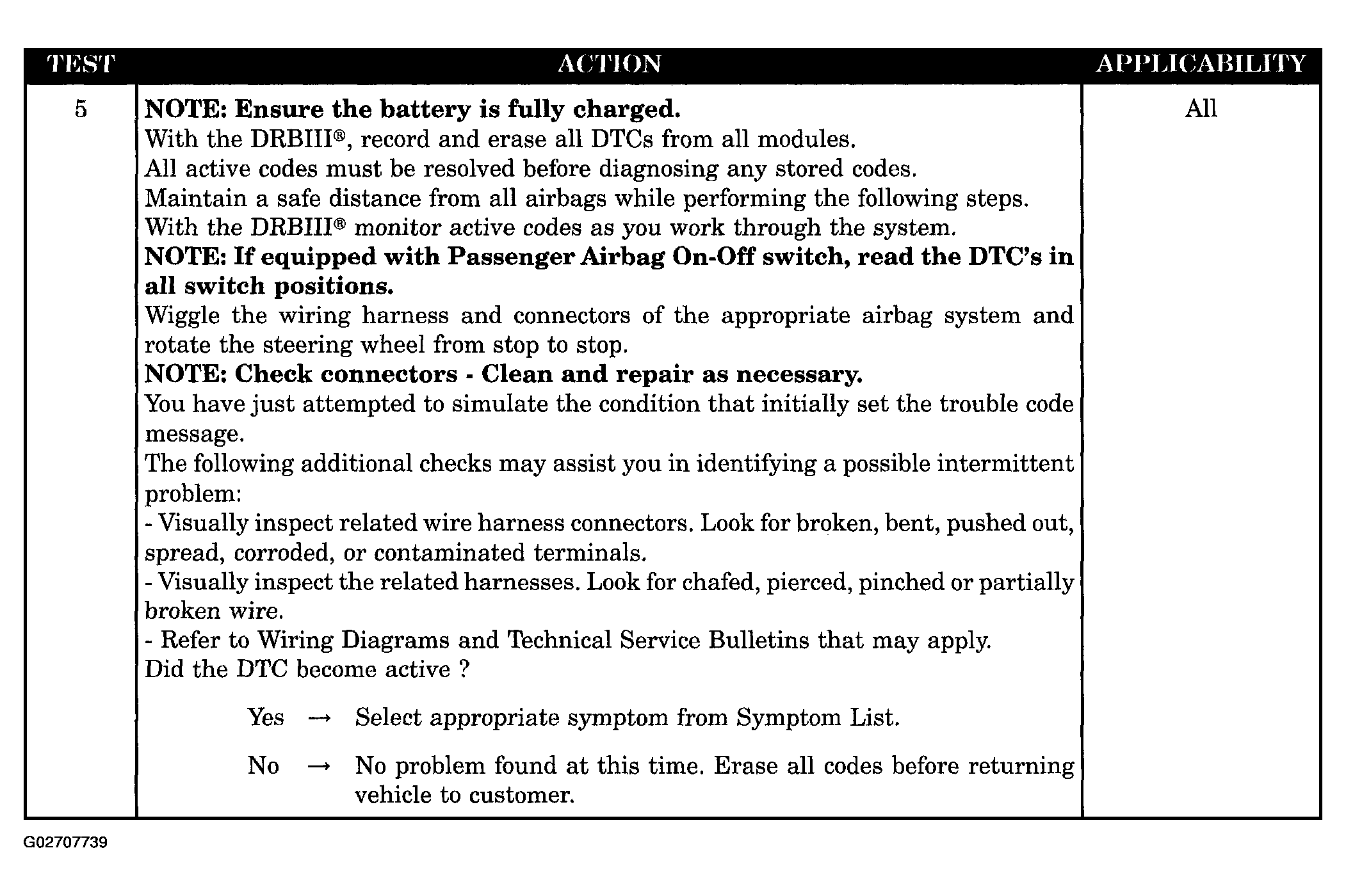

Fig 3: Driver Squib 2 Circuit Short - Diagnostic Procedure (3 Of 3)
G02707739Courtesy of DAIMLERCHRYSLER CORP.
