Tire Pressure Monitor Module (TPM)

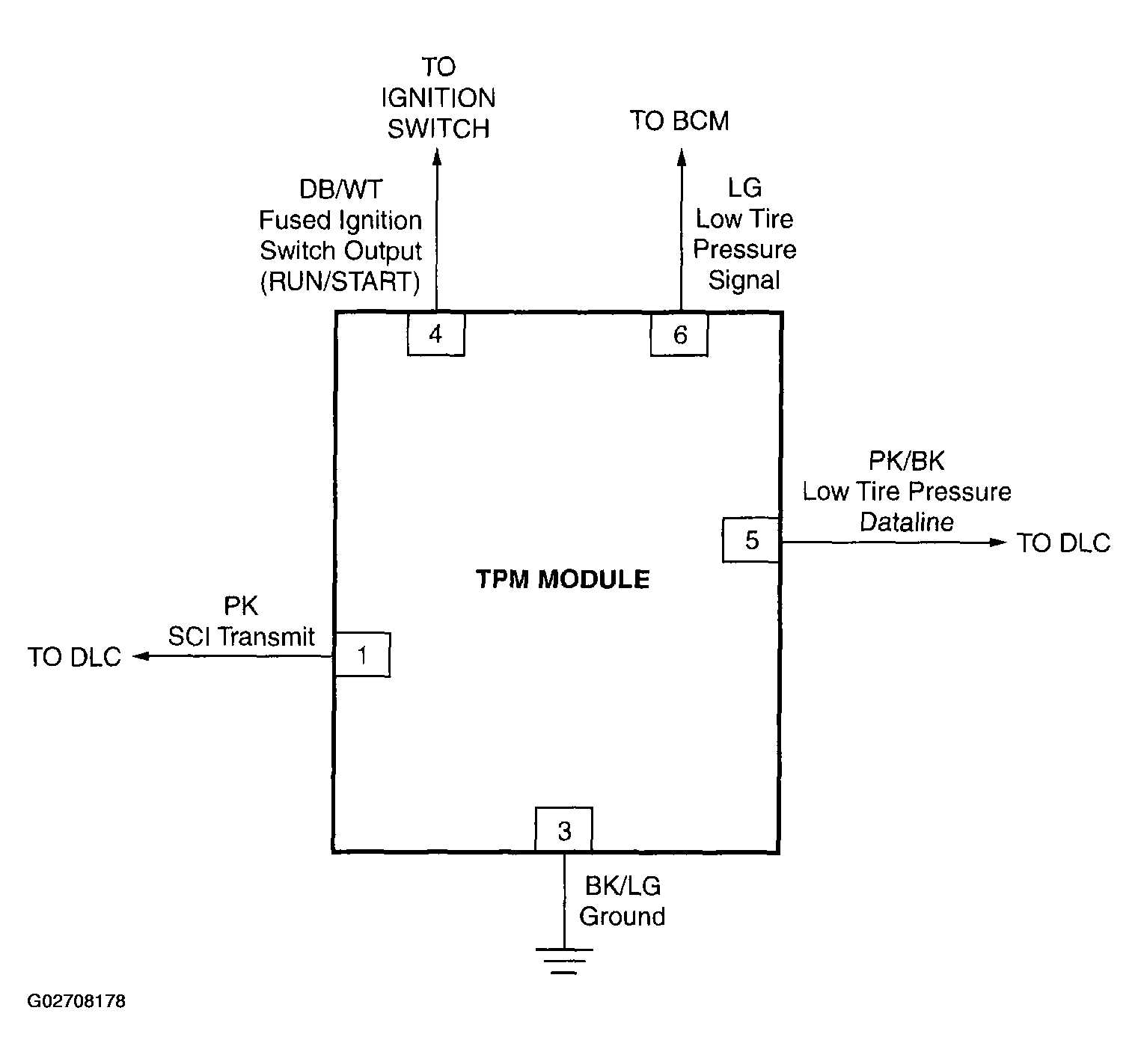

Fig 1: Tire Pressure Monitor Module (TPM) Schematic Diagram
G02708178Courtesy of DAIMLERCHRYSLER CORP.

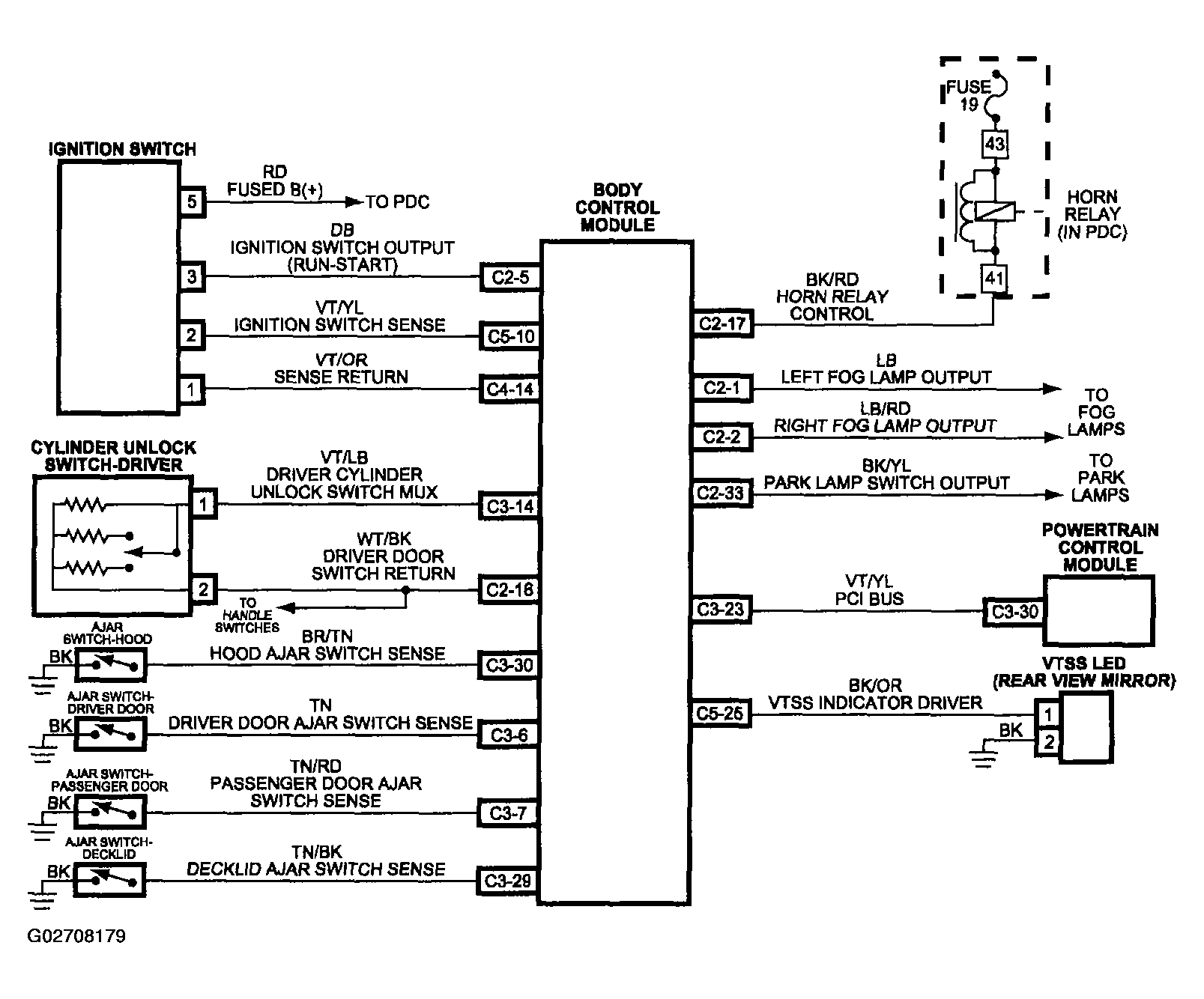

Fig 2: Vehicle Theft Security System Schematic Diagram
G02708179Courtesy of DAIMLERCHRYSLER CORP.
