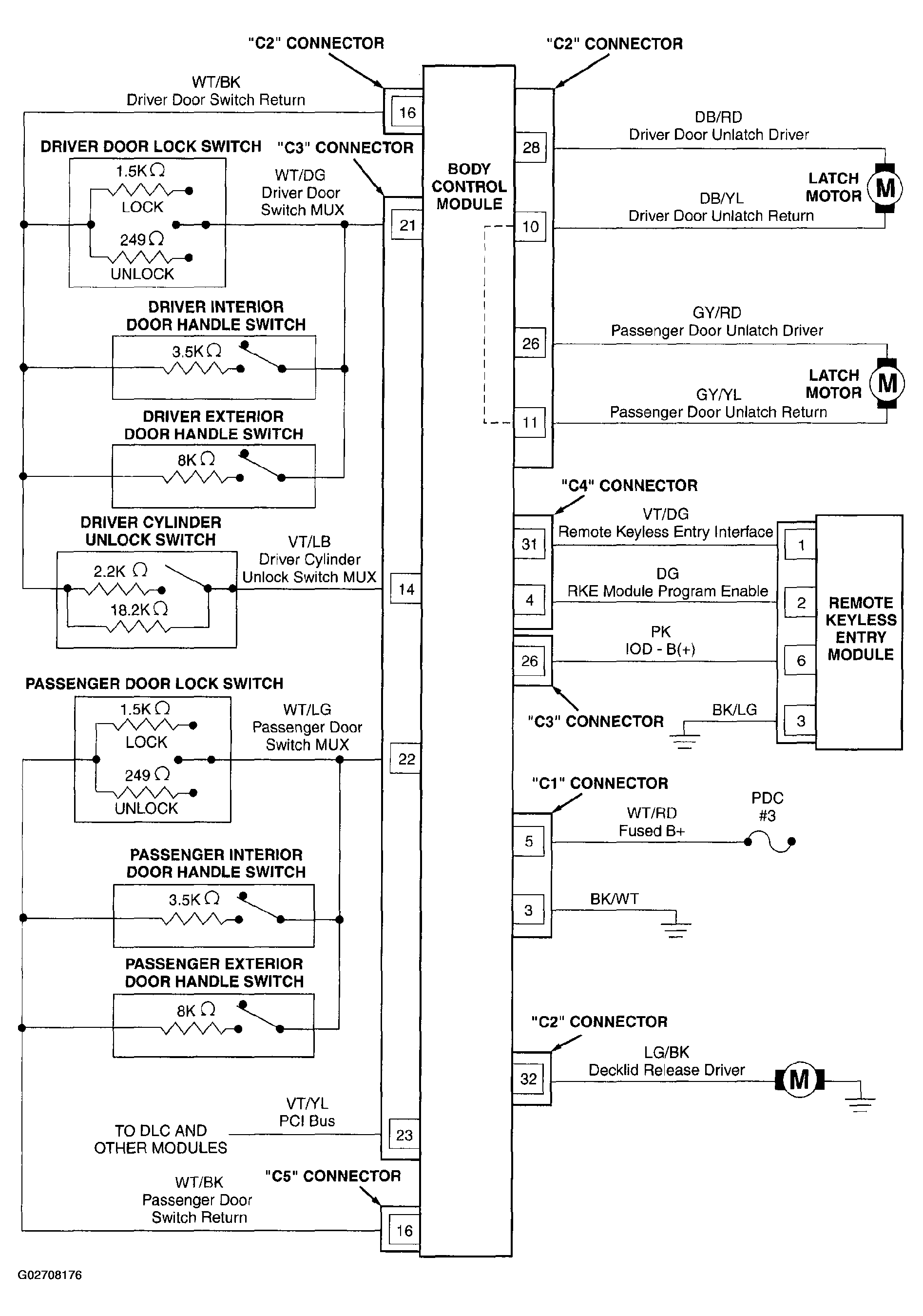

Home >> Dodge and Ram >> 2003 >> Viper >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Connector PINOUTS >> Schematic Diagrams >> Power Door Locks/RKE
