Schematic Diagrams: Communication

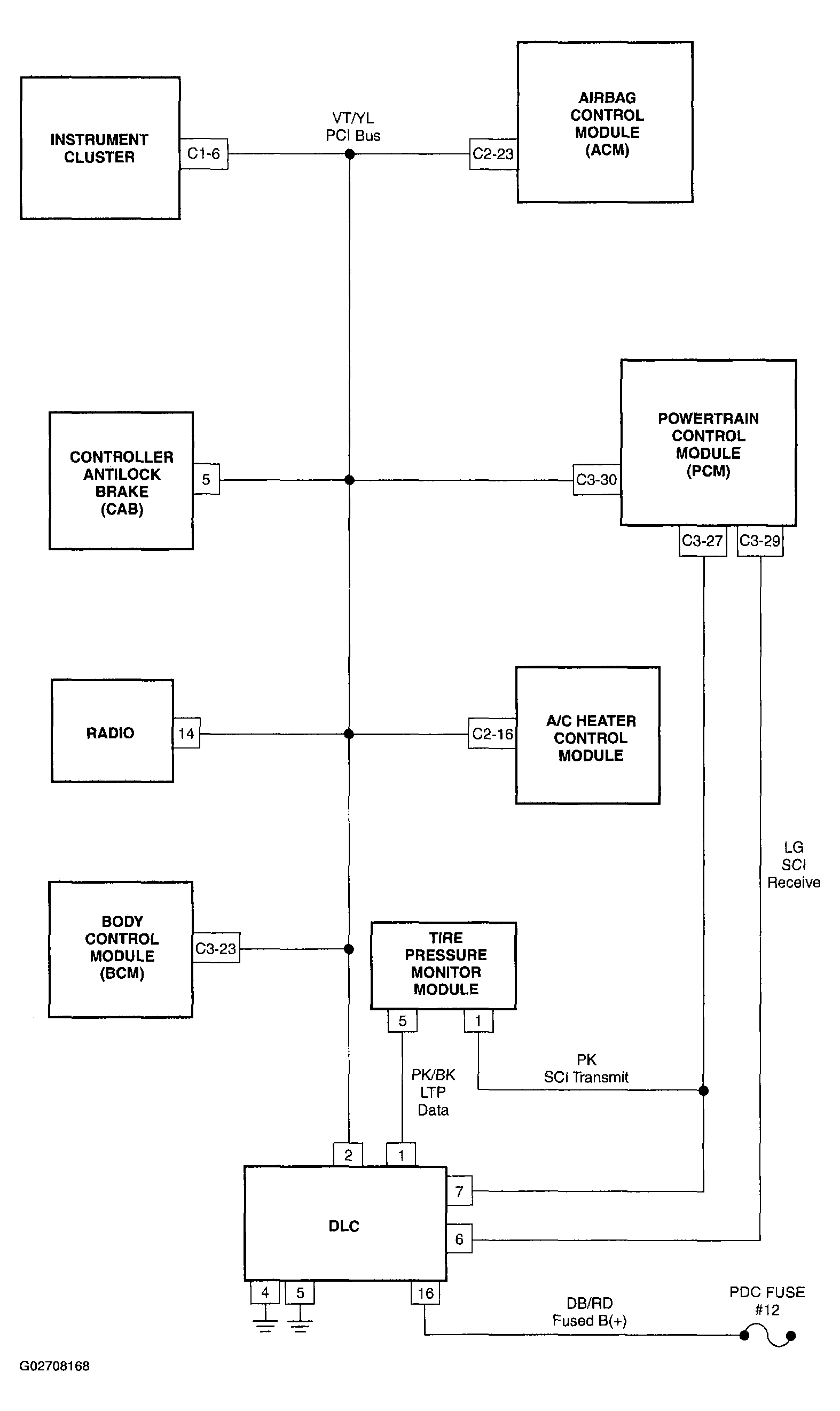

Fig 1: Communication Schematic Diagram

G02708168

Courtesy of DAIMLERCHRYSLER CORP.
