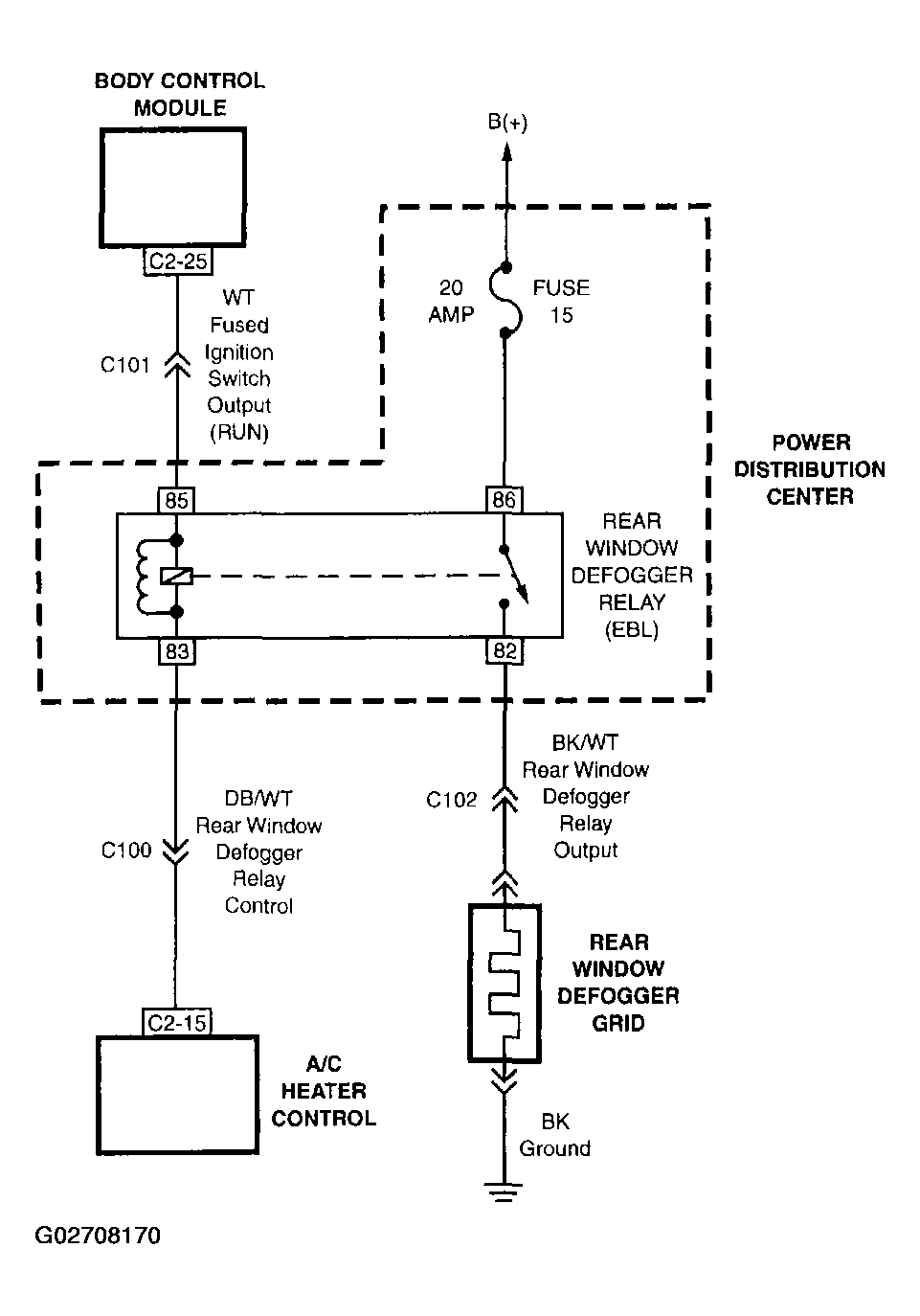

Home >> Dodge and Ram >> 2003 >> Viper >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Connector PINOUTS >> Schematic Diagrams >> 10.6 Electrically Heated Systems >> 10.6.1 Rear Window Defogger System
