Airbag System
Airbag System

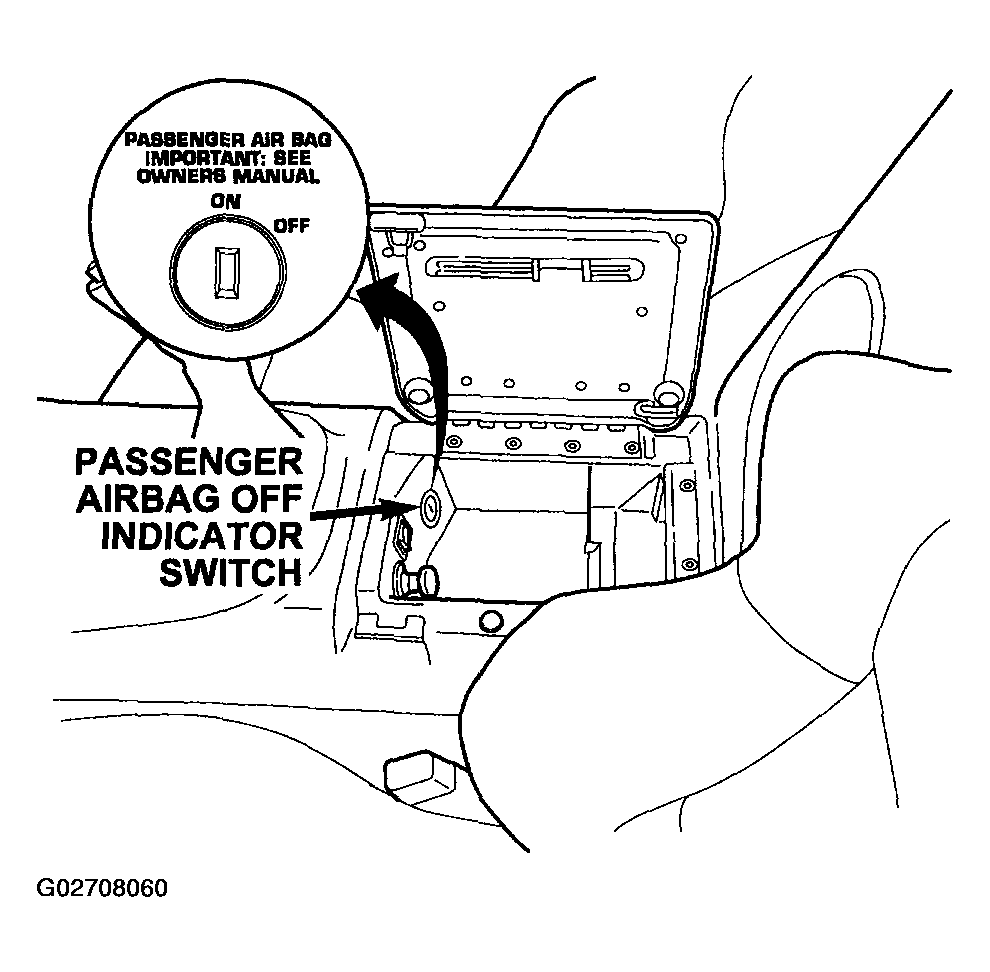

Fig 1: Identifying Airbag System Components (1 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

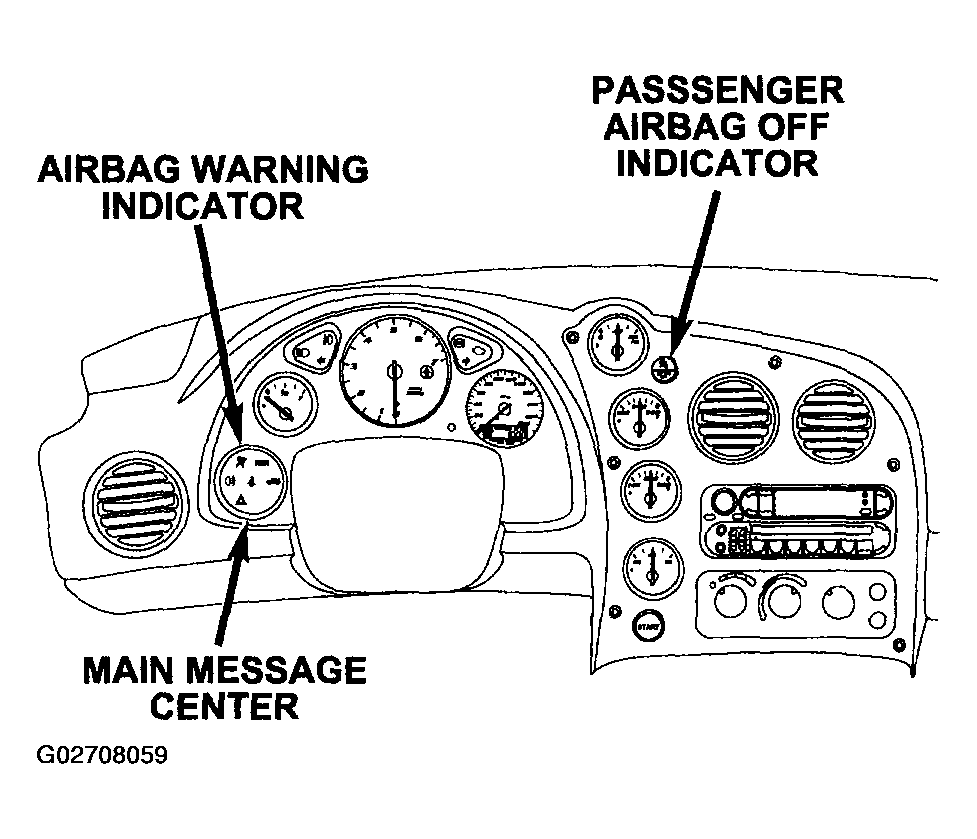

Fig 2: Identifying Airbag System Components (2 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

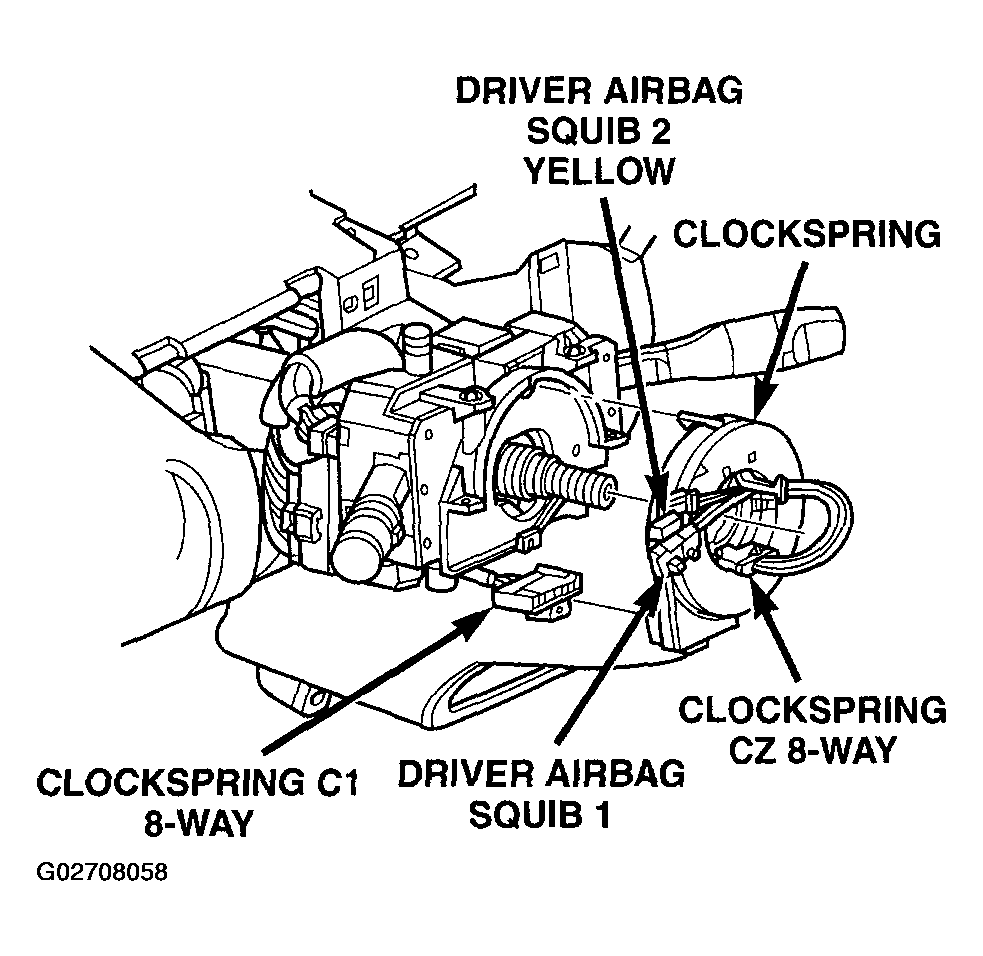

Fig 3: Identifying Airbag System Components (3 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

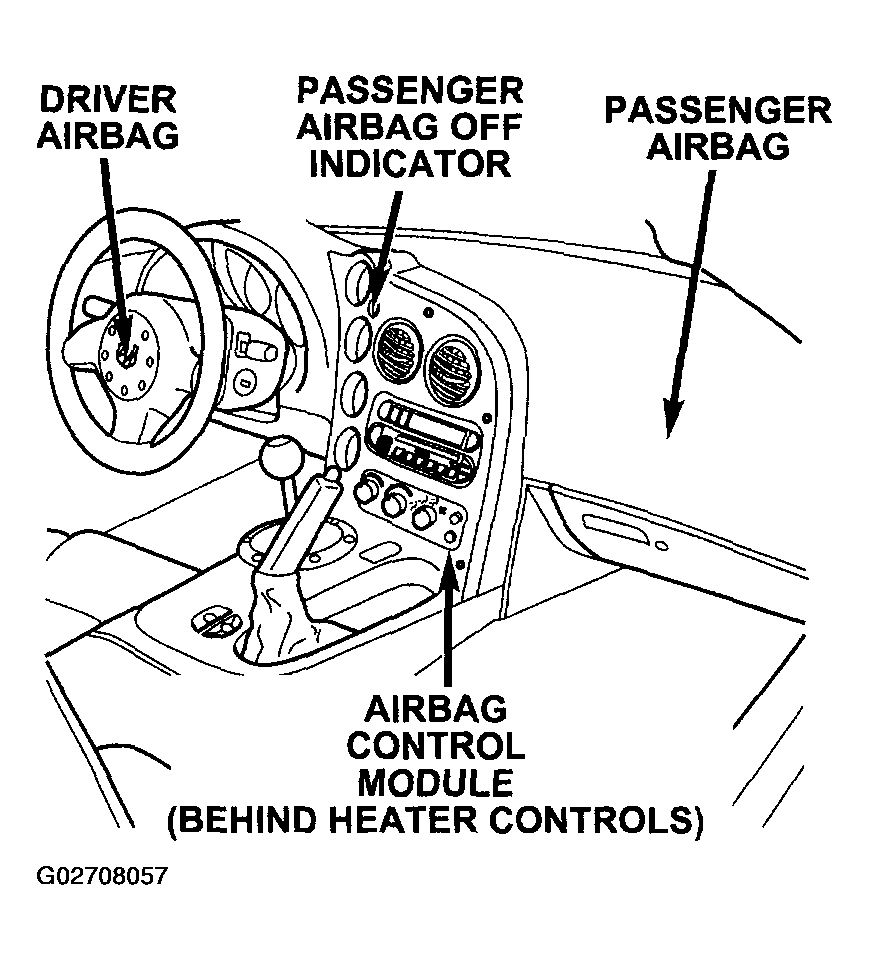

Fig 4: Identifying Airbag System Components (4 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

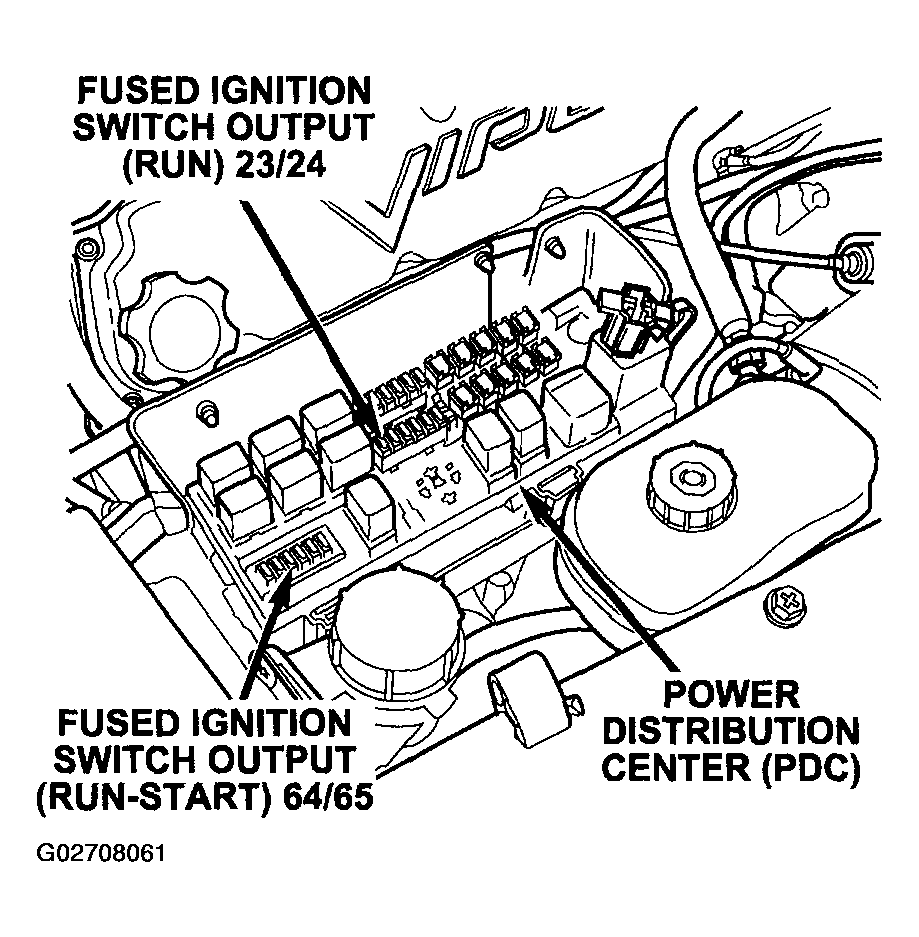

Fig 5: Identifying Airbag System Components (5 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

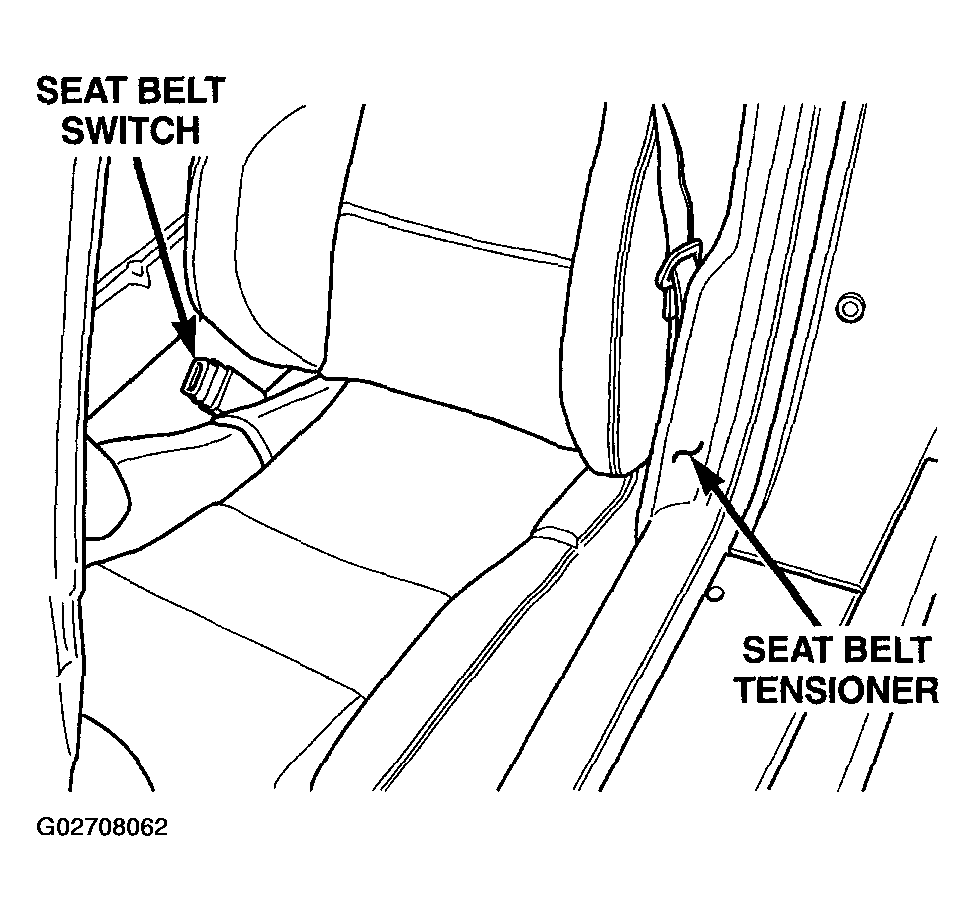

Fig 6: Identifying Airbag System Components (6 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
