Disc Brake Caliper Guide Pins - Front (SRT-4): Removal
- Raise the vehicle.
- Remove the front tire and wheel assembly.

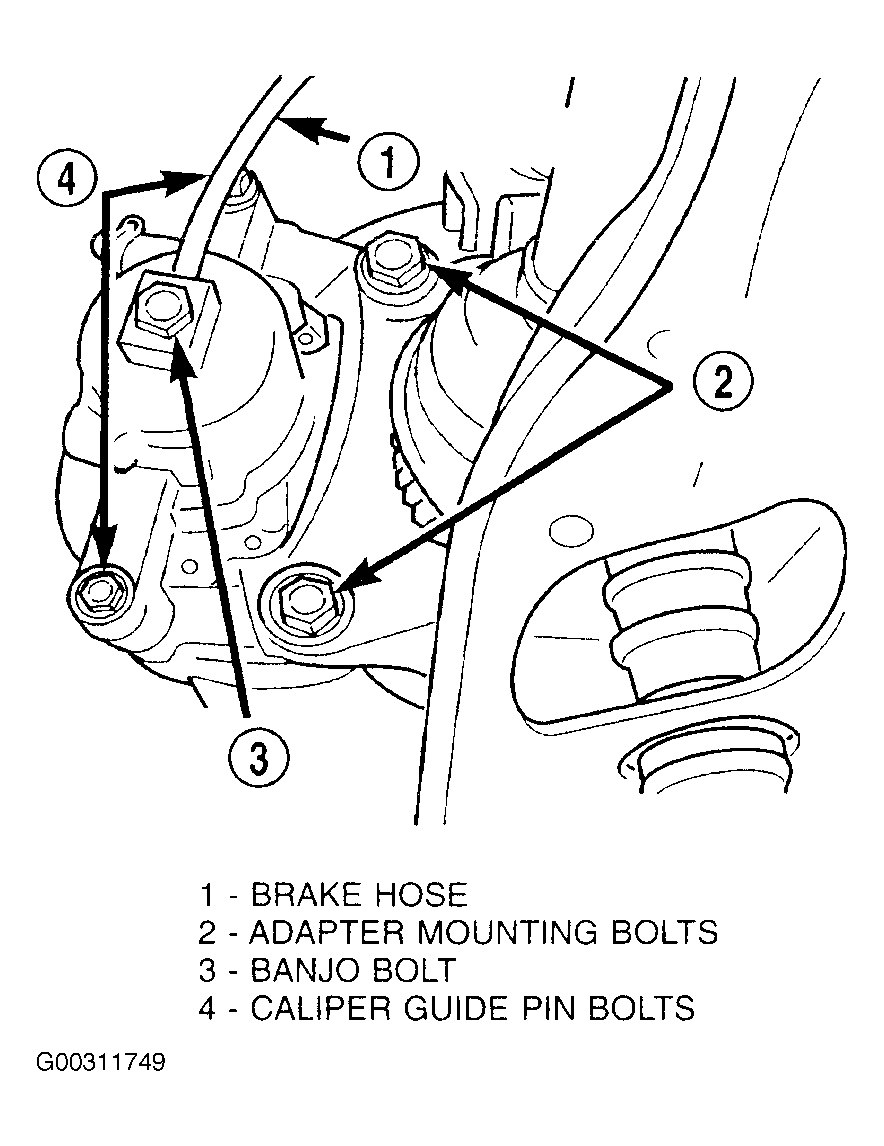

- Remove the 2 brake caliper guide pin bolts. See Figure.
- Remove the disc brake caliper from the disc brake caliper adapter and hang it out of the way using wire or a bungee cord. Use care not to overextend the brake hose when doing this.

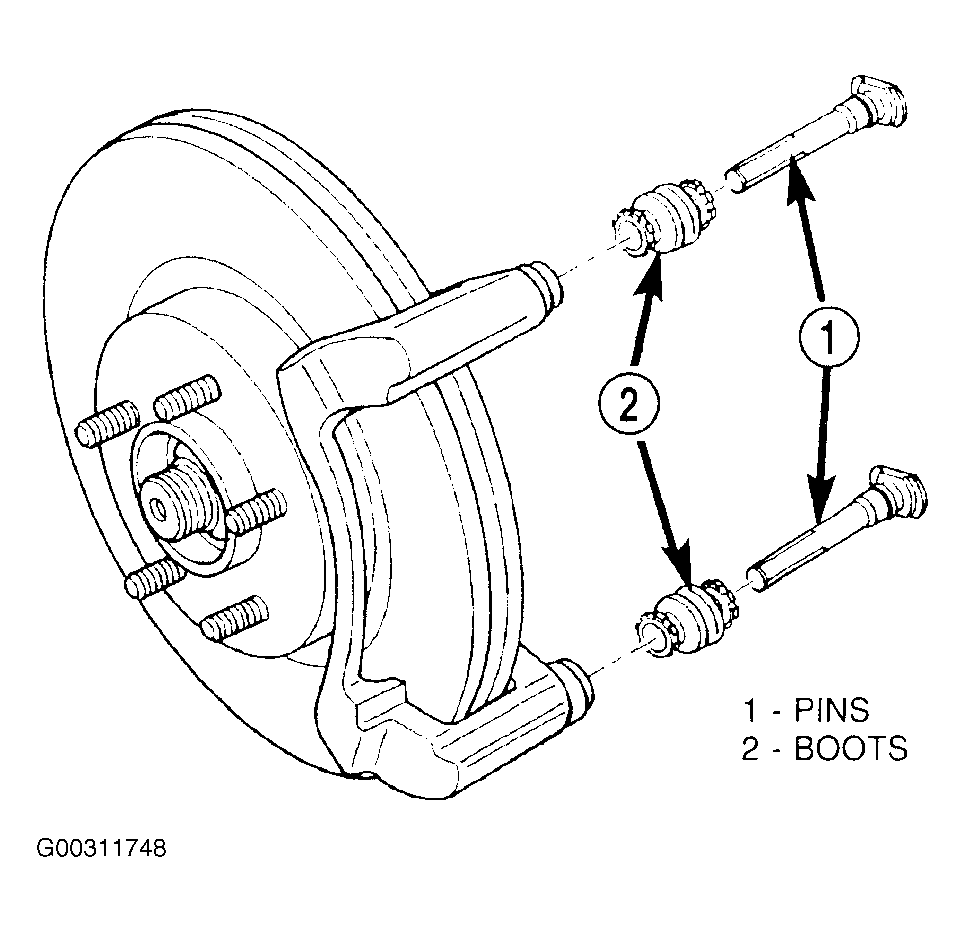

- Remove the guide pins and boots from the adapter. See Figure.
