Rotors (SRT-4)

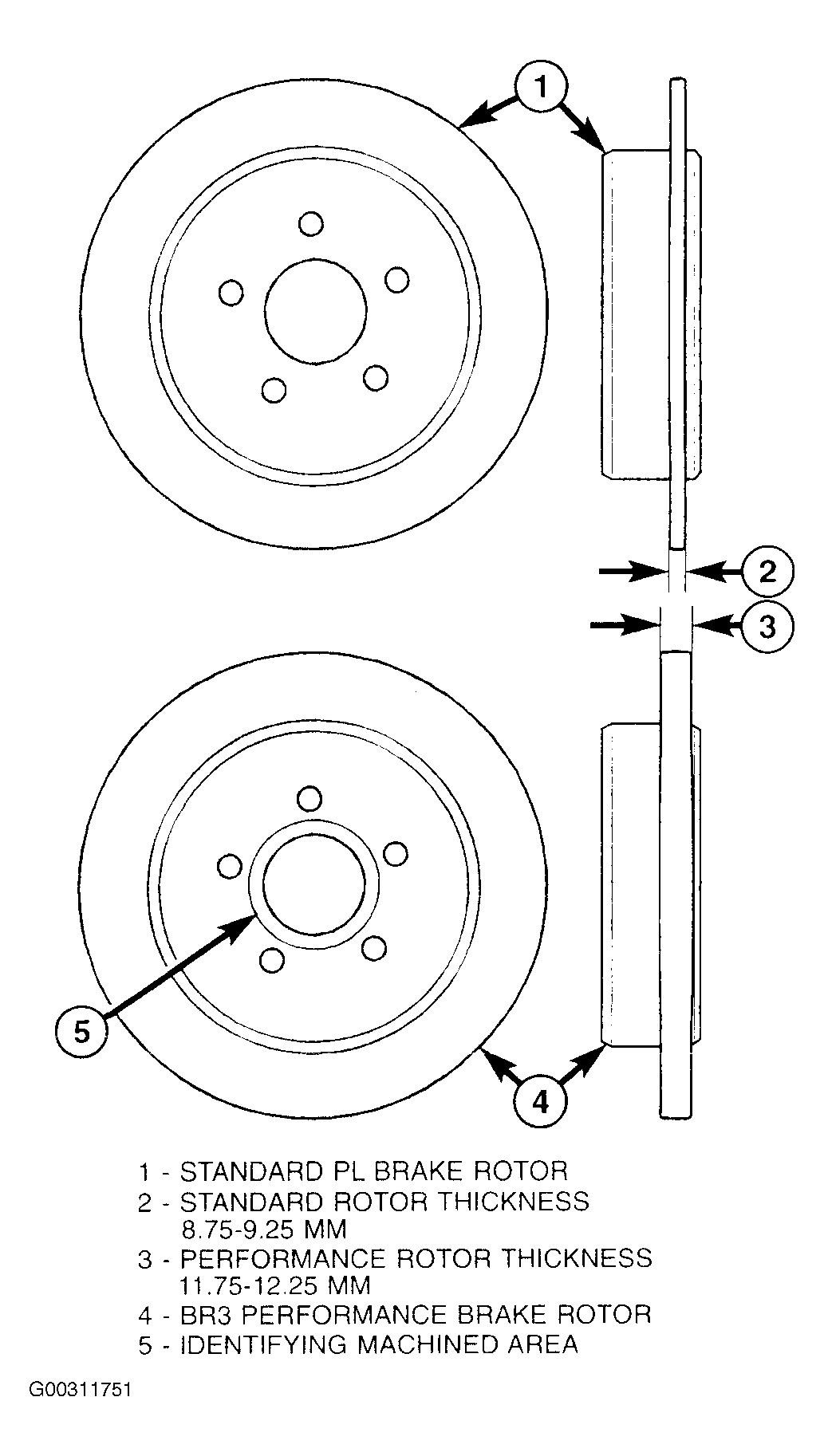

Vehicles equipped with the brake sales code BR3 (performance disc/drum brake combination) use heavier brake rotors. The BR3 front brake rotor is approximately .24" (6 mm) thicker than the standard front brake rotor. The BR3 rear brake rotor is approximately .12" (3 mm) thicker than the standard rear brake rotor. The BR3 brake rotors can be easily identified by the recessed machined area near the hub center. See Figure.
