Accessory Switch Bezel: Installation

The accessory switches are not serviced separately, but the cigar lighter/power outlet is and must be transferred to the new bezel. Refer to POWER OUTLET REMOVAL AND INSTALLATION .

  1. Connect the harness connectors to the following:
    • Cigar Lighter/Power Outlet
    • Rear Window Defogger Switch (if equipped)
  2. Install the four screws retaining the accessory switch bezel.
  3. Install the instrument panel center bezel. Refer to INSTRUMENT PANEL CENTER BEZEL .

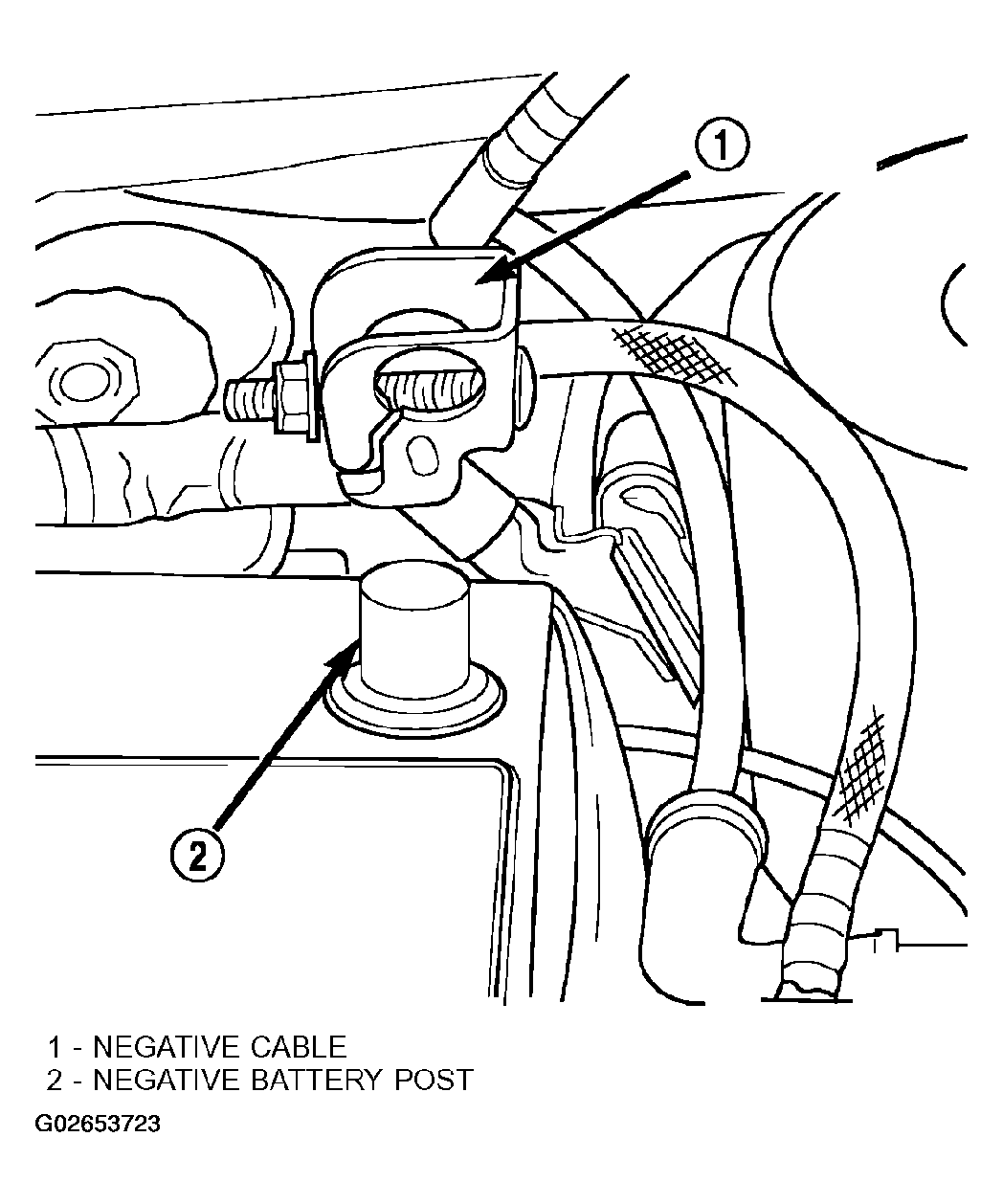

  4. Connect the battery negative cable (Figure).
