Symptom: HOOD AJAR SWITCH MISSING (EXPORT ONLY): Testing

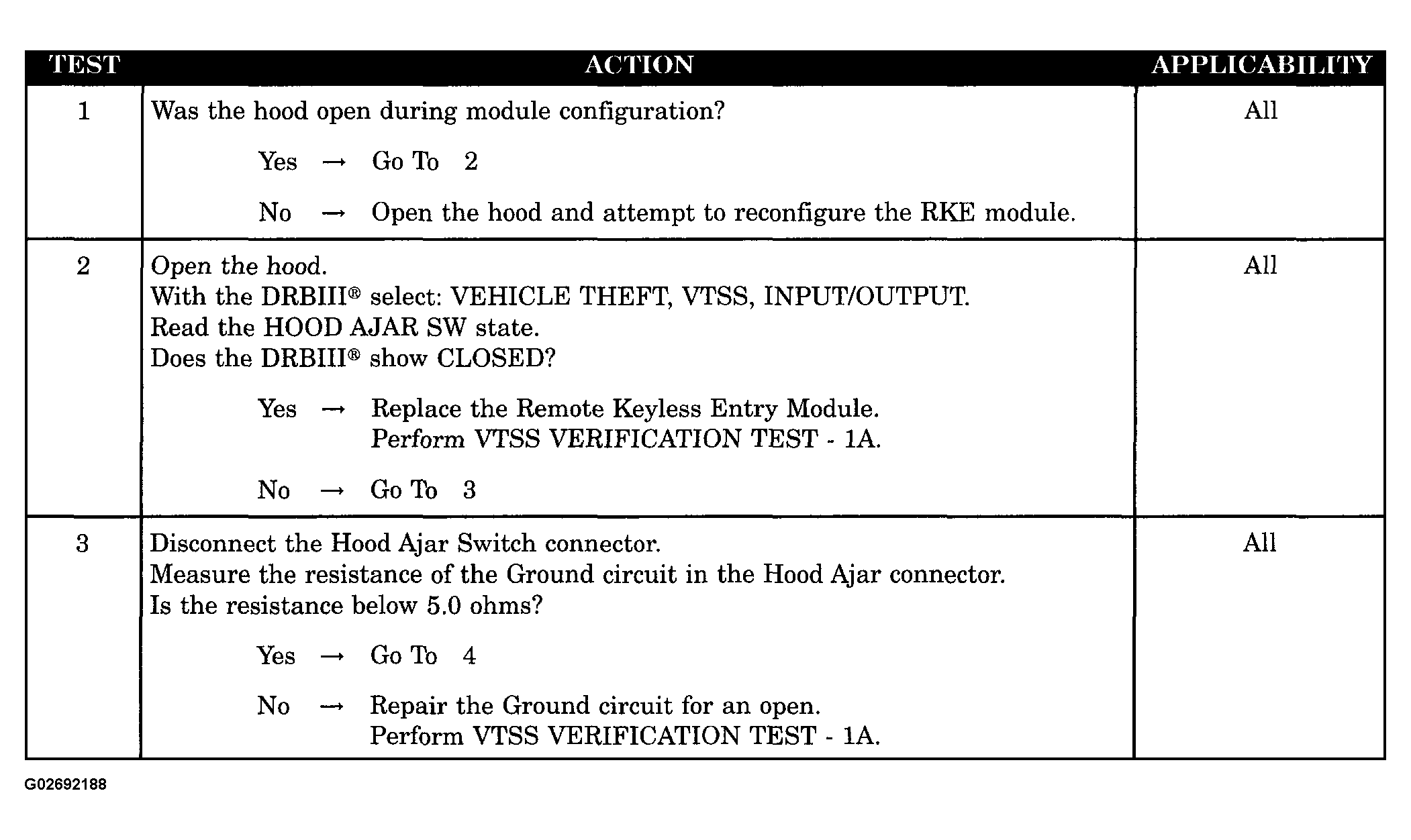

Fig 1: Testing Hood Ajar Switch Missing - Export Only (1 Of 2)
G02692188Courtesy of DAIMLERCHRYSLER CORP.

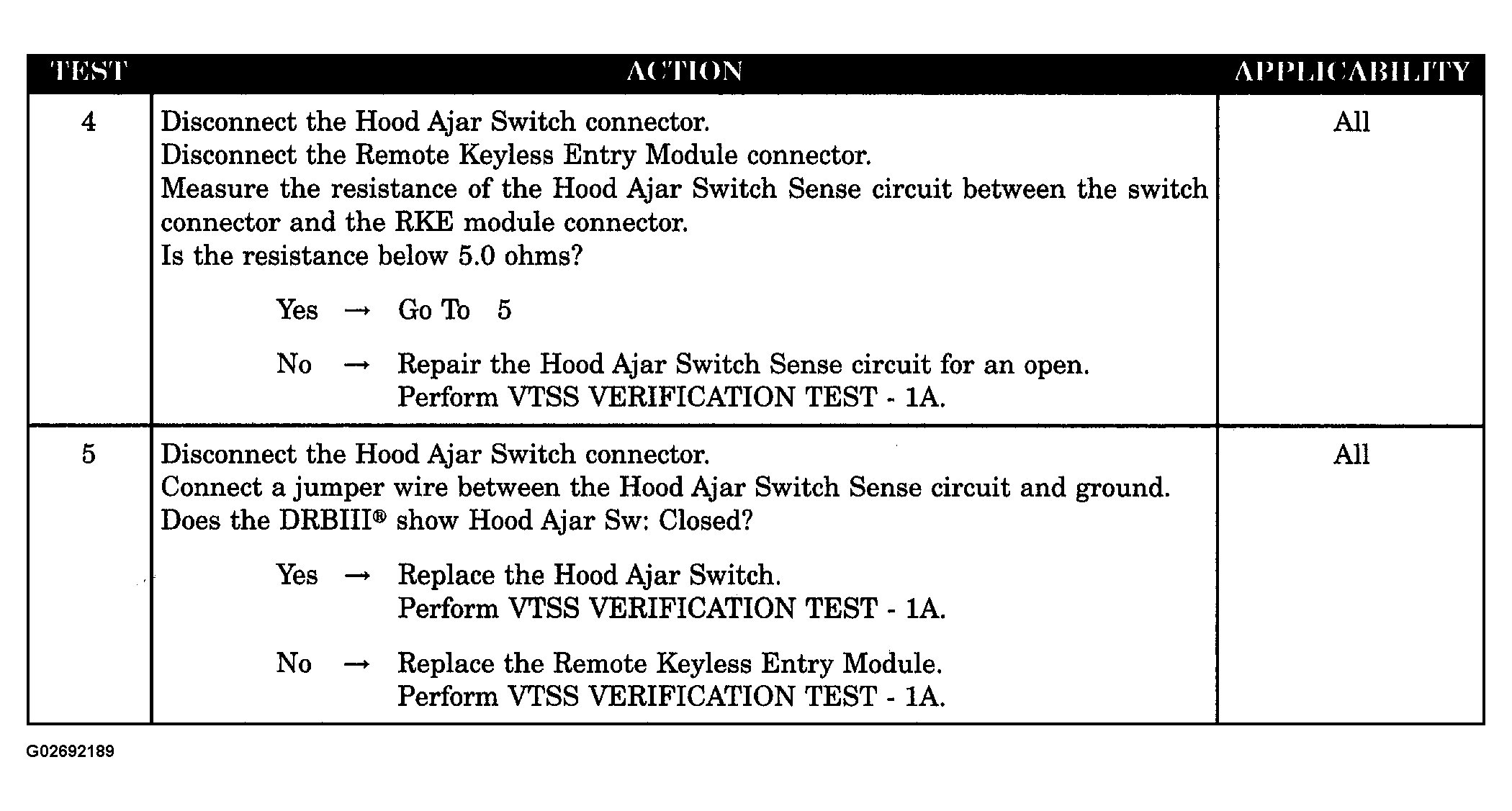

Fig 2: Testing: Hood Ajar Switch Missing - Export Only (2 Of 2)
G02692189Courtesy of DAIMLERCHRYSLER CORP.
