Symptom: *VTSS SIREN INOPERATIVE (EXPORT ONLY): Testing

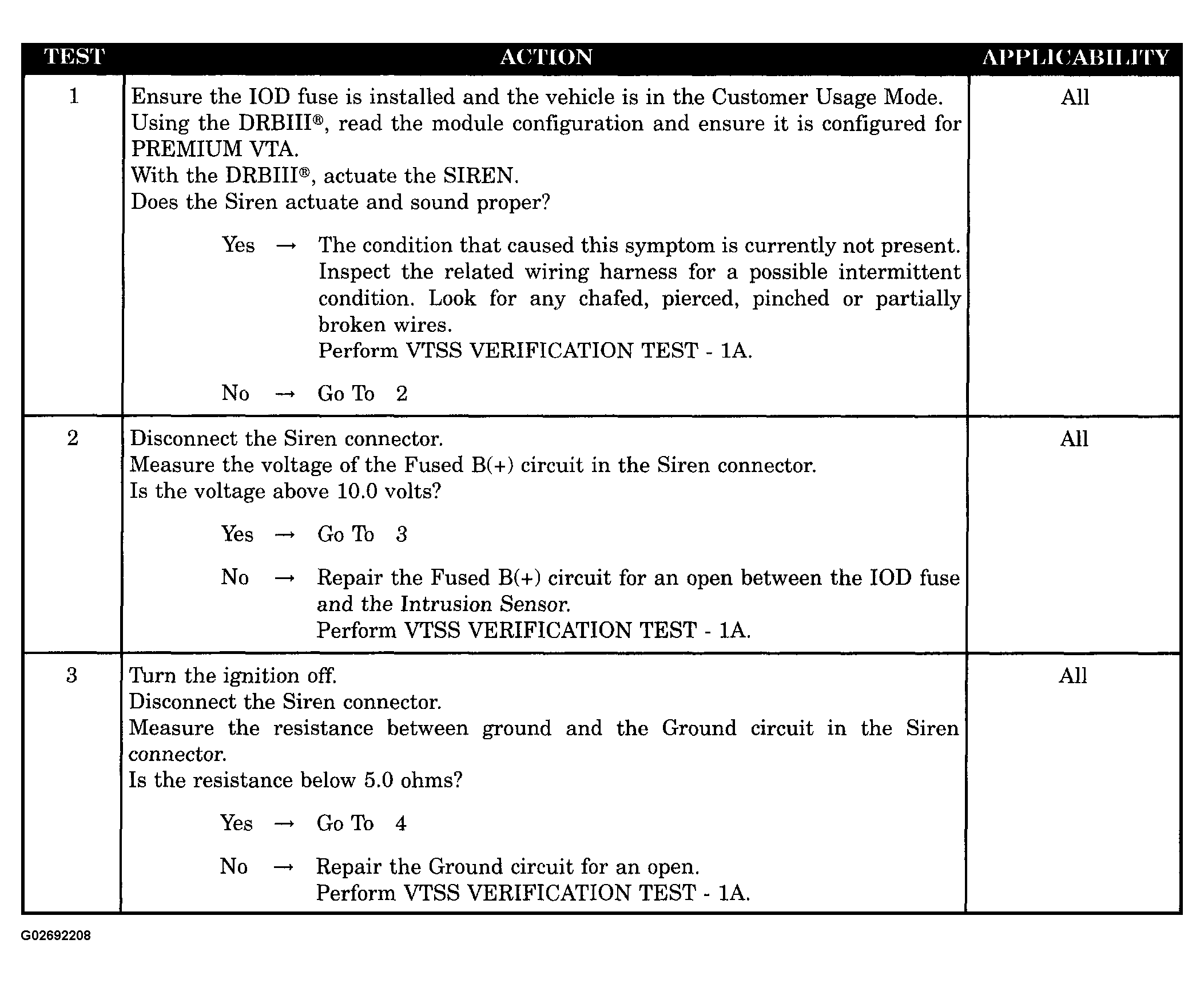

Fig 1: Testing VTSS Siren Inoperative-Export Only (1 Of 2)
G02692208Courtesy of DAIMLERCHRYSLER CORP.

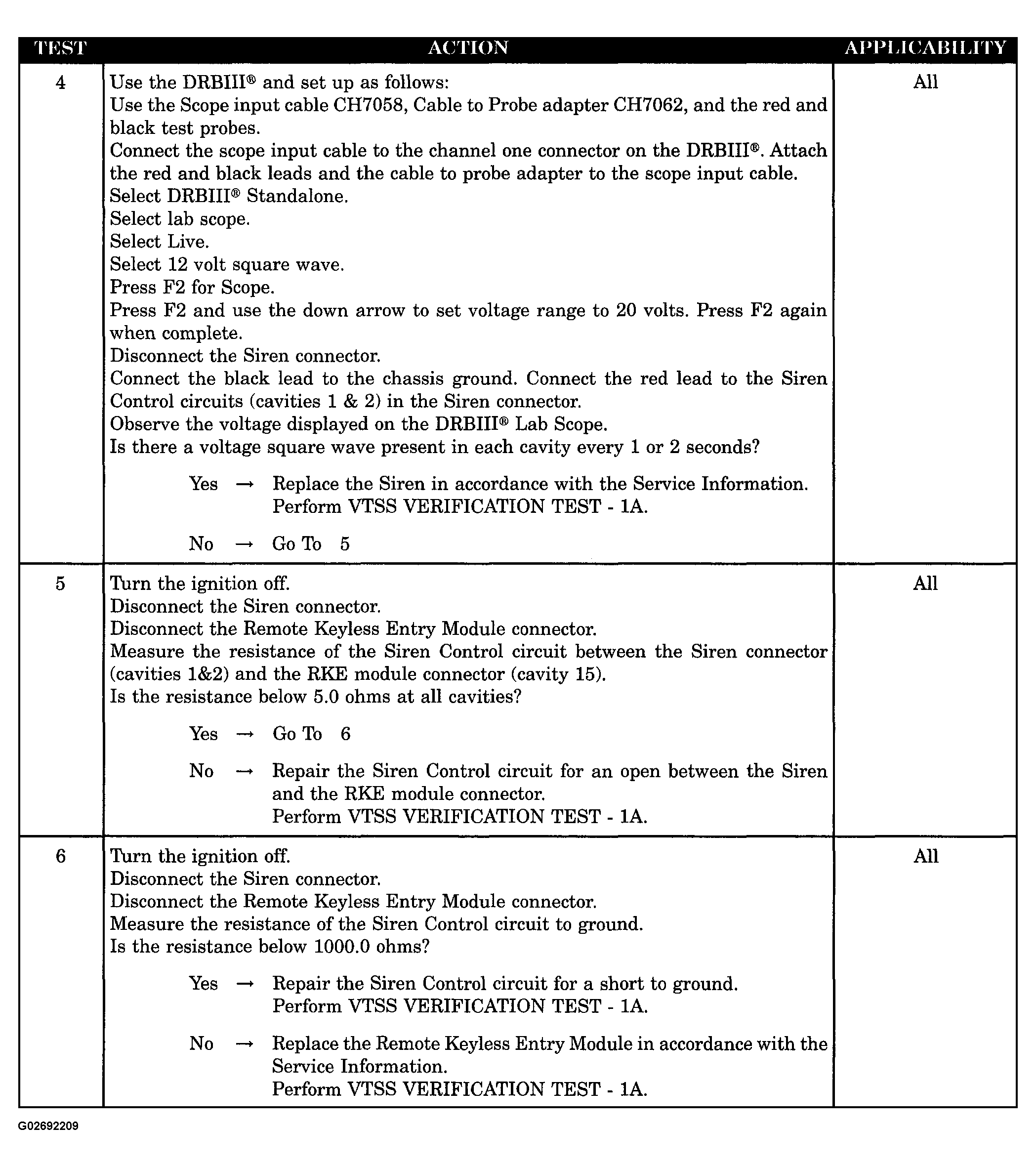

Fig 2: Testing VTSS Siren Inoperative-Export Only (2 Of 2)
G02692209Courtesy of DAIMLERCHRYSLER CORP.
