Symptom: *VTSS INDICATOR STAYS ON STEADY DURING ARMING: Testing

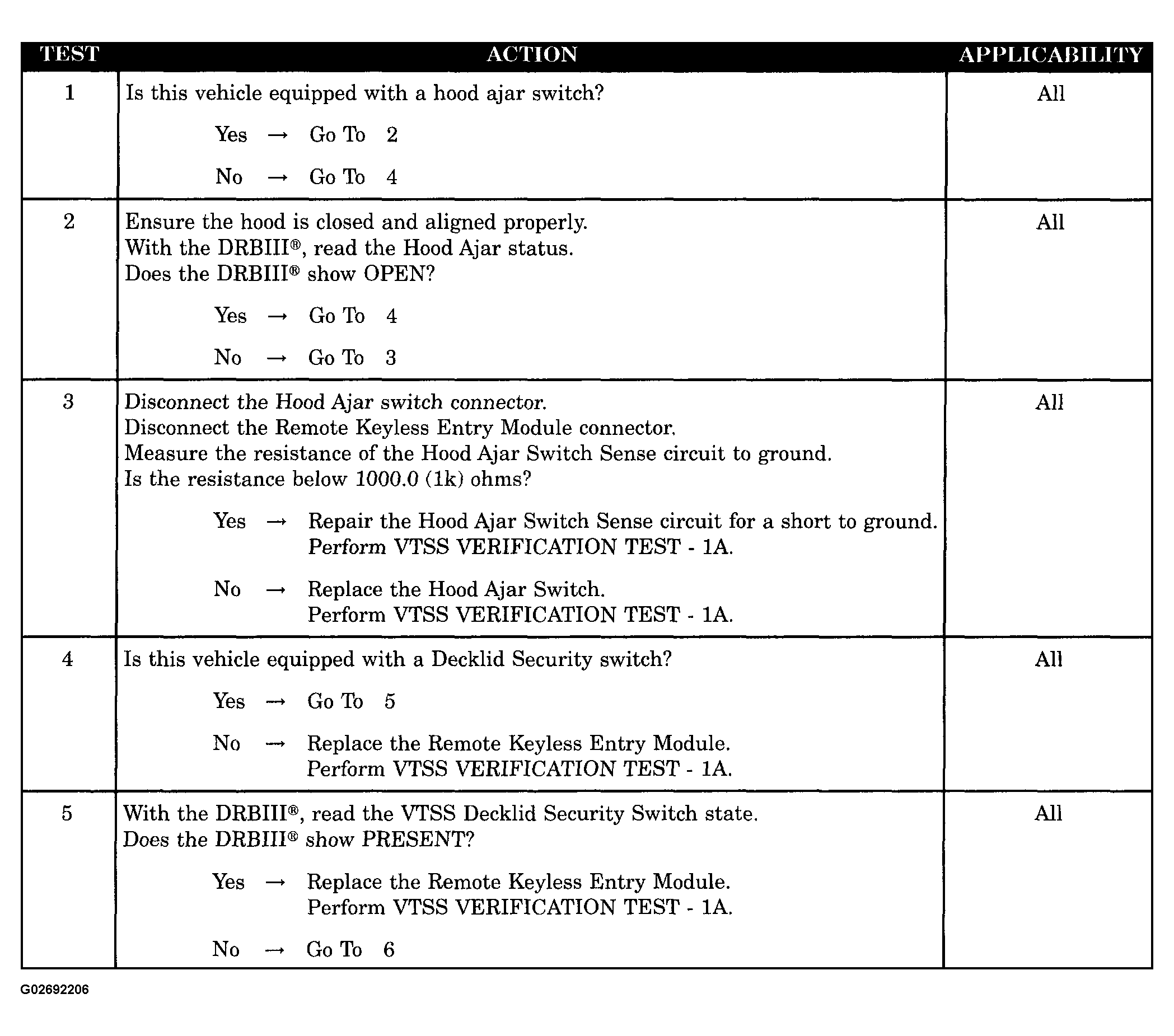

Fig 1: Testing VTSS Indicator Stays On Steady During Arming (1 Of 2)
G02692206Courtesy of DAIMLERCHRYSLER CORP.

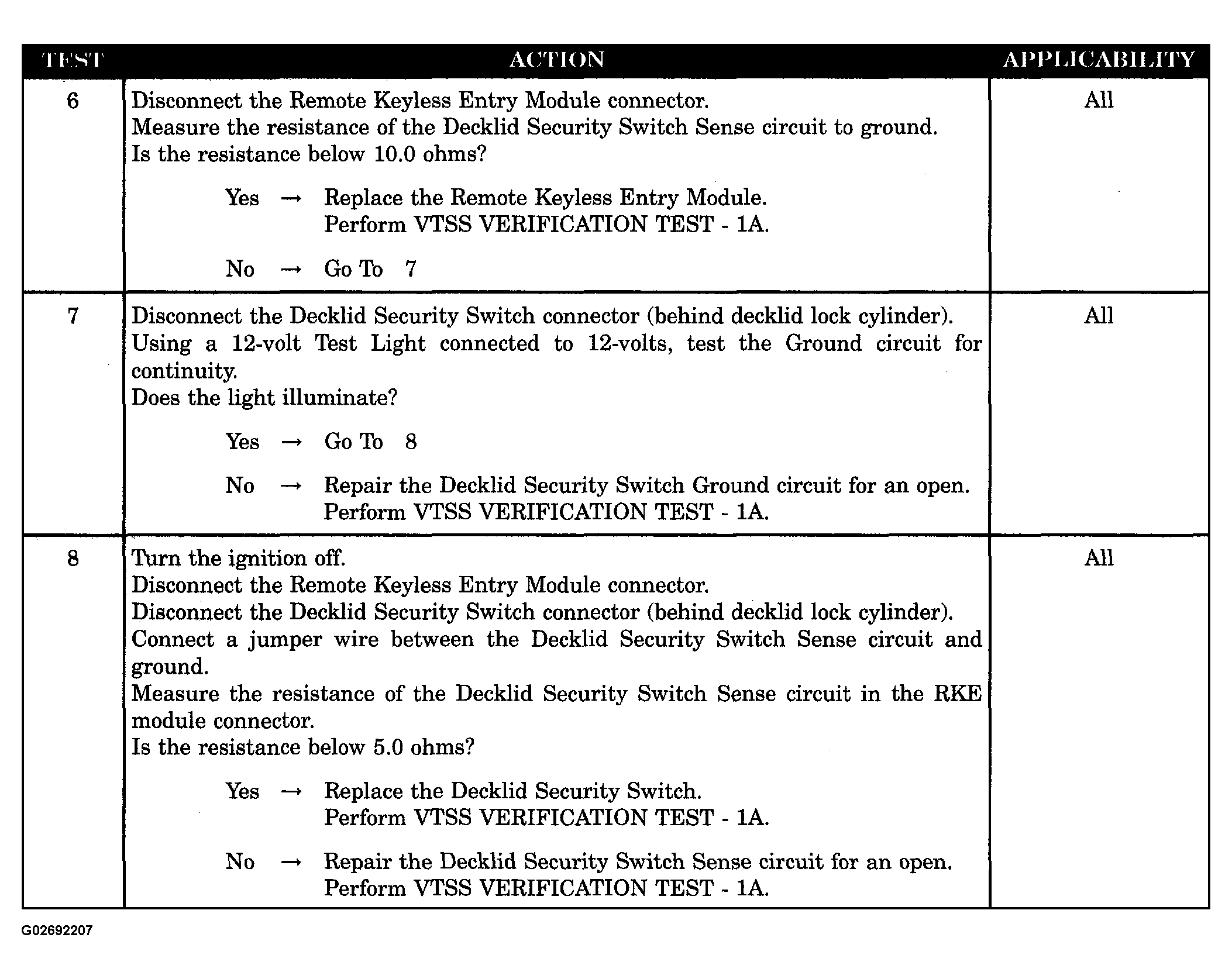

Fig 2: Testing VTSS Indicator Stays On Steady During Arming (2 Of 2)
G02692207Courtesy of DAIMLERCHRYSLER CORP.
